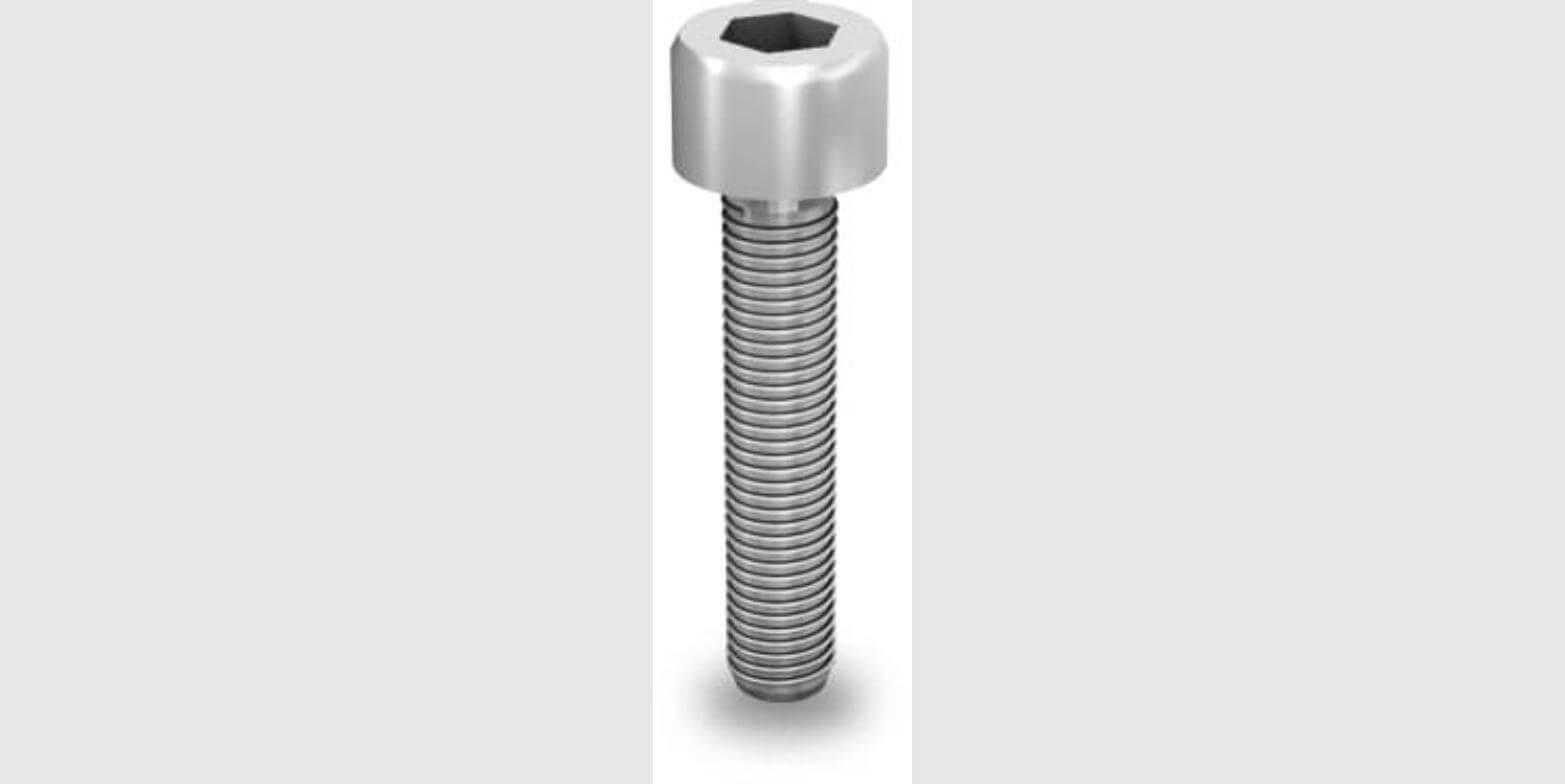

K2 cylinder head bolt M8x55
| Manufacturer Art. No.: | 2002184 |
|---|---|
| Art. Nr.: | 16322 |
| Pieces per package unit: |
|
| Product type: | Screws |
Prices are only visible to business customers upon successful registration.
Product number:
16322
Description
K2 cylinder head bolt M8x55
The M8 x 55 cylinder head bolt from K2 Systems, compliant with ISO 4762, securely fastens components of your PV mounting system together. The under-head serrations engage with the contact surface and secure the connection against accidental loosening – you do not need an additional lock washer. Material: A2 stainless steel, SW6 hex socket drive.
Your benefits
- Under-head serrations – secure the connection positively against loosening
- M8 to ISO 4762 – standardised dimension, predictable spare parts procurement
- A2 stainless steel – corrosion-resistant for continuous outdoor use
- Hex socket SW6 – high torque transmission, no slippage
- Head diameter 13 mm – compact contact area even at tight connection points
- Sales unit: 100 pieces
Order now
Order the K2 cylinder head bolt M8 x 55 directly here in the Memodo Shop – sold in packs of 100.
Examples of use
- Fastening of add-on parts and adaptors for the K2 mounting system
- Connections that do not require additional locking elements
- Replacement and retrofitting requirements for existing systems
Technical data
- Head shape: Cylindrical head
- Head diameter: 13 mm
- Thread: M8
- Length: 55 mm
- Standard: ISO 4762
- Material: A2 stainless steel
- Drive: Hex socket SW6
- Underside teeth: yes
- Sales unit: 100 pieces
- Carton: 100 pieces
- Pallet: 28,800 pieces
- Weight per piece: 0.027 kg
- Manufacturer’s item number: 2002184
