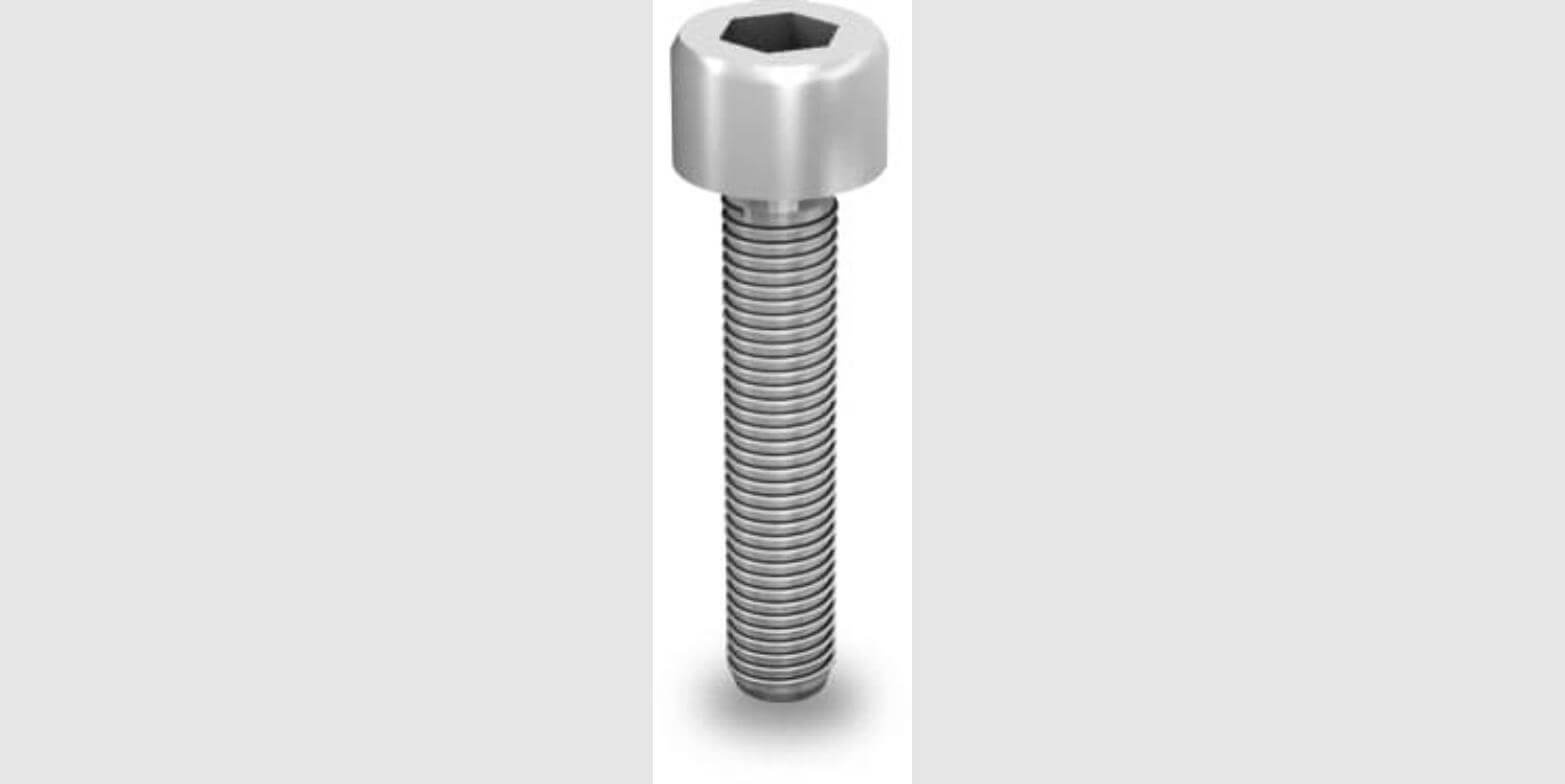

K2 cylinder head bolt, M8x60, with undercut threads
| Manufacturer Art. No.: | 2001734 |
|---|---|
| Art. Nr.: | 16320 |
| Pieces per package unit: |
|
| Product type: | Screws |
Prices are only visible to business customers upon successful registration.
Product number:
16320
Description
K2 M8x60 cylinder head bolt with undercut threads
The M8 x 60 cylinder head bolt from K2 Systems, compliant with ISO 4762, securely fastens components of your PV mounting system together. The underhead serrations engage with the contact surface and secure the connection against accidental loosening – you do not need an additional lock washer. Material: A2 stainless steel, SW6 hex socket drive.
Your benefits
- Under-head serrations – secure the connection positively against loosening
- M8 to ISO 4762 – standardised dimension, predictable spare parts procurement
- A2 stainless steel – corrosion-resistant for continuous outdoor use
- Hexagon socket SW6 – high torque transmission, no slippage
- Head diameter 13 mm – compact contact area even at tight connection points
- Sales unit: 100 pieces
Order now
Order the K2 cylinder head bolt M8 x 60 directly here in the Memodo Shop – sold in packs of 100.
Examples of use
- Fastening of add-on parts and adaptors for the K2 mounting system
- Connections designed to function without additional locking elements
- Replacement and retrofitting requirements for existing systems
Technical data
- Head shape: Cylindrical head
- Head diameter: 13 mm
- Thread: M8
- Length: 60 mm
- Standard: ISO 4762
- Material: A2 stainless steel
- Drive: Hex socket SW6
- Underslung teeth: yes
- Sales unit: 100 pieces
- Carton: 100 pieces
- Pallet: 28,800 pieces
- Weight per piece: 0.027 kg
- Manufacturer’s item number: 2001734
- GTIN: 4251786206674
