K2 GreenRoof 2.0 Support 376
| Manufacturer Art. No.: | 2005169 |
|---|---|
| Art. Nr.: | 15900 |
| Pieces per package unit: |
|
| Product type: | Elevation system |
| Type of roof: | Green roof |
Prices are only visible to business customers upon successful registration.
- New
Product number:
15900
Description

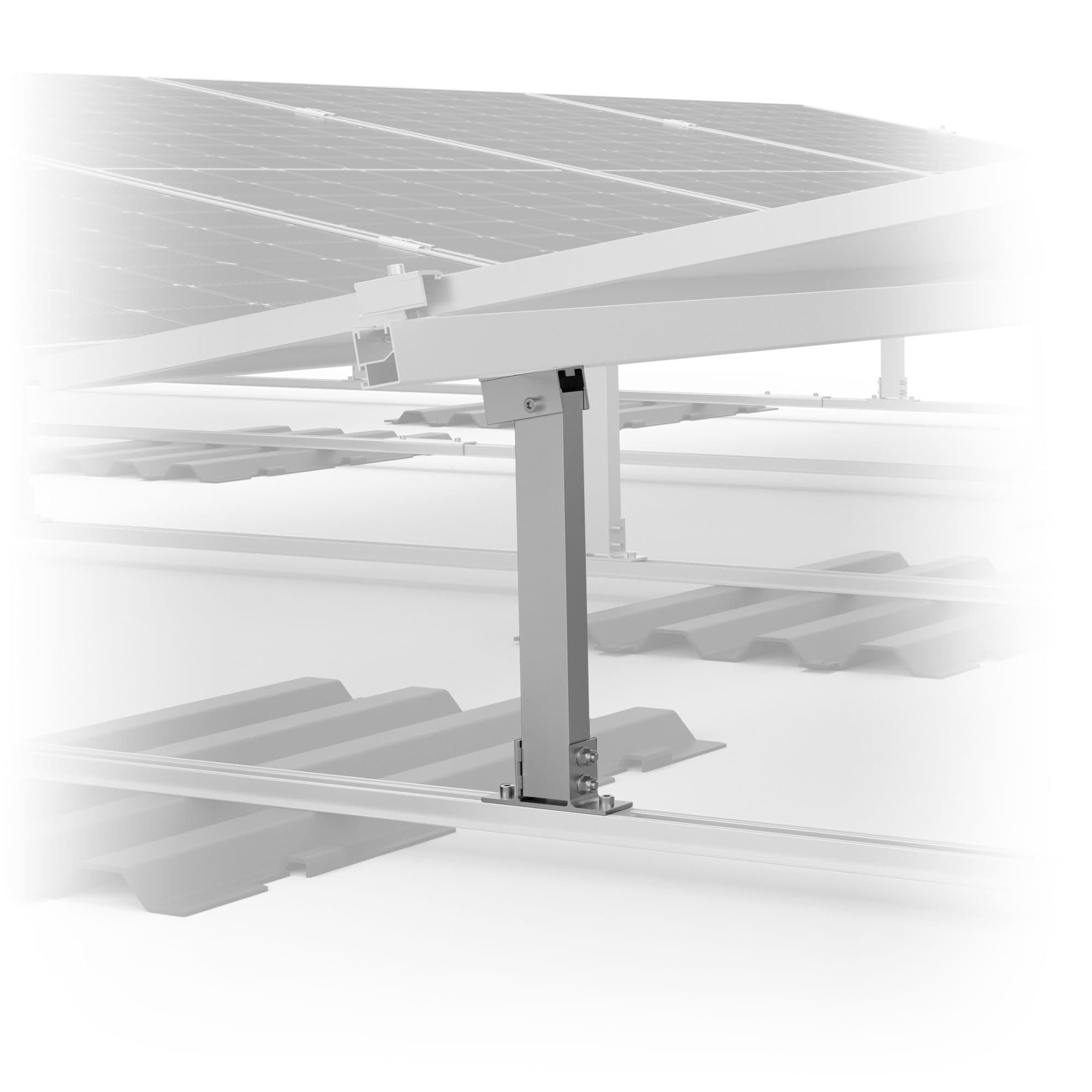

K2 Systems GreenRoof 2.0 Support 376 – Flat roof mounting

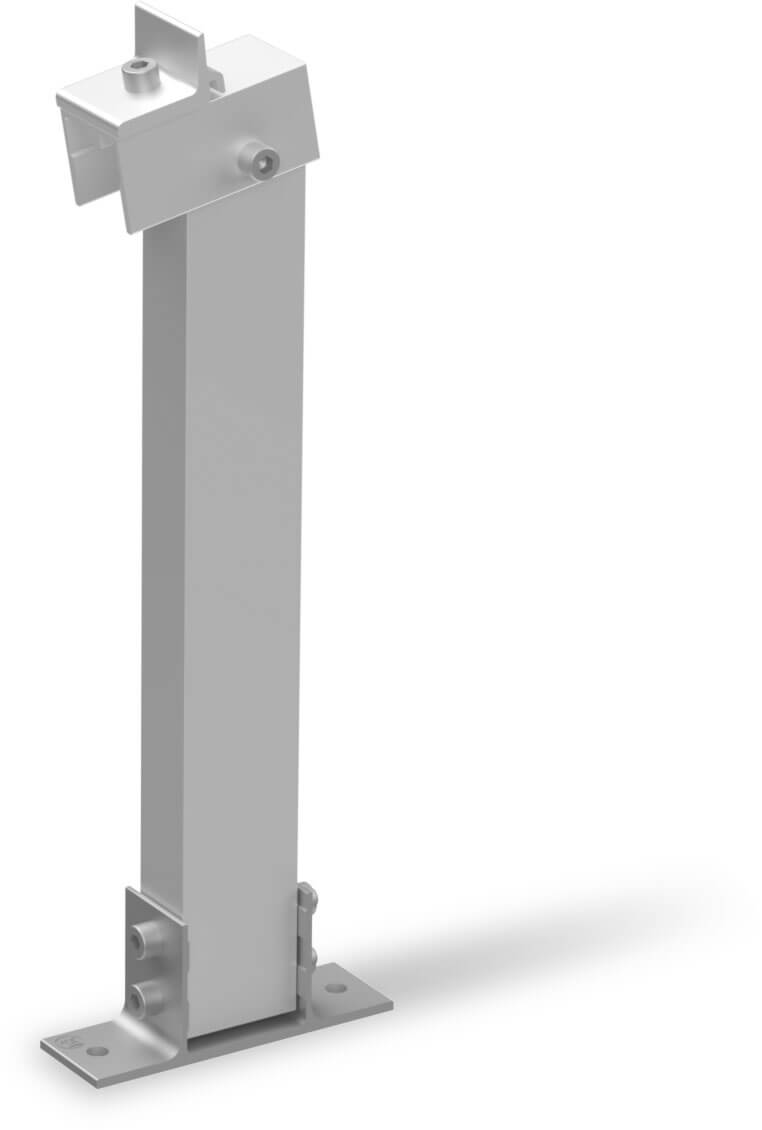

The GreenRoof 2.0 Support 376 from K2 Systems is a pre-assembled support for front mounting in the K2 GreenRoof 2.0 system. It is suitable for module tilts of 10° and 15°, as well as for all installation variants on green roofs. Manufacturer’s item number: 2005169.
Product benefits
- Pre-assembled unit for quick and efficient installation
- Suitable for module tilts of 10° and 15°
- Integrated Climber connection for K2 SingleRail systems
- Flexible application options across all installation variants of the GreenRoof 2.0 system
- Corrosion-resistant material combination of aluminium and stainless steel
Product data
- Product name: GreenRoof 2.0 Support 376
- Item number: 2005169
- GTIN: 4251786217519
- Manufacturer: K2 Systems
- Product type: Mounting system
Technical specifications
- Dimensions (L x W x H): 403 x 130 x 58 mm
- Material: Aluminium EN AW 6063 T66, stainless steel A2-70
- Weight: 0.631 kg
- Top connection: Climber connection for SingleRail
- Lower connection: 2x MK2 and M8x20 cylinder head screw to BasicRail (not included)
Application & system compatibility
- Area of application: Flat roof / green roof
- Mounting system: K2 GreenRoof 2.0
- System compatibility: K2 SingleRail and K2 BasicRail
- Application: Green roof PV systems
- Category: Flat roof
- Component type: Mounting system (front support)
Packaging
- Sales unit: 1 piece
- Packaging unit: 10 pieces per box
- Pallet: 240 pieces
- Weight including packaging: 0.657 kg (approx.)
- Customs tariff number: 76109090
