K2 GreenRoof 2.0 Support 674

K2 Systems GreenRoof 2.0 Support 674 – Mounting

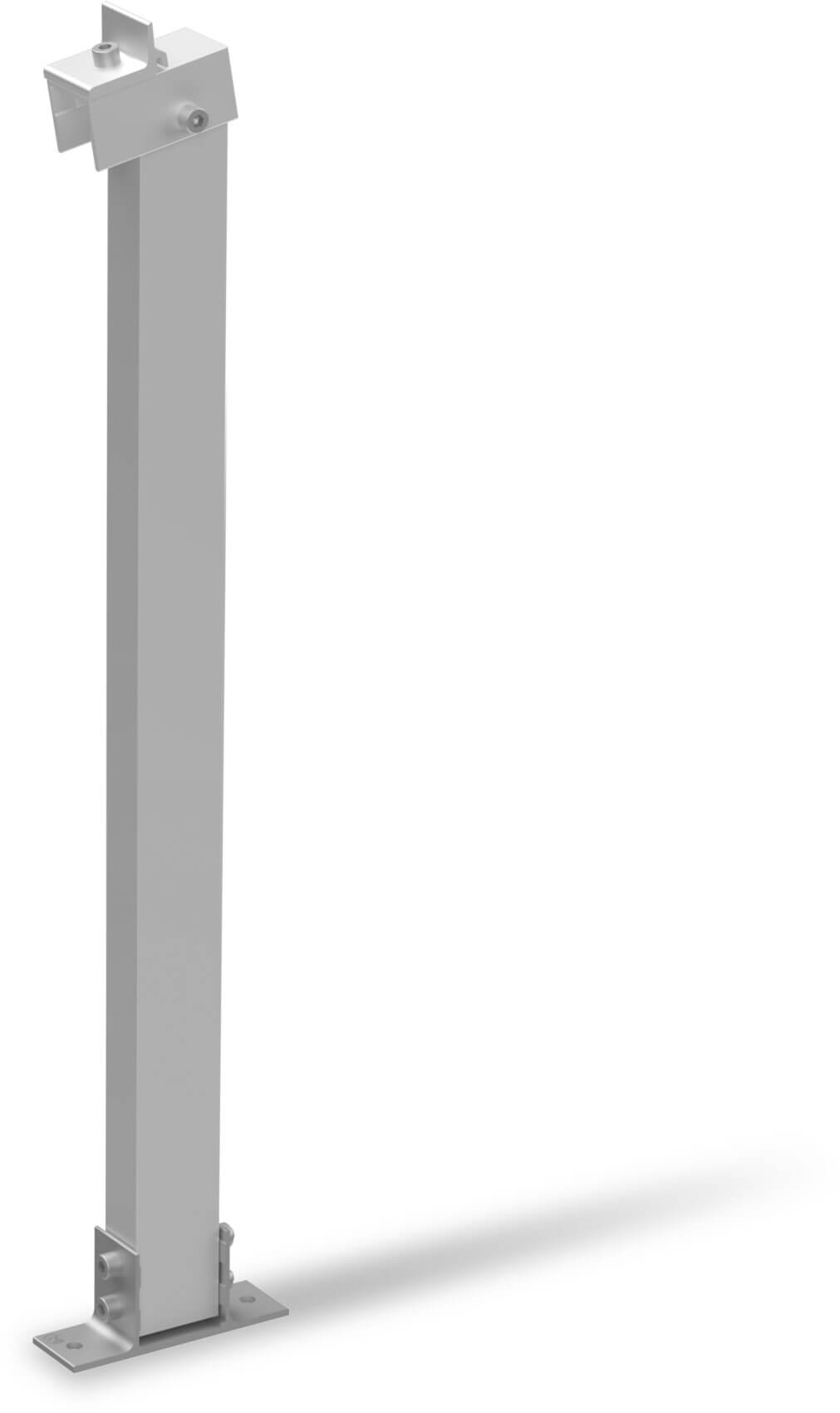

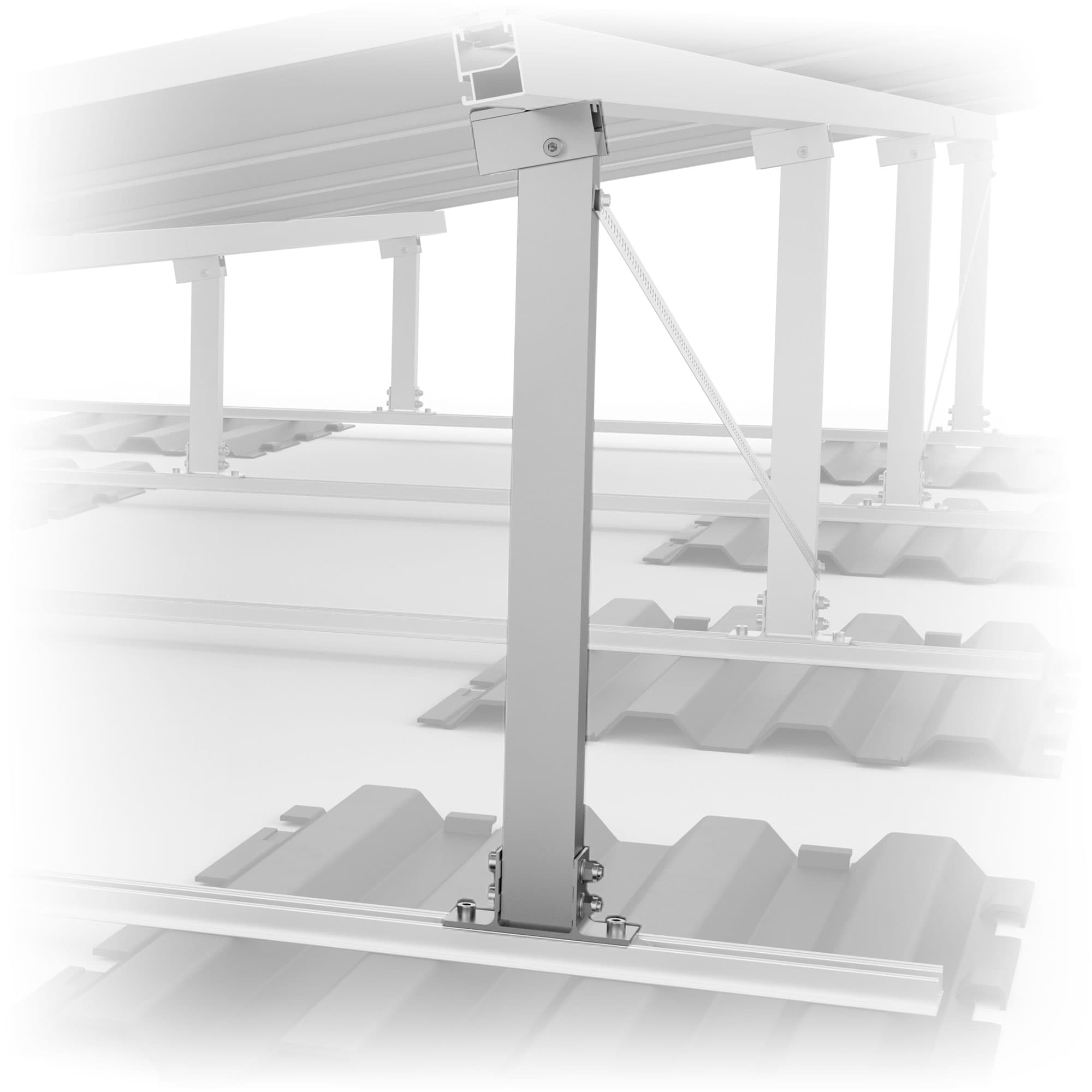

The GreenRoof 2.0 Support 674 from K2 Systems is a pre-assembled rear support for the GreenRoof 2.0 system. With an inclination angle of 15°, this component is suitable for all installation variants on flat roofs. Manufacturer’s item number: 2005171.

Product benefits

• Pre-assembled design for quick and easy installation

• Rear support for a defined 15° module tilt

• Integrated Climber connection for K2 SingleRails

• Compatible with all GreenRoof 2.0 mounting options

• Corrosion-resistant materials made from aluminium and stainless steel


Product data

• Product name: GreenRoof 2.0 Support 674

• Item number: 2005171

• GTIN: 4251786217533

• Manufacturer: K2 Systems

• Product type: Mounting system / rear support


Technical specifications

• Tilt angle: 15°

• Dimensions (L x W x H): 701 x 130 x 58 mm

• Material: Aluminium EN AW 6063 T66, Stainless steel A2-70

• Weight: 0.875 kg

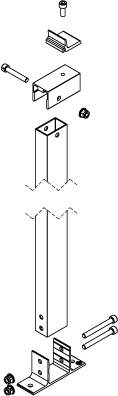

• Connection: Climber for SingleRail, secured with MK2 and M8x20 cylinder head screw


Application & system compatibility

• Area of application: Flat roof (suitable for green roofs)

• Mounting system: K2 GreenRoof 2.0

• System compatibility: K2 SingleRail and BasicRail

• Application: PV systems on green flat roofs

• Category: Flat roof mounting system

• Component type: Mounting system – rear support


Packaging

• Sales unit: 1 piece

• Packaging unit: 10 pieces / pack

• Pallet: 240 pieces

• Weight per piece: 0.875 kg

• Customs tariff number: 76109090
