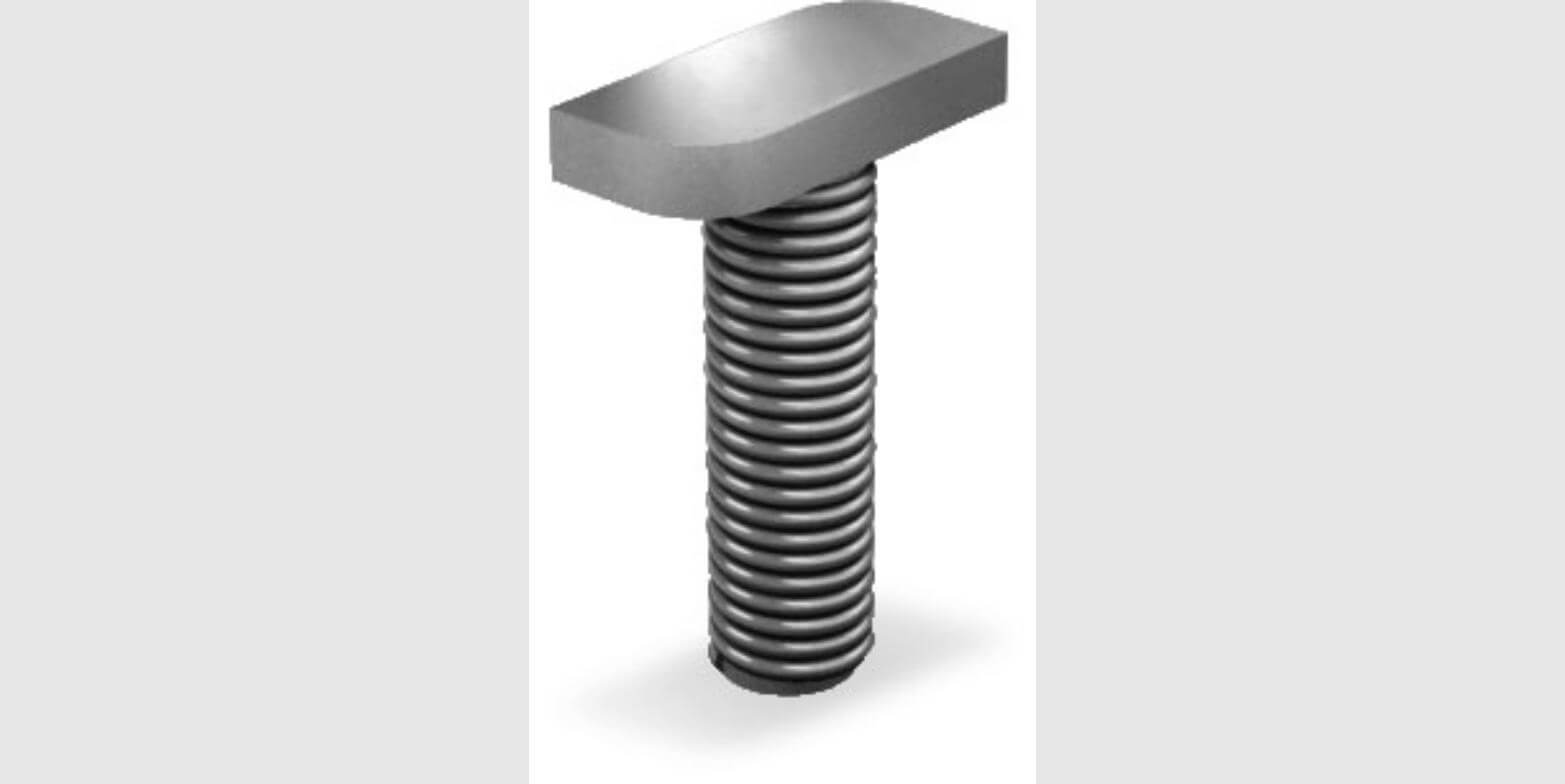

K2 hammer-head screw 20/12 M8x30 for SingleRail 36/50
| Manufacturer Art. No.: | 2002035 |
|---|---|
| Art. Nr.: | 16323 |
| Pieces per package unit: |
|
| Product type: | Screws |
Prices are only visible to business customers upon successful registration.
Product number:
16323
Description
K2 Hammer-head screw 20/12 M8x30 for SingleRail 36/50
The 20/12 M8x30 hammer-head screw for SingleRail 36/50 is the fastener for the K2 SingleRail system. You insert the hammer head into the side chamber of the K2 SingleRail 36 and 50, turn it 90 degrees, and you have a form-fitting, load-bearing connection – without having to insert the screw from the front end of the rail. This saves you time on the roof, particularly when making adjustments after installation. Made from A2 stainless steel (1.4301).
Your benefits
- Hammer head 20/12 – insert, turn, secure: no need to insert from the end of the rail
- Positive-lock connection with high load-bearing capacity
- A2 stainless steel (1.4301) – corrosion-resistant for continuous outdoor use
- M8 thread – compatible with the system’s K2 nuts and clamps
- Can be repositioned afterwards, provided the connection has not been tightened
- Sold in packs of 100
Order now
Order the K2 hammer-head screw 20/12 M8x30 directly here in the Memodo Shop – sold in packs of 100, so you don’t get held up on site.
Examples of use
- Fastening of module clamps and accessories in the K2 SingleRail system
- Retrofitting additions to rails that have already been installed, without dismantling the rail
Technical data
- Head shape: Hammer head 20/12
- Head dimensions: 15.5 x 8.5 x 4 mm
- Thread: M8x30
- Length: 30 mm
- Material: A2 stainless steel (1.4301)
- Mounting system: K2 SingleRail System
- Packaging unit: 100 pieces
- Carton: 100 pieces
- Pallet: 43,200 pieces
- Weight per piece: 0.016 kg
- Manufacturer’s item number: 2002035
- GTIN: 4251786207367
