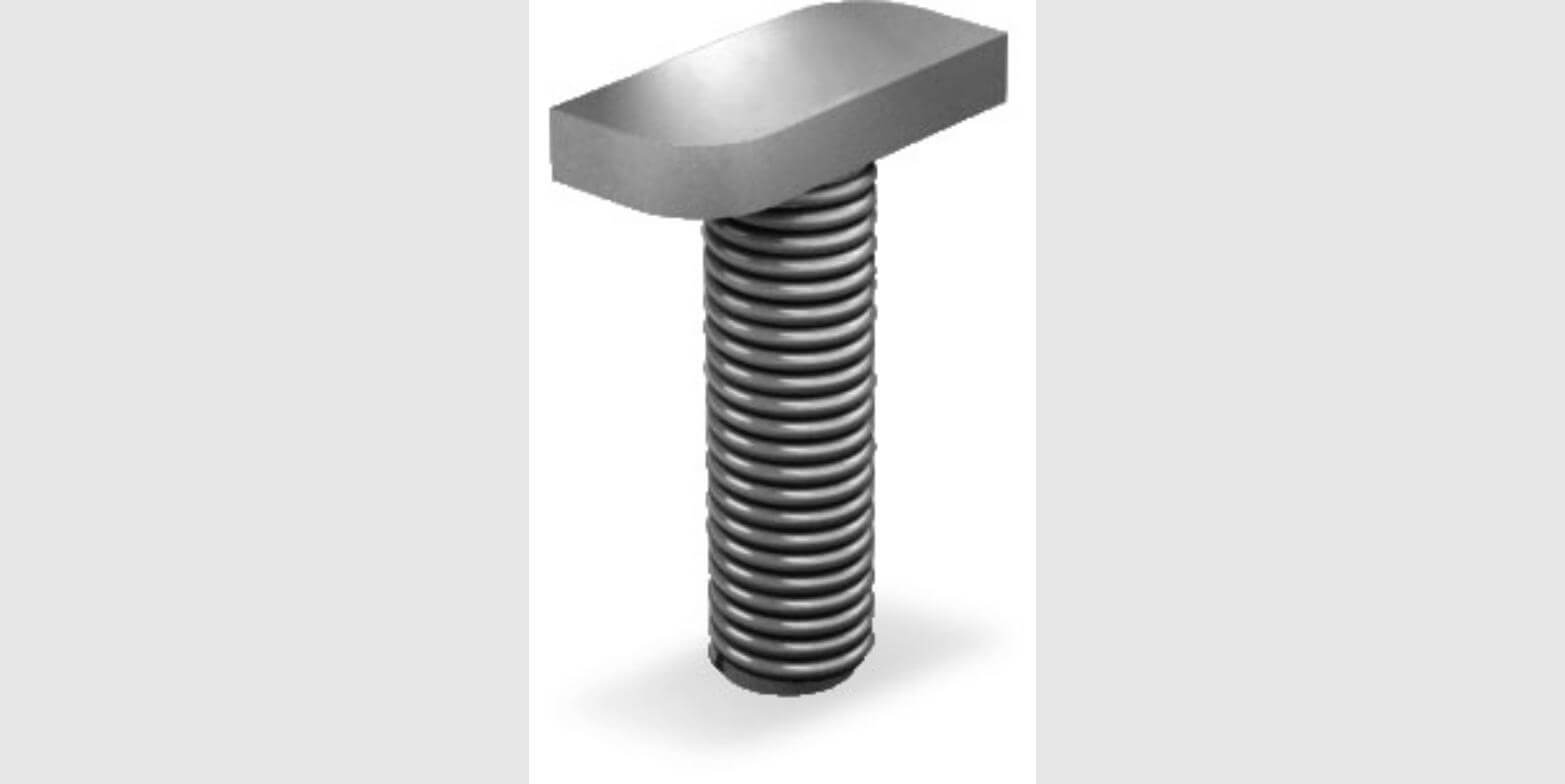

K2 Hammer-head screw 28/15 M10x25
| Manufacturer Art. No.: | 1000571 |
|---|---|
| Art. Nr.: | 16316 |
| Pieces per package unit: |
|
| Product type: | Screws |
Prices are only visible to business customers upon successful registration.
Product number:
16316
Description
K2 Hammer-head screw 28/15 M10x25
The 28/15 M10x25 hammer-head screw is the fastener for the K2 SolidRail system. Simply insert the hammer head into the profile groove of the SolidRail, turn it 90 degrees, and you have a positive-lock, load-bearing connection – without having to insert the screw from the end of the rail. This saves you time on the roof, particularly when making subsequent adjustments. Made from A2-70 stainless steel.
Your benefits
- Hammer head 28/15 – insert, turn, secure: no need to insert from the end of the rail
- Positive-lock connection with high load-bearing capacity
- A2-70 stainless steel – corrosion-resistant for continuous outdoor use
- M10 thread – compatible with the system’s K2 nuts and clamps
- Can be repositioned as long as the connection has not been tightened
- Sold in packs of 100
Order now
Order the K2 hammer-head screw 28/15 M10x25 right here in the Memodo Shop – sold in packs of 100, so you don’t run out on site.
Examples of use
- Fastening of module clamps and attachments in the K2 SolidRail system
- Retrofitting additions to rails that have already been installed, without having to dismantle the rail
- Installation on a pitched roof
Technical data
- Head shape: Hammer head 28/15
- Head dimensions: 22.5 x 10.5 x 4 mm
- Thread: M10x25
- Length: 25 mm
- Material: A2-70 stainless steel
- Mounting system: K2 SolidRail System
- Application: Pitched roof
- Packaging unit: 100 pieces
- Carton: 100 pieces
- Pallet: 28,800 pieces
- Weight per piece: 0.019 kg
- Manufacturer’s item number: 1000571
