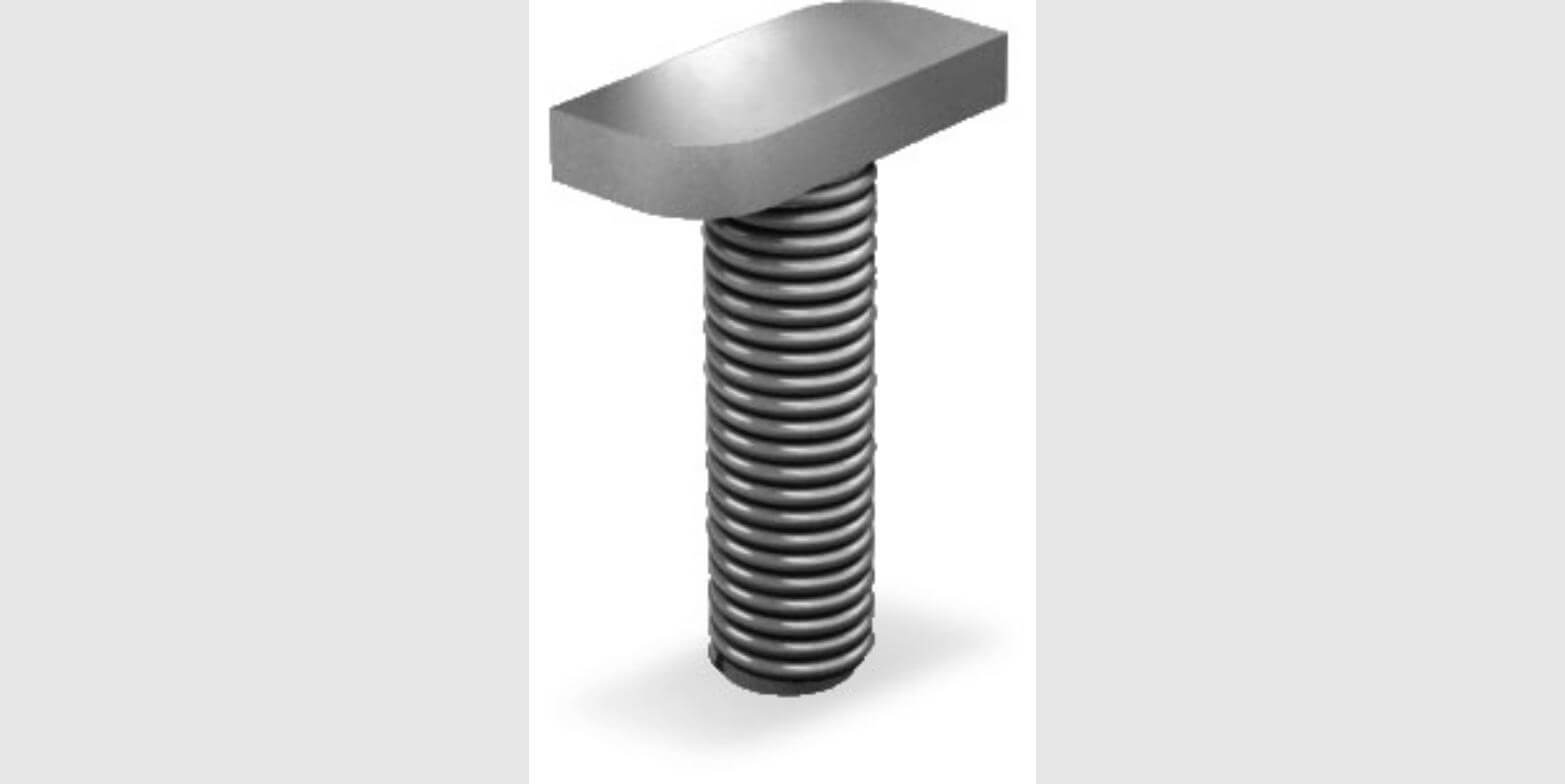

K2 Hammer-head screw 28/15 M8x20
| Manufacturer Art. No.: | 1000614 |
|---|---|
| Art. Nr.: | 16317 |
| Pieces per package unit: |
|
| Product type: | Screws |
Prices are only visible to business customers upon successful registration.
Product number:
16317
Description
K2 Hammer-head screw 28/15 M8x20
The 28/15 M8x20 hammer-head screw is the fastener for the K2 SolidRail system. Simply insert the hammer head into the lower chamber of the SolidRail, turn it 90 degrees, and you have a form-fit, load-bearing connection – without having to insert the screw from the end of the rail. This saves you time on the roof, particularly when making subsequent adjustments. Made from A2 stainless steel (1.4301).
Your benefits
- Hammer head 28/15 – insert, turn, secure: no need to insert from the end of the rail
- Positive-lock connection with high load-bearing capacity
- A2 stainless steel (1.4301) – corrosion-resistant for continuous outdoor use
- M8 thread – compatible with the system’s K2 nuts and clamps
- Can be repositioned as long as the connection has not been tightened
- Sold in packs of 100
Order now
Order the K2 hammer-head screw 28/15 M8x20 directly here in the Memodo Shop – sold in packs of 100, so you don’t get held up on site.
Examples of use
- Fastening of module clamps and attachments in the K2 SolidRail system
- Retrofitting additions to rails that have already been installed, without having to dismantle the rail
- Installation on a pitched roof
Technical data
- Head shape: Hammer head 28/15
- Head dimensions: 22.5 x 10.5 x 4 mm
- Thread: M8x20
- Length: 20 mm
- Material: A2 stainless steel (1.4301)
- Mounting system: K2 SolidRail system
- Application: Pitched roof
- Sales unit: 100 pieces
- Carton: 100 pieces
- Pallet: 50,400 pieces
- Weight per piece: 0.015 kg
- Manufacturer’s item number: 1000614
- GTIN: 4251786200559
