K2 Hammer-head screw 28/15 M8x30

Manufacturer Art. No.:	1000368
Art. Nr.:	16313
Pieces per package unit:	100 per carton 43200 per pallet

Prices are only visible to business customers upon successful registration.

Unfortunately you are not authorised to place orders

To purchase the item you need a certification from the manufacturer.

The article is currently not available in your country.

Please contact your personal contact person to find out the price of the product. You can find your contact person's contact information in your customer account.

There was an error when determining the product availabilty

Product number: 16313

Prices are only visible to business customers upon successful registration.

Unfortunately you are not authorised to place orders

To purchase the item you need a certification from the manufacturer.

The article is currently not available in your country.

Please contact your personal contact person to find out the price of the product. You can find your contact person's contact information in your customer account.

There was an error when determining the product availabilty

Product number: 16313

Tech tip

Once inserted, turn the screw through 90 degrees until you can feel the hammer head click into the groove, and check that it is secure by giving it a gentle tug before tightening. A hammer head that has only been turned partway may look as if it is fitted, but it will not bear any load. Refer to the fitting instructions for the relevant K2 component for the tightening torques – these depend on the clamping or connecting part used, not on the screw alone.

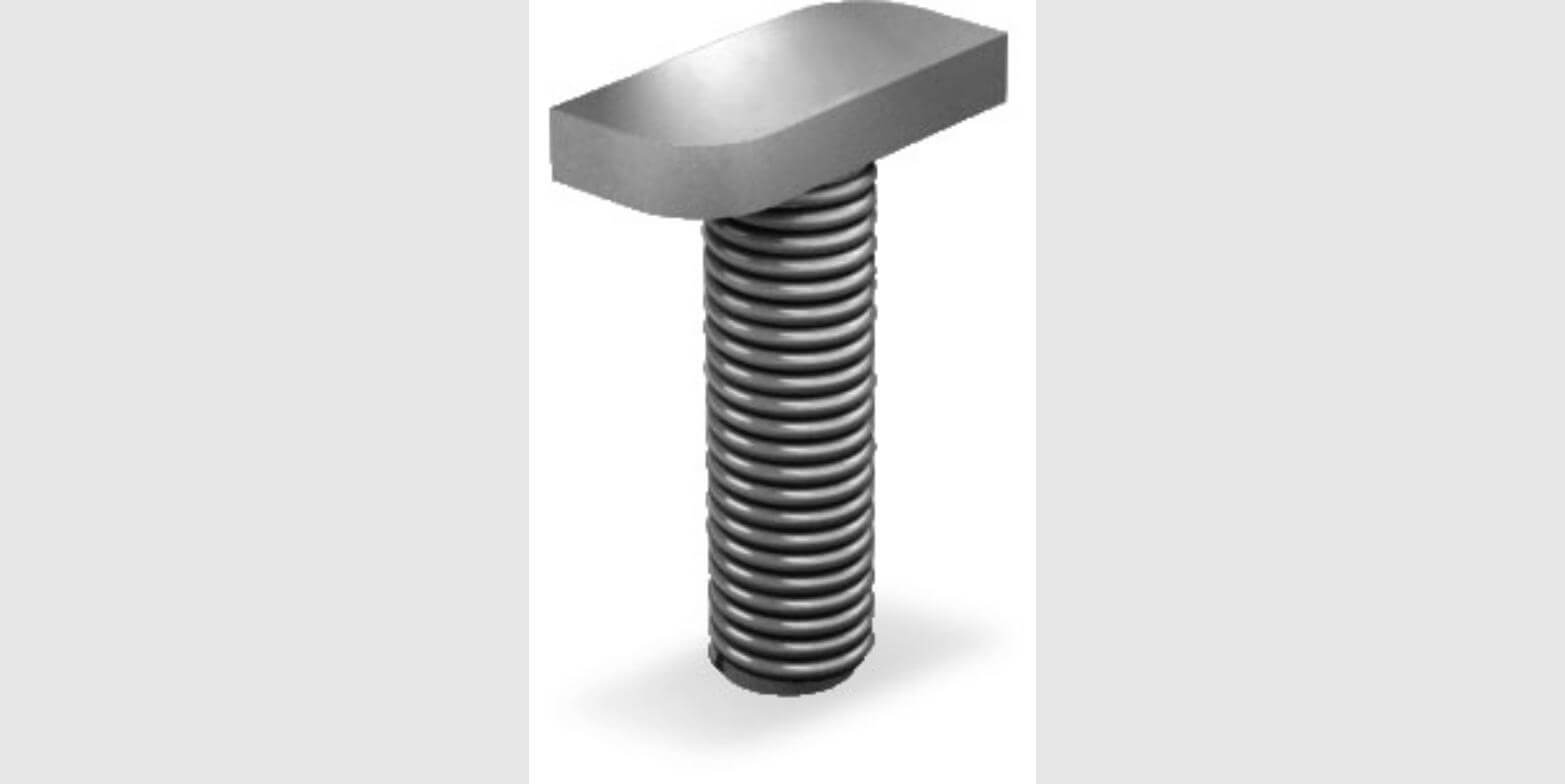

K2 Hammer-head screw 28/15 M8x30

The K2 Systems 28/15 M8x30 hammer-head screw is the fastener for the K2 SolidRail system. Simply insert the hammer head into the profile groove, turn it 90 degrees, and you have a form-fit, load-bearing connection – without having to insert the screw from the end of the rail. This makes your work on the roof considerably quicker, particularly when making subsequent adjustments. Made from A2 (1.4301) stainless steel and therefore permanently corrosion-resistant.

Your benefits

Hammer head 28/15 – insert, turn, secure: no need to insert from the end of the rail
Positive-lock connection with high load-bearing capacity
A2 stainless steel (1.4301) – corrosion-resistant for continuous outdoor use
M8 thread – compatible with standard K2 nuts and clamps
Compatible with the K2 SolidRail system
Pack of 100 – handy for the building site

Order now

Order the K2 hammer-head screw 28/15 M8x30 directly here in the Memodo Shop – sold in packs of 100, so you won’t run out on site.

Examples of use

Fastening module clamps and accessories in the K2 SolidRail system
Installation on a pitched roof
Retrofitting to rails that have already been installed, without having to dismantle the rail

Technical data

Head shape	Hammer head 28/15
Head dimensions	22.5 x 10.5 x 4 mm
Thread	M8
Length	30 mm
Material	A2 stainless steel (1.4301)
Mounting system	K2 SolidRail system
Area of application	Pitched roof
Sales unit	100 pieces
Weight per piece	0.019 kg
Manufacturer’s item number	1000368
