K2 Multi Monti concrete screw anchor 10x70/5/20

K2 Schraubanker Multi Monti Beton 10x70/5/20

Manufacturer Art. No.:	2002571
Art. Nr.:	16327
Pieces per package unit:	25 per carton 12000 per pallet
Product type:	Screws

Prices are only visible to business customers upon successful registration.

Unfortunately you are not authorised to place orders

To purchase the item you need a certification from the manufacturer.

The article is currently not available in your country.

Please contact your personal contact person to find out the price of the product. You can find your contact person's contact information in your customer account.

There was an error when determining the product availabilty

Product number: 16327

Prices are only visible to business customers upon successful registration.

Unfortunately you are not authorised to place orders

To purchase the item you need a certification from the manufacturer.

The article is currently not available in your country.

Please contact your personal contact person to find out the price of the product. You can find your contact person's contact information in your customer account.

There was an error when determining the product availabilty

Product number: 16327

Tech tip

The manufacturer specifies the borehole diameter, installation depth and tightening torque in the anchor’s approval certificate and fitting instructions – make sure you have these to hand before installing the anchor for the first time; they are not shown here. Drill the hole deeper than the intended installation depth and blow out the drill cuttings: any residue at the bottom of the borehole will prevent the anchor from reaching the required depth, which reduces its load-bearing capacity. Drive the anchor in at a steady, low speed; do not use an impact driver.

K2 Multi Monti Concrete Screw Anchor 10x70/5/20

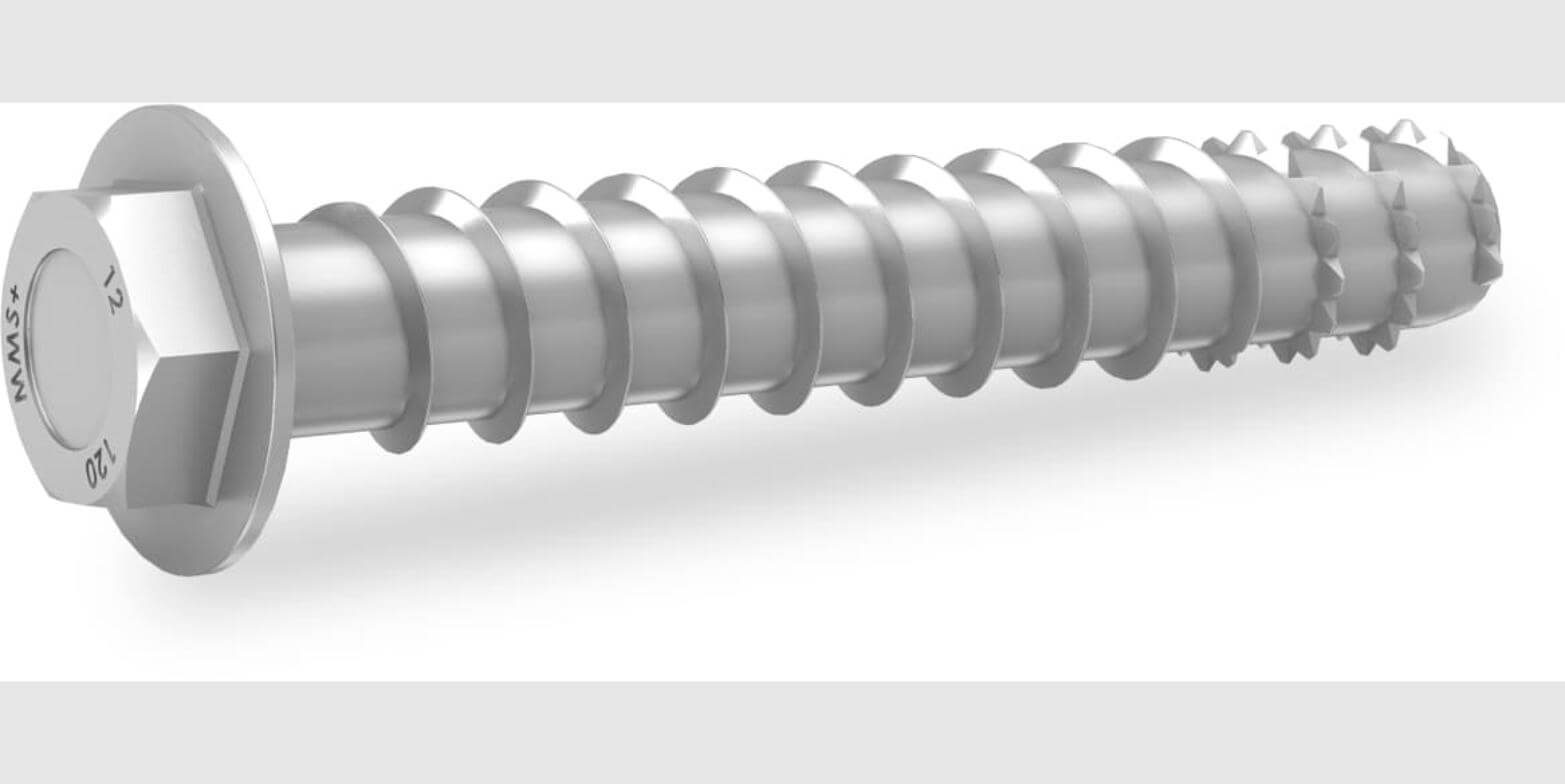

The MULTI-MONTI-plus screw anchor (Heco) is screwed directly into a pre-drilled hole and is immediately load-bearing – with no curing time and no expansion pressure. The reinforced concrete thread cuts its own internal thread into the building material. Head shape: Hexagonal head with pressed-on washer, external hex drive SW 13, material: carbon steel, blue galvanised (A2K).

Your benefits

Ready for loading immediately after installation – no waiting for curing
Self-tapping in concrete, therefore no expansion pressure at the edge of the drill hole
Small edge clearances possible, as there is no spreading effect
Carbon steel, blue galvanised (A2K) – suitable for use in building structures
External hexagon SW 13 – quick installation
Can be removed and reinserted if required
Pack of 25

Order now

Order the Multi Monti Concrete 10x70/5/20 screw anchor directly here in the Memodo Shop – sold in packs of 25.

Examples of use

Fixing of PV mounting systems in concrete
Anchoring in concrete and masonry
Points with a small edge clearance where expansion anchors are unsuitable

Technical data

Type: MULTI-MONTI-plus (Heco)
Head shape: Hexagonal head with pressed-on washer
Diameter: 10 mm
Length: 70 mm
Material: Carbon steel, blue galvanised (A2K)
Drive: External hexagon SW 13
Packaging unit: 25 pieces
Carton: 25 pieces
Pallet: 12,000 pieces
Weight per piece: 0.039 kg
Manufacturer’s item number: 2002571
GTIN: 4251786209705
