K2 Multi Monti concrete screw anchor 7.5x40/5

K2 Schraubanker Multi Monti Beton 7,5x40/5

Manufacturer Art. No.:	2002570
Art. Nr.:	16326
Pieces per package unit:	100 per carton 48000 per pallet
Product type:	Screws

Prices are only visible to business customers upon successful registration.

Unfortunately you are not authorised to place orders

To purchase the item you need a certification from the manufacturer.

The article is currently not available in your country.

Please contact your personal contact person to find out the price of the product. You can find your contact person's contact information in your customer account.

There was an error when determining the product availabilty

Product number: 16326

Prices are only visible to business customers upon successful registration.

Unfortunately you are not authorised to place orders

To purchase the item you need a certification from the manufacturer.

The article is currently not available in your country.

Please contact your personal contact person to find out the price of the product. You can find your contact person's contact information in your customer account.

There was an error when determining the product availabilty

Product number: 16326

Tech tip

The manufacturer specifies the borehole diameter, installation depth and tightening torque in the anchor’s approval certificate and fitting instructions – make sure you have these to hand before installing the anchor for the first time; they are not shown here. Drill the hole deeper than the intended installation depth and blow out the drill cuttings: any residue at the bottom of the borehole will prevent the anchor from reaching the required depth, which reduces its load-bearing capacity. Drive the anchor in at a steady, low speed; do not use an impact driver.

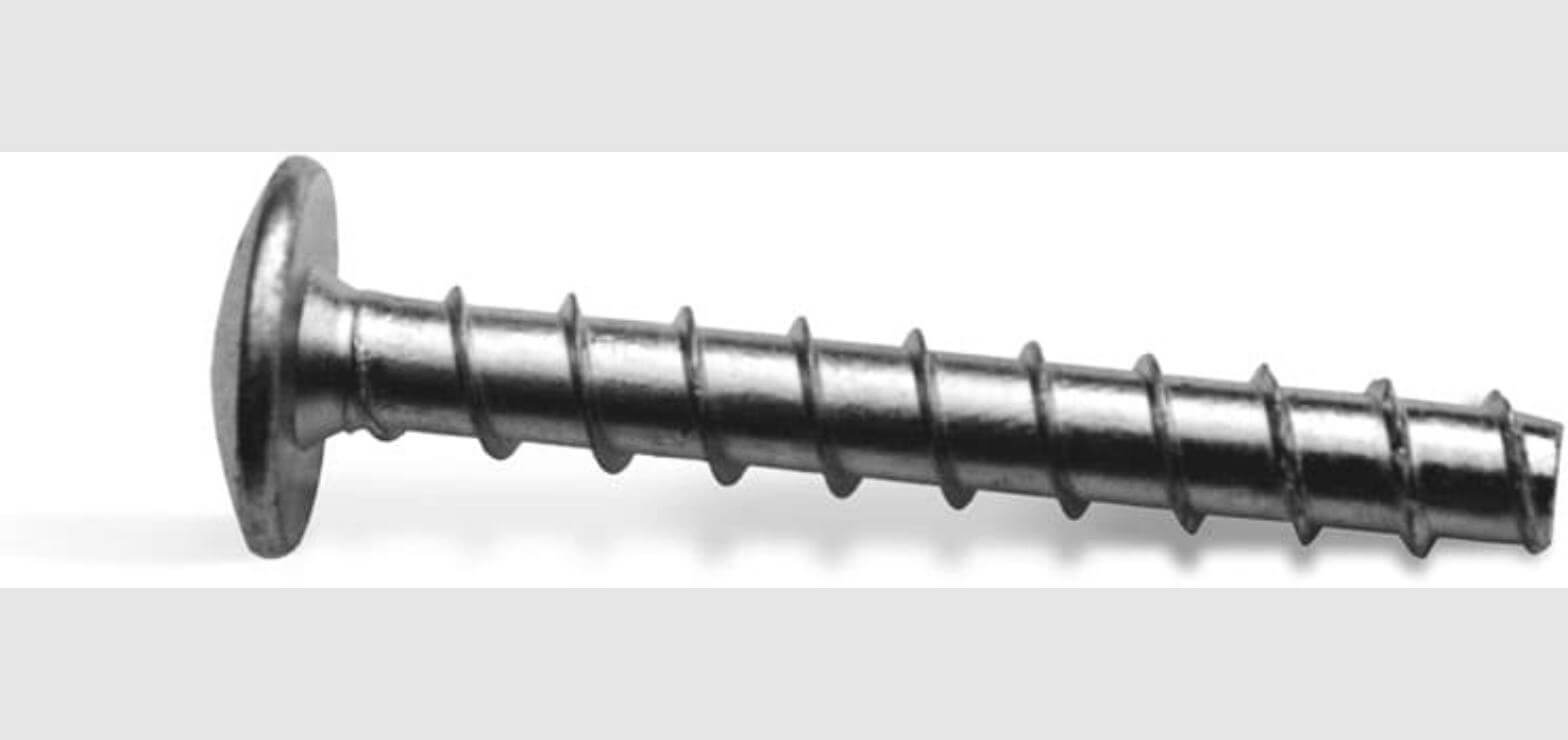

K2 Multi Monti Concrete Screw Anchor 7.5x40/5

The K2 Multi Monti concrete screw anchor 7.5x40/5 is a concrete screw with a flat-round head for direct fixing in pre-drilled holes – ready for immediate loading and ideal for installing PV mounting systems on concrete.

Your benefits

Ready for loading immediately after installation
Reinforced, hardened concrete thread cuts an internal thread into the building material
Material: steel, galvanised and blue passivated (A2K)
TX 30 hex socket for easy installation

Order your K2 Multi Monti Concrete screw anchor now and securely fasten your mounting system to concrete!

Application example

For fixing K2 mounting systems to concrete substrates, e.g. for flat-roof or ground-mounted installations.

Technical data

Manufacturer: K2 Systems
Manufacturer’s reference: 2002570
Head shape: Flat round head
Length: 40 mm
Drive: Hex socket TX 30
Material: Galvanised steel
Packaging unit: 100 pieces
Weight: 0.012 kg
