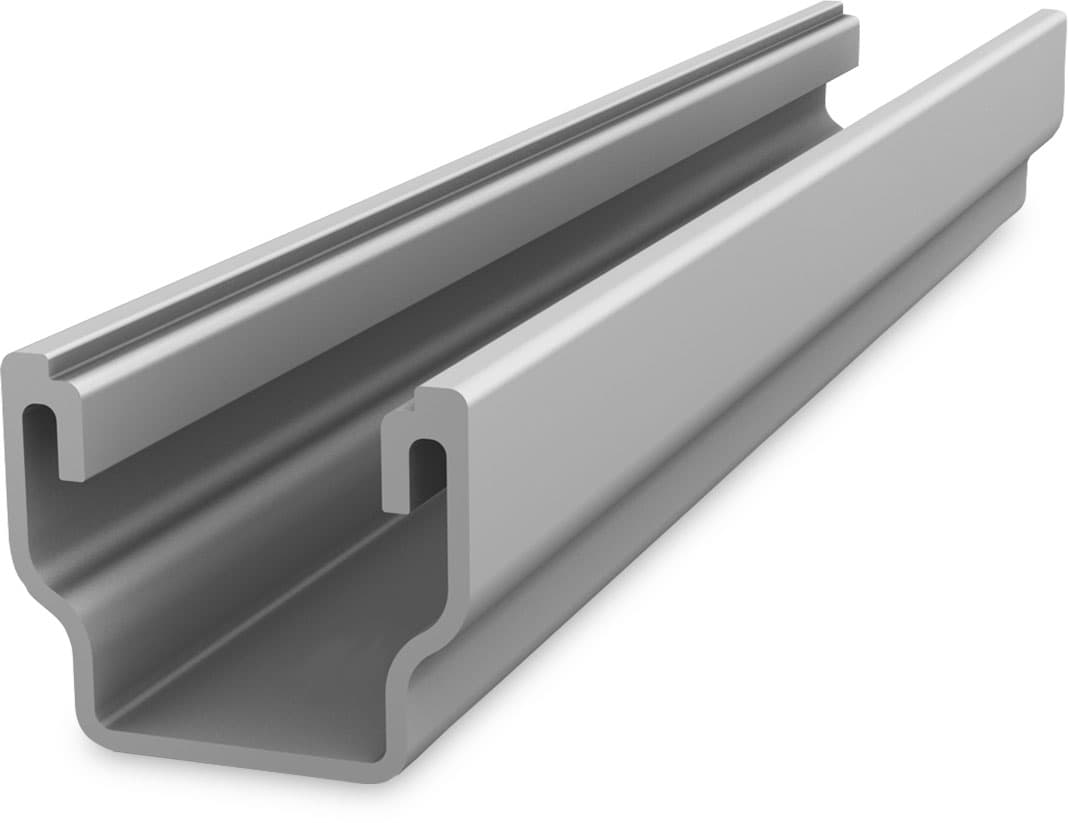

K2 MultiRail 4.20 m

Manufacturer Art. No.:	2000471
Art. Nr.:	16357
Pieces per package unit:	100 per pallet
Product type:	Mounting rails

Prices are only visible to business customers upon successful registration.

Unfortunately you are not authorised to place orders

To purchase the item you need a certification from the manufacturer.

The article is currently not available in your country.

Please contact your personal contact person to find out the price of the product. You can find your contact person's contact information in your customer account.

There was an error when determining the product availabilty

Product number: 16357

Prices are only visible to business customers upon successful registration.

Unfortunately you are not authorised to place orders

To purchase the item you need a certification from the manufacturer.

The article is currently not available in your country.

Please contact your personal contact person to find out the price of the product. You can find your contact person's contact information in your customer account.

There was an error when determining the product availabilty

Product number: 16357

Tech tip

Two things that often go wrong with the MultiRail. Firstly, the order: as well as the 4.20-metre full-length version, the range also includes short individual pieces (MultiRail 10, 15 and 25 measuring 100, 150 and 250 mm) and CSM variants for corrugated sheet metal. If you order ‘MultiRail’ without specifying the length, you’ll quickly end up with the wrong part – and the CSM version is designed for corrugated sheet metal, not trapezoidal sheet metal. Secondly, the warranty: the 12-year warranty applies as standard; you’ll only receive the extension to 20 years if the system has been designed in K2 Base and the installation has been documented via the K2 Docu app. Both of these must be completed before the scaffolding is dismantled; the documentation cannot be properly compiled retrospectively. The structural analysis itself is project-specific and generated by K2 Base, not based on empirical values – the span depends on the module format, wind and snow loads, and the rib geometry of the existing sheet metal.

K2 MultiRail 420

The MultiRail 420 combines roof mounting and module support rail in a single component: it is screwed directly onto the trapezoidal sheet metal and simultaneously accommodates the module clamps. This eliminates the need for the second level usually required, consisting of sheet metal fixings and a separate mounting rail – fewer parts, lower overall height and quicker installation. The rail is 4.20 m long and is made from EN AW-6063 T66 aluminium.

Your benefits

Roof connection and support rail in a single profile – one level instead of two
Low overall height of 32 mm, close to the roof
Approved for trapezoidal sheet metal roofs with a pitch of 5° to 75°
Aluminium EN AW-6063 T66, structural verification in accordance with Eurocode 9
General building authority approval Z-14.4-603
12-year guarantee; 20 years with planning in K2 Base and documentation via the K2 Docu App

Order now

Are you planning a system on trapezoidal sheet metal? Order the K2 MultiRail 420 directly here in the Memodo Shop. The required rail length and the number of fixing points are determined by the design in K2 Base.

Application examples

Roof-mounted systems on trapezoidal sheet metal in commercial hall construction
Pitched roofs with pitches between 5° and 75°
Projects where every millimetre of building height and every component saved counts

Technical data

Length: 4200 mm
Profile width: 39 mm
Overall height: 32 mm
Material: Aluminium EN AW-6063 T66
Weight: 2.451 kg per piece (approx. 0.58 kg/m)
System: K2 MultiRail
Roof type: Trapezoidal sheet metal
Permissible roof pitch: 5° to 75°
Structural analysis: Eurocode 9
Approval: Z-14.4-603
Warranty: 12 years, 20 years with K2 Base and the K2 Docu app
Product code: 76042990
Manufacturer’s item number: 2000471
