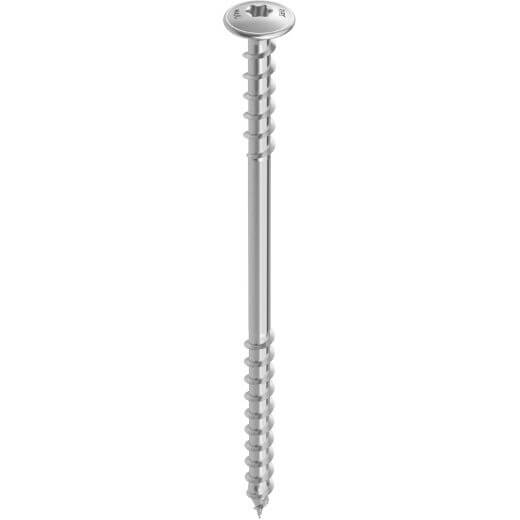

K2 pan-head wood screw 8x240

Manufacturer Art. No.:	2004119
Art. Nr.:	16347
Pieces per package unit:	50 per carton 12800 per pallet
Product type:	Screws

Prices are only visible to business customers upon successful registration.

Unfortunately you are not authorised to place orders

To purchase the item you need a certification from the manufacturer.

The article is currently not available in your country.

Please contact your personal contact person to find out the price of the product. You can find your contact person's contact information in your customer account.

There was an error when determining the product availabilty

Product number: 16347

Prices are only visible to business customers upon successful registration.

Unfortunately you are not authorised to place orders

To purchase the item you need a certification from the manufacturer.

The article is currently not available in your country.

Please contact your personal contact person to find out the price of the product. You can find your contact person's contact information in your customer account.

There was an error when determining the product availabilty

Product number: 16347

Tech tip

You must choose the screw length to match the thickness of the load-bearing timber, not just the overall installation height: select the length so that, after allowing for the roof battens and counter-battens, there is sufficient thread remaining within the rafter. The required minimum screw-in depth is specified in the screw’s approval certificate – refer to this before planning your installation. Drive the screw in at low speed and with even pressure, and seat the pan head only deep enough for it to lie flat: if you countersink it into the timber, you’ll lose the head’s bearing surface.

K2 Flat-head wood screw 8x240

Use the K2 Systems 8 mm x 240 flat-head timber screw to secure your PV mounting system to timber. The 18 mm diameter pan head distributes the load over a large area and sinks cleanly into the substrate without splitting it. Material: stainless steel, TX 40 internal hex drive. It features a double thread.

Your benefits

18 mm disc head – large contact area, high head pull-through force
Stainless steel – corrosion-resistant for continuous outdoor use
TX 40 internal hex – transmits high torque without slipping
Double thread
For the K2 SingleRail and K2 SolidRail systems
Pack of 50

Order now

Order the K2 timber construction screw with pan head 8 mm x 240 directly here in the Memodo Shop – sold in packs of 50.

Examples of use

Fixing roof hooks and rail feet to rafters or timber formwork
Installation of the mounting system in the K2 SingleRail and K2 SolidRail systems
Installation on pitched roofs, where the screw length must match the installation height

Technical data

Head type: flat head
Flat head diameter: 18 mm
Thread diameter: 8 mm
Length: 240 mm
Thread type: Double thread
Material: Stainless steel
Drive: Hex socket TX 40
Mounting system: K2 SingleRail and K2 SolidRail systems
Application: Pitched roof
Sales unit: 50 pieces
Carton: 50 pieces
Pallet: 12,800 pieces
Weight per piece: 0.058 kg
Manufacturer’s item number: 2004119
GTIN: 4251786201242
