K2 Self-tapping hexagon head sheet metal screw with sealing washer, 6x25
| Manufacturer Art. No.: | 1000212 |
|---|---|
| Art. Nr.: | 16312 |
| Pieces per package unit: |
|
Prices are only visible to business customers upon successful registration.
- New
Product number:
16312
Description

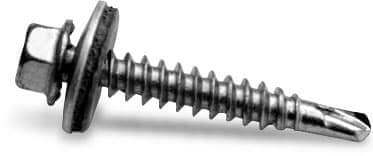

K2 Self-tapping hexagon sheet metal screw with sealing washer, 6x25
With the 6x25 self-tapping hexagon sheet metal screw from K2 Systems, you can securely fasten components to sheet metal surfaces – without pre-drilling. The pre-fitted EPDM sealing washer, with a diameter of 16 mm, permanently seals the hole and protects the penetration from moisture. The screw and washer are made from A2 stainless steel and EPDM respectively, making them ideally suited for continuous outdoor use.
Your benefits
- Self-tapping – no separate pre-drilling required, saving you a step
- Pre-fitted EPDM sealing washer (Ø16 mm) for a permanently sealed penetration
- A2 stainless steel – corrosion-resistant and durable
- External hex SW8 – quick installation with a cordless screwdriver
- Approved for use with sheet steel from 0.5 mm and aluminium from 0.8 mm
- Part of the K2 GreenRoof Vento system with ETA approval
Order now
Do you need these screws for your next project? Order the K2 hexagon sheet metal screw 6x25 directly here in the Memodo Shop – sold in packs of 500.
Examples of use
- Fastening components of the K2 GreenRoof Vento system to a flat roof
- Installation on trapezoidal and steel sheet substrates from 0.5 mm sheet thickness
- Fastening to aluminium substrates from 0.8 mm
Technical data
| Head shape | Hexagonal |
| Diameter | 6.0 mm |
| Length | 25 mm |
| Sealing washer diameter | Ø16 mm |
| Material | A2 stainless steel / EPDM |
| Screw system | External hexagon SW8 |
| Permitted sheet steel thickness | from 0.5 mm |
| Permitted aluminium thickness | from 0.8 mm |
| Installation system | K2 GreenRoof Vento |
| Scope of application | Flat roof |
| Sales unit | 500 pieces |
| Weight per piece | 0.006 kg |
| Approval | ETA certification |
| Manufacturer’s item number | 1000212 |
| GTIN | 4251786200337 |
