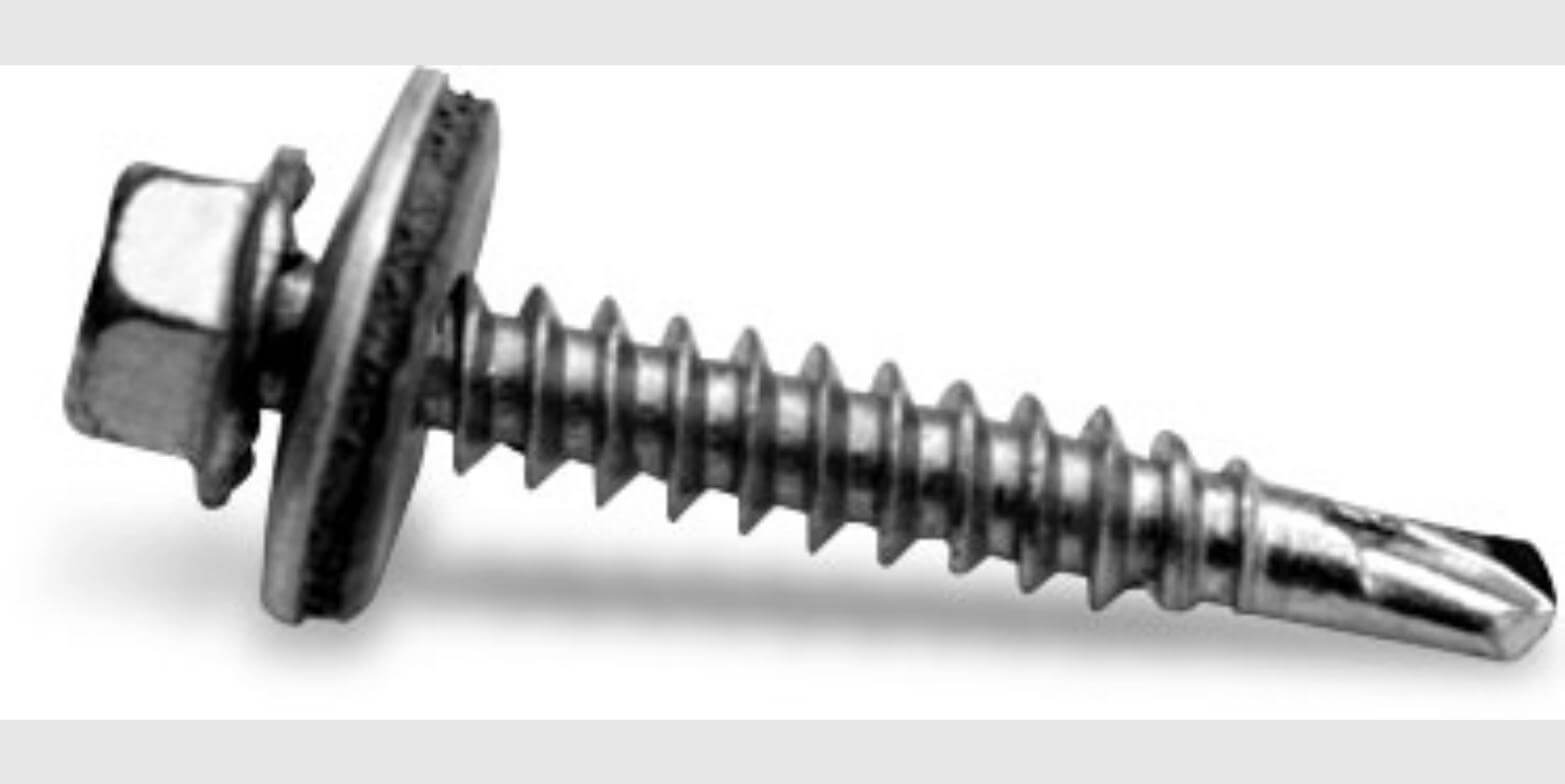

K2 Self-tapping hexagon head sheet metal screw with sealing washer, 6x75

K2 Selbstbohrende Sechskantblechschraube mit Dichtscheibe 6x75

Manufacturer Art. No.:	2003064
Art. Nr.:	16324
Pieces per package unit:	100 per carton 26000 per pallet
Product type:	Screws

Prices are only visible to business customers upon successful registration.

Unfortunately you are not authorised to place orders

To purchase the item you need a certification from the manufacturer.

The article is currently not available in your country.

Please contact your personal contact person to find out the price of the product. You can find your contact person's contact information in your customer account.

There was an error when determining the product availabilty

Product number: 16324

Prices are only visible to business customers upon successful registration.

Unfortunately you are not authorised to place orders

To purchase the item you need a certification from the manufacturer.

The article is currently not available in your country.

Please contact your personal contact person to find out the price of the product. You can find your contact person's contact information in your customer account.

There was an error when determining the product availabilty

Product number: 16324

Tech tip

Ensure you use the specified sheet thickness – steel sheet 0.40–2.00 mm, aluminium 0.50–2.00 mm. Thinner sheets do not provide sufficient support for the self-tapping thread. Tighten the screw only until the sealing washer is in even contact and is lightly compressed: if you overtighten it, the washer will be damaged and the seal will fail. Insert the screw as perpendicular as possible to the surface of the sheet so that the sealing washer bears the load all round.

K2 Self-tapping hexagon sheet metal screw with sealing washer 6x75

With the 6x75 self-tapping hexagon sheet metal screw from K2 Systems, you can securely fasten components to sheet metal surfaces – without pre-drilling. The pre-fitted sealing washer (EPDM, pre-fitted, Ø 16 mm) permanently seals the hole and protects the penetration from moisture. The screw and drill tip are designed for sheet metal substrates: steel sheet 0.40–2.00 mm, aluminium 0.50–2.00 mm. Material: bimetal (A2 stainless steel / steel).

Your benefits

Self-tapping – no separate pre-drilling required, saving you a step
Pre-fitted sealing washer for a permanently sealed penetration
Bimetal (A2 stainless steel / steel) – corrosion-resistant and durable
External hexagon SW8 – quick installation with a cordless screwdriver
Approved sheet thickness: steel sheet 0.40–2.00 mm, aluminium 0.50–2.00 mm
Clamping thickness: timber sub-frame 1–40 mm, steel sub-frame 16–55 mm
Pack size: 100 pieces

Order now

Do you need screws for your next project? Order the K2 hexagon sheet metal screw 6x75 directly here in the Memodo Shop – sold in packs of 100.

Examples of use

Use in the K2 SingleRail system – for fixing the K2 SpliceFoot to timber formwork
Installation on trapezoidal and steel sheet substrates within the approved thickness range
Fastening to aluminium substrates within the approved thickness range

Technical data

Head shape: Hexagonal
Diameter: 6.0 mm
Length: 75 mm
Material: Bimetal (A2 stainless steel / steel)
Sealing washer: EPDM, pre-fitted, Ø 16 mm
Screw system: External hexagon SW8
Approved sheet thickness: steel sheet 0.40–2.00 mm, aluminium 0.50–2.00 mm
Clamping thickness: timber sub-frame 1–40 mm, steel sub-frame 16–55 mm
Mounting system: K2 SingleRail System – for screwing the K2 SpliceFoot to timber formwork
Area of application: Pitched roof
Packaging unit: 100 pieces
Carton: 100 pieces
Pallet: 26,000 pieces
Weight per piece: 0.011 kg
Manufacturer’s item number: 2003064
GTIN: 4251786212408
