K2 Self-tapping timber construction screw with pan head, 6x80

K2 Selbstbohrende Holzbauschraube mit Tellerkopf 6x80

Manufacturer Art. No.:	2004106
Art. Nr.:	16340
Pieces per package unit:	100 per carton 48000 per pallet
Product type:	Screws

Prices are only visible to business customers upon successful registration.

Unfortunately you are not authorised to place orders

To purchase the item you need a certification from the manufacturer.

The article is currently not available in your country.

Please contact your personal contact person to find out the price of the product. You can find your contact person's contact information in your customer account.

There was an error when determining the product availabilty

Product number: 16340

Prices are only visible to business customers upon successful registration.

Unfortunately you are not authorised to place orders

To purchase the item you need a certification from the manufacturer.

The article is currently not available in your country.

Please contact your personal contact person to find out the price of the product. You can find your contact person's contact information in your customer account.

There was an error when determining the product availabilty

Product number: 16340

Tech tip

You must choose the screw length to match the thickness of the load-bearing timber, not just the overall installation height: select the length so that, after allowing for the roof battens and counter-battens, there is sufficient thread remaining inside the rafter. The required minimum screw-in depth is specified in the screw’s approval certificate – consult this before carrying out the installation. Drive the screw in at a low speed and with steady pressure, and seat the pan head only deep enough for it to lie flush: if you countersink it into the timber, you’ll lose the surface area of the head for grip.

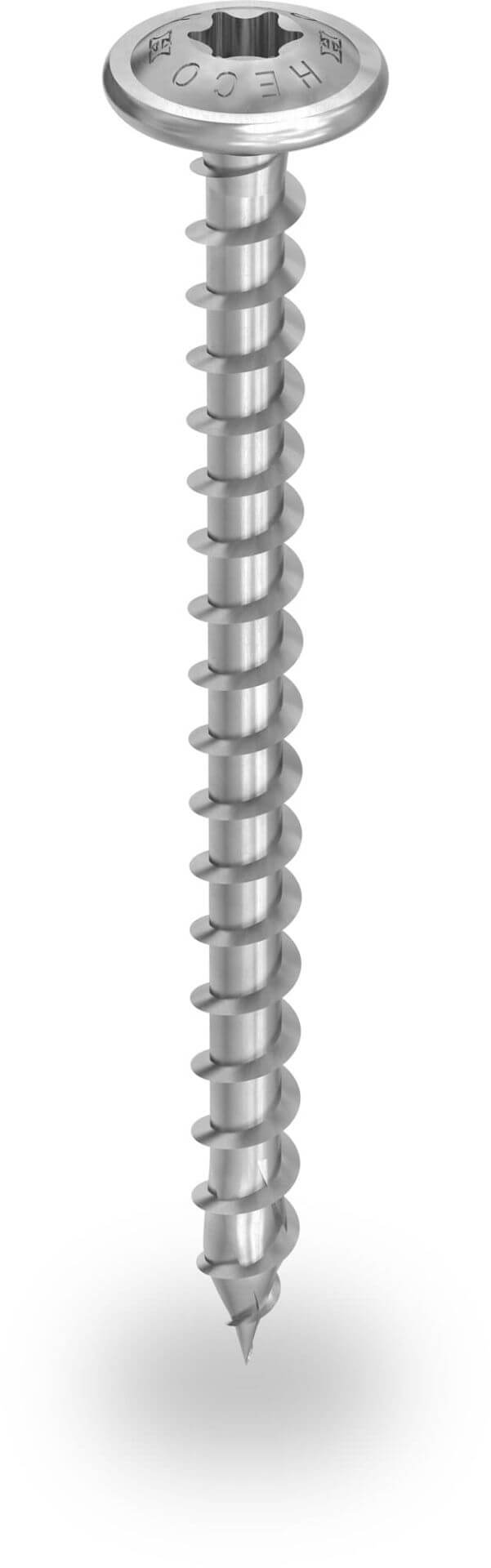

K2 Self-tapping wood screw with pan head, 6x80

Use the 6 mm x 80 flat-head timber construction screw from K2 Systems to secure your PV mounting system to timber. The 14 mm diameter flat head distributes the load over a large area and sinks cleanly into the substrate without splitting it. The screw is self-tapping – no pre-drilling is required. Material: A2 stainless steel, TX 25 hexagon socket drive. It features a fully threaded design.

Your benefits

14 mm pan head – large contact area, high pull-through force
Self-tapping – no pre-drilling required, one less step
A2 stainless steel – corrosion-resistant for continuous outdoor use
TX 25 internal hex drive – transmits high torque without slipping
Fully threaded
For the K2 InsertionRail, K2 SingleRail and K2 SolidRail systems
With ETA certification
Pack size: 100 pieces

Order now

Order the K2 wood construction screw with pan head, 6 mm x 80, directly here in the Memodo Shop – sold in packs of 100.

Examples of use

Fixing roof hooks and rail feet to rafters or timber formwork
Installing the mounting system in the K2 InsertionRail, K2 SingleRail and K2 SolidRail systems
Installation on pitched roofs, where the screw length must match the installation height

Technical data

Head type: Flat head
Flat head diameter: 14 mm
Thread diameter: 6 mm
Length: 80 mm
Thread type: Full thread
Material: A2 stainless steel
Drive: Internal hexagon socket TX 25
Self-tapping: yes
Mounting system: K2 InsertionRail, K2 SingleRail and K2 SolidRail systems
Application: Pitched roof
Sales unit: 100 pieces
Carton: 100 pieces
Pallet: 48,000 pieces
Weight per piece: 0.013 kg
Approval: ETA certification
Manufacturer’s item number: 2004106
GTIN: 4251786200849
