K2 Self-tapping timber construction screw with pan head, 8x180

K2 Selbstbohrende Holzbauschraube mit Tellerkopf 8x180

Manufacturer Art. No.:	2004116
Art. Nr.:	16345
Pieces per package unit:	50 per carton 12800 per pallet
Product type:	Screws

Prices are only visible to business customers upon successful registration.

Unfortunately you are not authorised to place orders

To purchase the item you need a certification from the manufacturer.

The article is currently not available in your country.

Please contact your personal contact person to find out the price of the product. You can find your contact person's contact information in your customer account.

There was an error when determining the product availabilty

Product number: 16345

Prices are only visible to business customers upon successful registration.

Unfortunately you are not authorised to place orders

To purchase the item you need a certification from the manufacturer.

The article is currently not available in your country.

Please contact your personal contact person to find out the price of the product. You can find your contact person's contact information in your customer account.

There was an error when determining the product availabilty

Product number: 16345

Tech tip

You must choose the screw length to match the thickness of the load-bearing timber, not just the overall installation height: select the length so that, after allowing for the roof battens and counter-battens, there is sufficient thread remaining within the rafter. The required minimum screw-in depth is specified in the screw’s approval certificate – refer to this before planning your installation. Drive the screw in at low speed and with even pressure, and seat the pan head only deep enough for it to lie flat: if you countersink it into the timber, you’ll lose the head’s bearing surface.

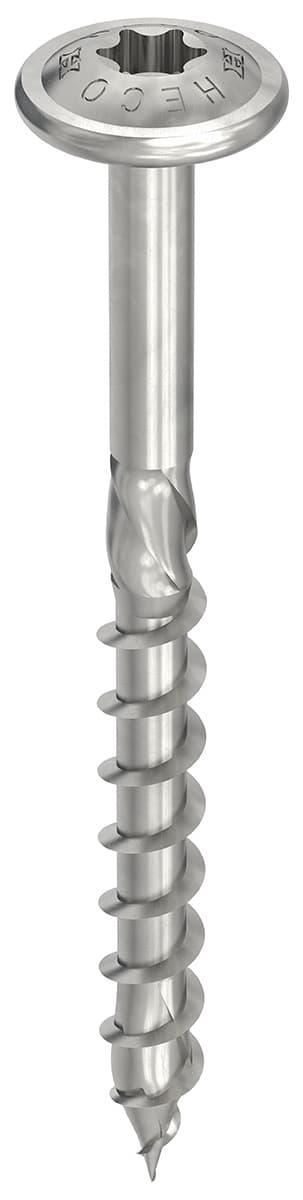

K2 Self-tapping wood screw with flat head, 8x180

Use the 8 mm x 180 flat-head timber construction screw from K2 Systems to secure your PV mounting system to timber. The 18 mm diameter flat head distributes the load over a large area and sinks cleanly into the substrate without splitting it. The screw is self-tapping – no pre-drilling required. Material: A2 stainless steel, TX 40 internal hex drive. It features a partial thread.

Your benefits

18 mm pan head – large contact area, high pull-through force
Self-tapping – no pre-drilling required, one less step
A2 stainless steel – corrosion-resistant for continuous outdoor use
TX 40 internal hex drive – transmits high torque without slipping
Partial thread
For K2 InsertionRail, K2 SingleRail and K2 SolidRail systems
With ETA certification
Pack of 50

Order now

Order the K2 timber construction screw with flat head 8 mm x 180 directly here in the Memodo Shop – sold in packs of 50.

Examples of use

Fixing roof hooks and rail feet to rafters or timber formwork
Installation of the mounting system in the K2 InsertionRail, K2 SingleRail and K2 SolidRail systems
Installation on pitched roofs, where the screw length must match the installation height

Technical data

Head type: Flat head
Flat head diameter: 18 mm
Thread diameter: 8 mm
Length: 180 mm
Thread type: Partial thread
Material: A2 stainless steel
Drive: Hexagon socket TX 40
Self-tapping: yes
Mounting system: K2 InsertionRail, K2 SingleRail and K2 SolidRail systems
Application: Pitched roof
Sales unit: 50 pieces
Carton: 50 pieces
Pallet: 12,800 pieces
Weight per piece: 0.044 kg
Approval: ETA certification
Manufacturer’s item number: 2004116
GTIN: 4251786201136
