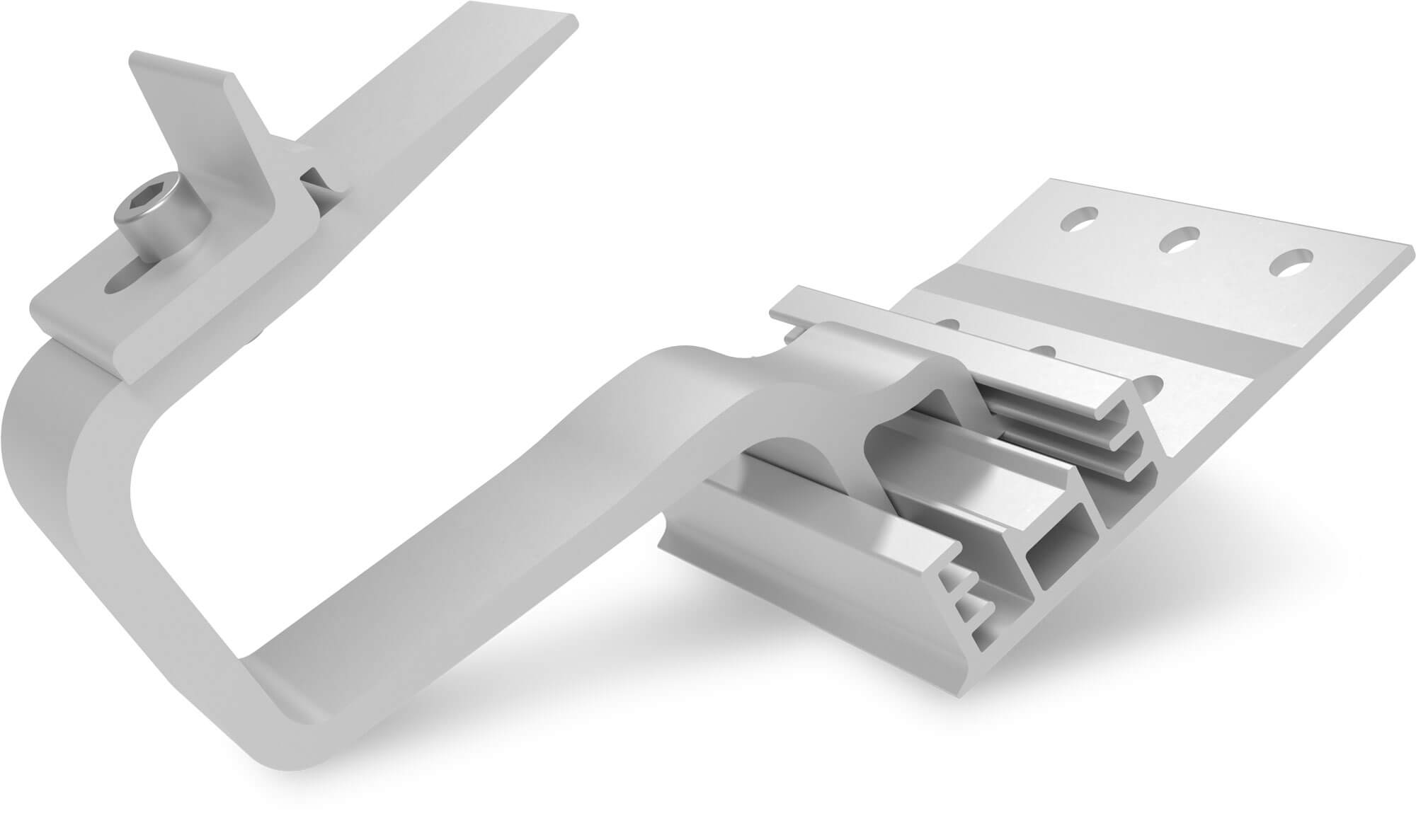

K2 SingleHook 3S Light
| Manufacturer Art. No.: | 2004795 |
|---|---|
| Art. Nr.: | 13857 |
| Pieces per package unit: |
|
| Type of roof: | Pan tile |
Flexible roof mounting with the SingleHook 3S Light from K2
The SingleHook 3S Light offers maximum flexibility thanks to three-stage height adjustment in the base plate (40, 47 and 54 mm). It is ideal for rafters from 48 mm – and even for narrow rafters from 36 mm when used in combination with an M6 timber screw. The 6 mm thick bracket ensures exceptional stability and makes the hook perfect for concrete roof tiles. Includes a pre-assembled Climber 36/50 and matching cylinder head screw – for quick, safe and convenient installation.
Product benefits:
- Suitable for narrow rafters
- Adjustable in height and sideways
- Ideal for interlocking tiles
- With European Technical Approval ETA 16/070
- 12-year product warranty
Product features K2 SingleHook 3S Light:
- Material: Aluminium
- Base plate width: 100 mm
- Height under bracket: 40/47/54 mm
- Arm height: 59 mm
- Total height: 123–137 mm
- Depth of arm: 83 mm
About K2 Systems:
The German manufacturer K2 develops innovative mounting system solutions for PV systems. With more than 15 years of market experience and 8 different locations, the Swabian manufacturer has established itself as a specialist in rooftop installations and holds a significant market share in this sector. Thanks to in-house development, the systems can be flexibly adapted and optimised for the market on a country-by-country basis.
