K2 SingleHook FlatTile
| Manufacturer Art. No.: | 2004416 |
|---|---|
| Art. Nr.: | 10360 |
| Pieces per package unit: |
|
| Type of roof: | Beaver-tail |

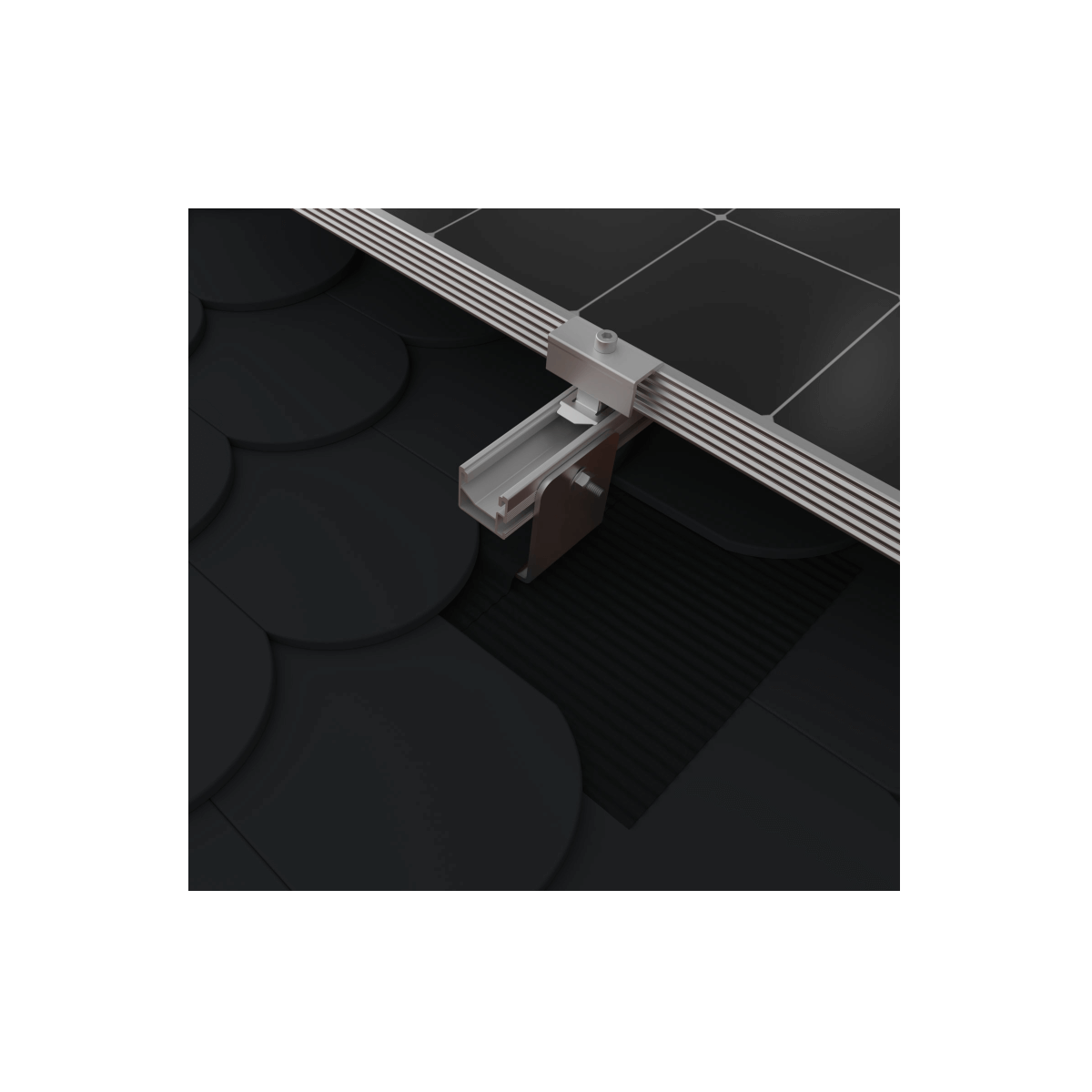

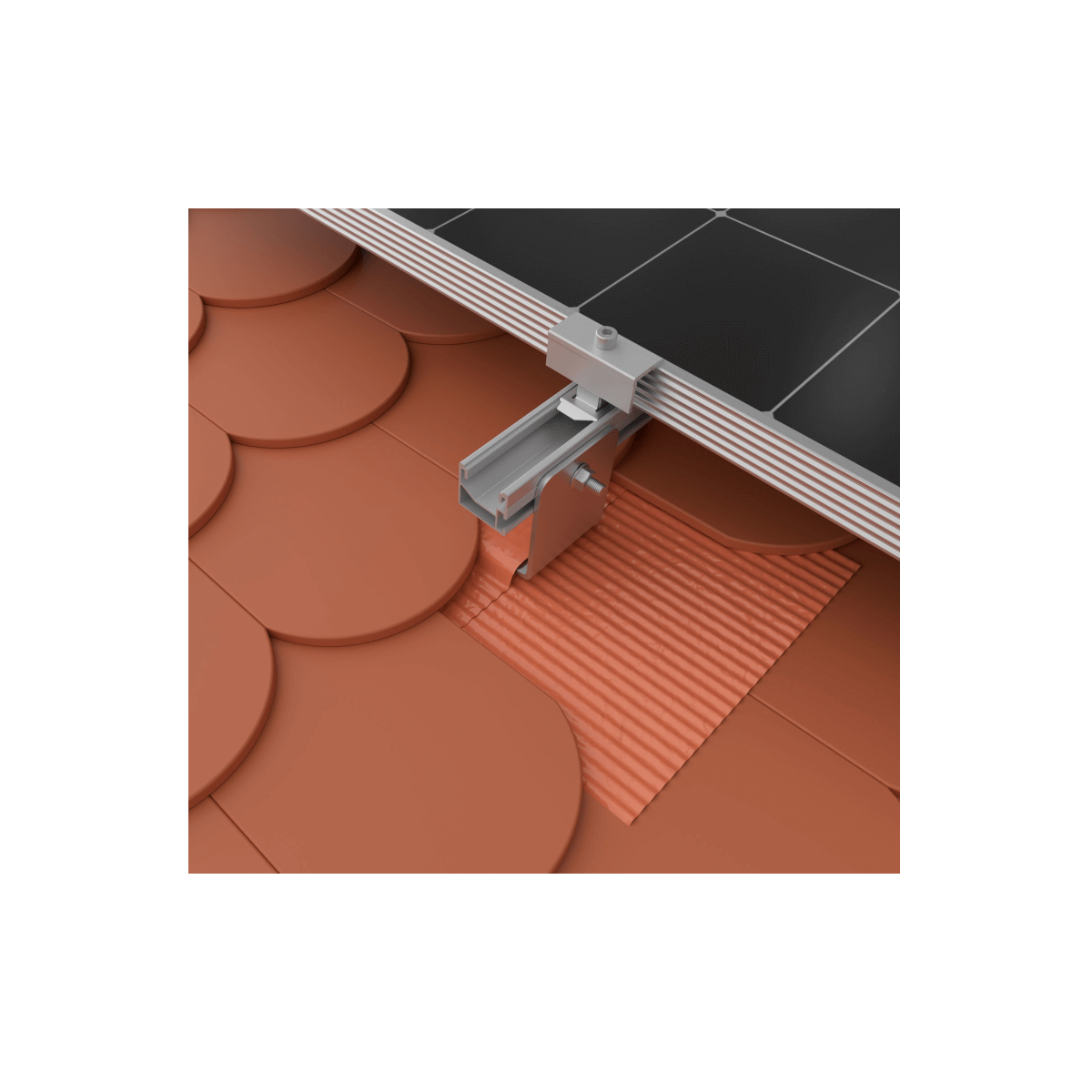

Roof hook for plain tiles: the SingleHook FlatTile from K2
The roof hook for the SingleRail system by K2 is suitable for tiled roofs with plain tiles. To attach the SingleRail, one M8x20 hammer-head screw and one M8 collar nut are required per roof hook. It features a slotted hole for SingleRail installation. You will also need two metal roof plates per roof hook. The roof hook has a height of approx. 144 mm and a 75x4 mm bracket. This allows the K2 system to be securely fastened.
Product benefits:
- Suitable for the K2 SingleRail system
- 12-year product warranty
Product features K2 SingleHook FlatTile:
- Material: Magnelis 1.0242 (S250GD+ZM310)
- Adjustable
- Height: 144 mm
- Weight: 0.625 kg
About K2 Systems:
The German manufacturer K2 develops innovative mounting system solutions for PV systems. With over 15 years’ market experience and eight different locations, the Swabian manufacturer has established itself as a specialist in rooftop installations and holds a significant market share in this sector. Thanks to in-house development, the systems can be flexibly adapted and optimised for specific markets.
-
