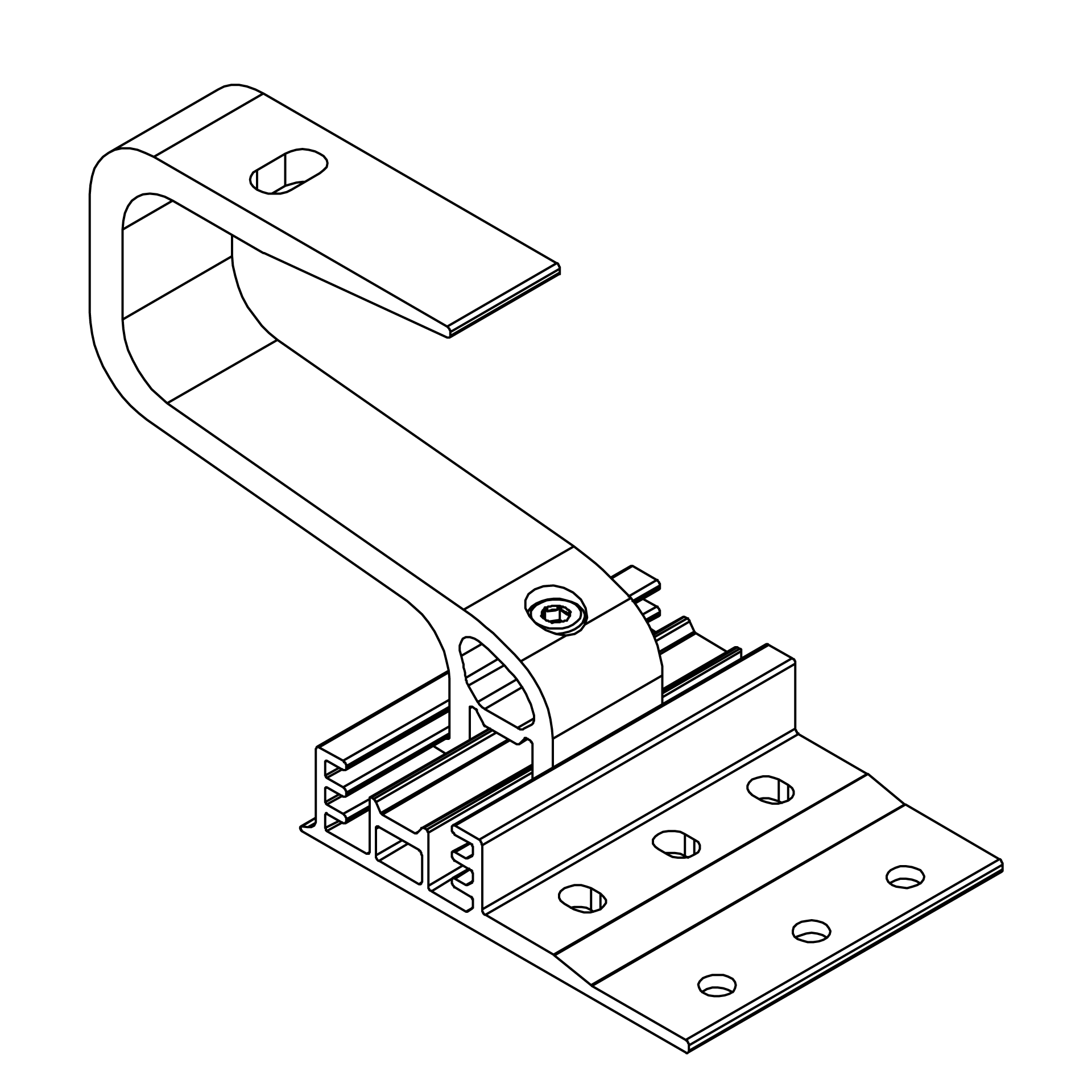

K2 SolidHook 3S+
| Manufacturer Art. No.: | 2002390 |
|---|---|
| Art. Nr.: | 12966 |
| Pieces per package unit: |
|
| Type of roof: | Pan tile |
Flexible roof mounting with the SolidHook 3S+ from K2
The SingleHook 3S from K2, which is height-adjustable in three stages, is ideal for narrow rafters from 36 mm and adapts flexibly to the roof. As an integral part of the SingleRail system, it is compatible with the other components in the product range. The SingleHook 3S is supplied with a pre-assembled Climber 36/48 and a cylinder head screw.
Product benefits:
- Suitable for narrow rafters
- Height and side adjustable
- Ideal for interlocking tiles
- With European Technical Approval ETA 16/070
- 12-year product warranty
Product features K2 SolidHook 3S:
- Material: Aluminium
- Base plate width: 100 mm
- Height under bracket: 40/47/54 mm
- Arm height: 56 mm
- Overall height: 123–137 mm
- Depth of arm: 83 mm
About K2 Systems:
The German manufacturer K2 develops innovative mounting system solutions for PV systems. With more than 15 years of market experience and 8 different locations, the Swabian manufacturer has established itself as a specialist in rooftop installations and holds a significant market share in this sector. Thanks to in-house development, the systems can be flexibly adapted and optimised for the market on a country-by-country basis.
