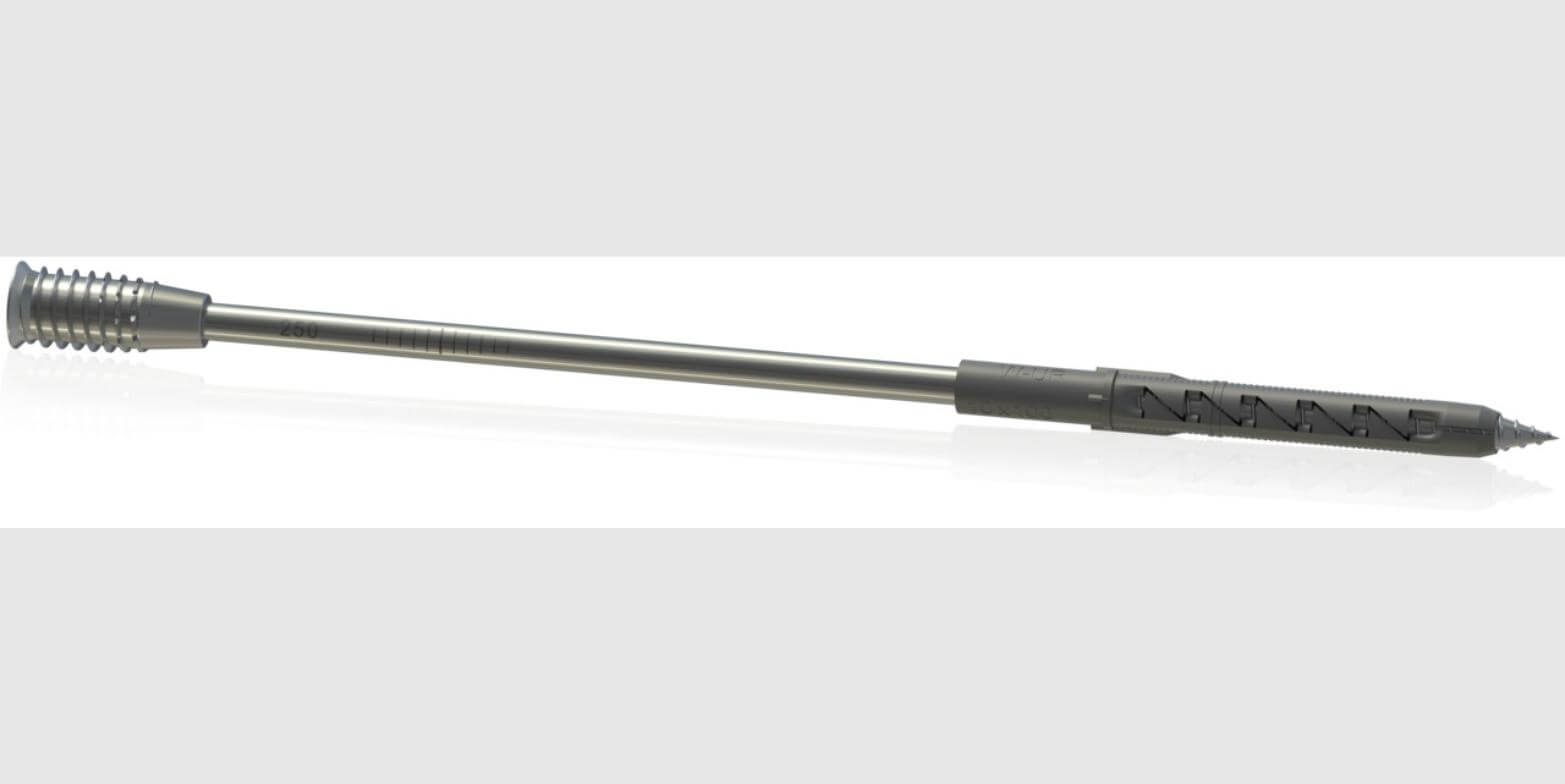

K2 Spacer Anchor Screw RDS-CA 10x350

datamints-memodo.product-listing.placeholder-alt

Manufacturer Art. No.:	2004747
Art. Nr.:	16335
Pieces per package unit:	30 per carton 4800 per pallet
Product type:	Screws

Prices are only visible to business customers upon successful registration.

Unfortunately you are not authorised to place orders

To purchase the item you need a certification from the manufacturer.

The article is currently not available in your country.

Please contact your personal contact person to find out the price of the product. You can find your contact person's contact information in your customer account.

There was an error when determining the product availabilty

Product number: 16335

Prices are only visible to business customers upon successful registration.

Unfortunately you are not authorised to place orders

To purchase the item you need a certification from the manufacturer.

The article is currently not available in your country.

Please contact your personal contact person to find out the price of the product. You can find your contact person's contact information in your customer account.

There was an error when determining the product availabilty

Product number: 16335

Tech tip

You should select the length based on the thickness of the insulation, not the wall thickness – add together the insulation, the profile overlap and the required screw-in depth into the substrate. Drill hole diameter, embedment depth, edge distances and tightening torque are specified in the building authority approval Z-21.2-2130 and the manufacturer’s installation instructions: for façade fixings, this must be verified; do not rely on experience alone. Start drilling at a low speed and blow out the drill hole beforehand – drill dust at the bottom of the hole reduces load-bearing capacity. Separate values apply to perforated blocks; check the substrate beforehand.

K2 Spacer Anchor Screw RDS-CA 10x350

The RDS-CA 10x350 spacer anchor screw allows you to fix a secondary aluminium mounting system at a distance from masonry or concrete – leaving the insulation layer in between undisturbed. It serves as a mounting system for the K2 InsertionRail in the K2 WallPV system, i.e. for PV on the façade. The length depends on the thickness of the insulation material: this variant covers 350 mm. The material is A4 stainless steel; the surface is pickled, passivated and has a lubricating coating.

Your benefits

Spaced installation – the aluminium mounting system is positioned at a defined distance from the substrate
The insulation layer is not compressed, so the insulating effect is maintained
A4 stainless steel – the highest of the standard corrosion resistance classes, suitable for façades
Countersunk head with hex socket 6 – flat finish, capable of transmitting high torque
Partial thread with a thread length of 100 mm (L1)
Surface pickled, passivated and coated with a lubricant – lower insertion torque
Building authority approval Z-21.2-2130 (DIBt) for concrete and masonry
Packaging unit: 30 pieces

Order now

Order the K2 spacer anchor screw RDS-CA 10x350 directly here in the Memodo Shop – sold in packs of 30. Select the appropriate length to suit your insulation thickness.

Application examples

Facade PV with K2 WallPV: Fixing the aluminium mounting system to insulated masonry
Mounting system for the K2 InsertionRail on the wall
Anchoring in concrete or masonry with an insulation layer of 350 mm in front of the structure

Technical data

Head shape: Countersunk head
Diameter: 10.0 mm
Length: 350 mm
Thread type: Partial thread, thread length L1 100 mm
Material: A4 stainless steel
Surface finish: pickled, passivated, slip-coated
Drive: Hex socket 6
Mounting system: K2 WallPV
Application: Façade
Substrates: Masonry and concrete
Approval: Z-21.2-2130 (DIBt), approval holder REISSER-Schraubentechnik
Packaging unit: 30 pieces
Carton: 30 pieces
Pallet: 4,800 pieces
Weight per piece: 0.120 kg
Manufacturer’s item number: 2004747
GTIN: 4251786216833
