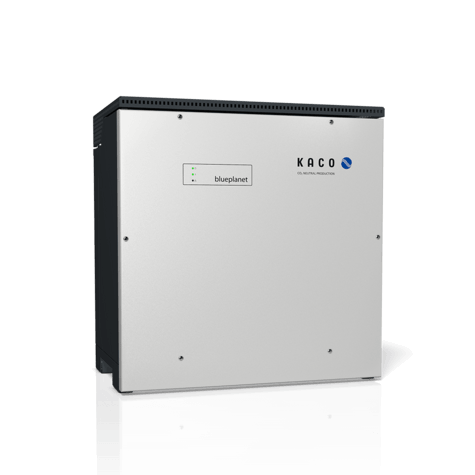

Kaco blueplanet gridsave 137 TL3-S B1 WM OD IIPX (XL version)

Kaco blueplanet gridsave 137 TL3-S B1 WM OD IIPX (Version XL)

Type of manufacturer:	blueplanet gridsave 137 TL3-S B1 WM OD IIPX
Manufacturer Art. No.:	1002012
Art. Nr.:	14994
Phases:	3
Inverter type:	Battery inverter
AC power:	137 kW
Warranty:	5 years
Communication:	Ethernet (Modbus TCP SunSpec), USB
MPP voltage range:	1002-1315 Volt

Prices are only visible to business customers upon successful registration.

Unfortunately you are not authorised to place orders

To purchase the item you need a certification from the manufacturer.

The article is currently not available in your country.

Please contact your personal contact person to find out the price of the product. You can find your contact person's contact information in your customer account.

There was an error when determining the product availabilty

Product number: 14994

Prices are only visible to business customers upon successful registration.

Unfortunately you are not authorised to place orders

To purchase the item you need a certification from the manufacturer.

The article is currently not available in your country.

Please contact your personal contact person to find out the price of the product. You can find your contact person's contact information in your customer account.

There was an error when determining the product availabilty

Product number: 14994

Kaco blueplanet gridsave 137 TL3‑S battery inverter (XL version)

The blueplanet gridsave 137 TL3‑S is a bidirectional, three-phase battery inverter with a capacity of 137 kVA, designed for commercial storage systems and large-scale energy storage systems, including those in the utility sector. Thanks to silicon carbide (SiC) technology, it achieves efficiency levels of up to 98.89% during discharge. The XL version is equipped with an integrated pre-charge unit, a DC fuse and a two-pole DC load relay (+/−). Up to two units can be operated in parallel on the DC side.

Note: The blueplanet gridsave 137 TL3‑S operates at a rated AC voltage of 600 V and is connected to the grid via its own transformer (e.g. medium-voltage connection).

This is a project-specific product. Please contact your sales representative for quantity planning and project pricing.

Product benefits

High efficiency thanks to SiC technology: charging 98.74%, discharging 98.89%.
XL version with integrated pre-charge unit, DC fuse and DC load relays (+ and −).
Reactive power 0–100% _{of rated} (cos φ 0.3–1 ind./cap.) for grid services.
DC parallel operation of up to 2 units possible.
Open communication via Modbus TCP (SunSpec-compliant) for easy integration into energy management systems.
Robust IP66 enclosure for indoor and outdoor installation, developed and manufactured in Germany.

Product features

DC operating voltage range (battery): 1,002–1,315 V; max. DC voltage 1,315 V.
DC rated current 145 A; max. DC current (I_SC) 300 A.
AC rated power 137 kVA, rated voltage 600 V (3P+PE), voltage range 480–760 V, rated current 3 × 132.3 A, 50/60 Hz.
Total harmonic distortion < 3 per cent; self-consumption < 8 W (< 14 W with relay engaged).
Interfaces: 2× Ethernet (RJ45), USB, potential-free fault signal relay (30 V DC / 1 A).
Protection class I, protection rating IP66 / NEMA 4X, ambient temperature –20 °C to +60 °C, installation altitude up to 3,000 m.
Temperature-controlled fan cooling, noise emission < 60 dB(A).
Dimensions (H × W × D): 719 × 699 × 450 mm; weight: 82 kg.

Scope of delivery

Battery inverter with bracket and mounting kit
Manual / Quick Guide (multilingual)
