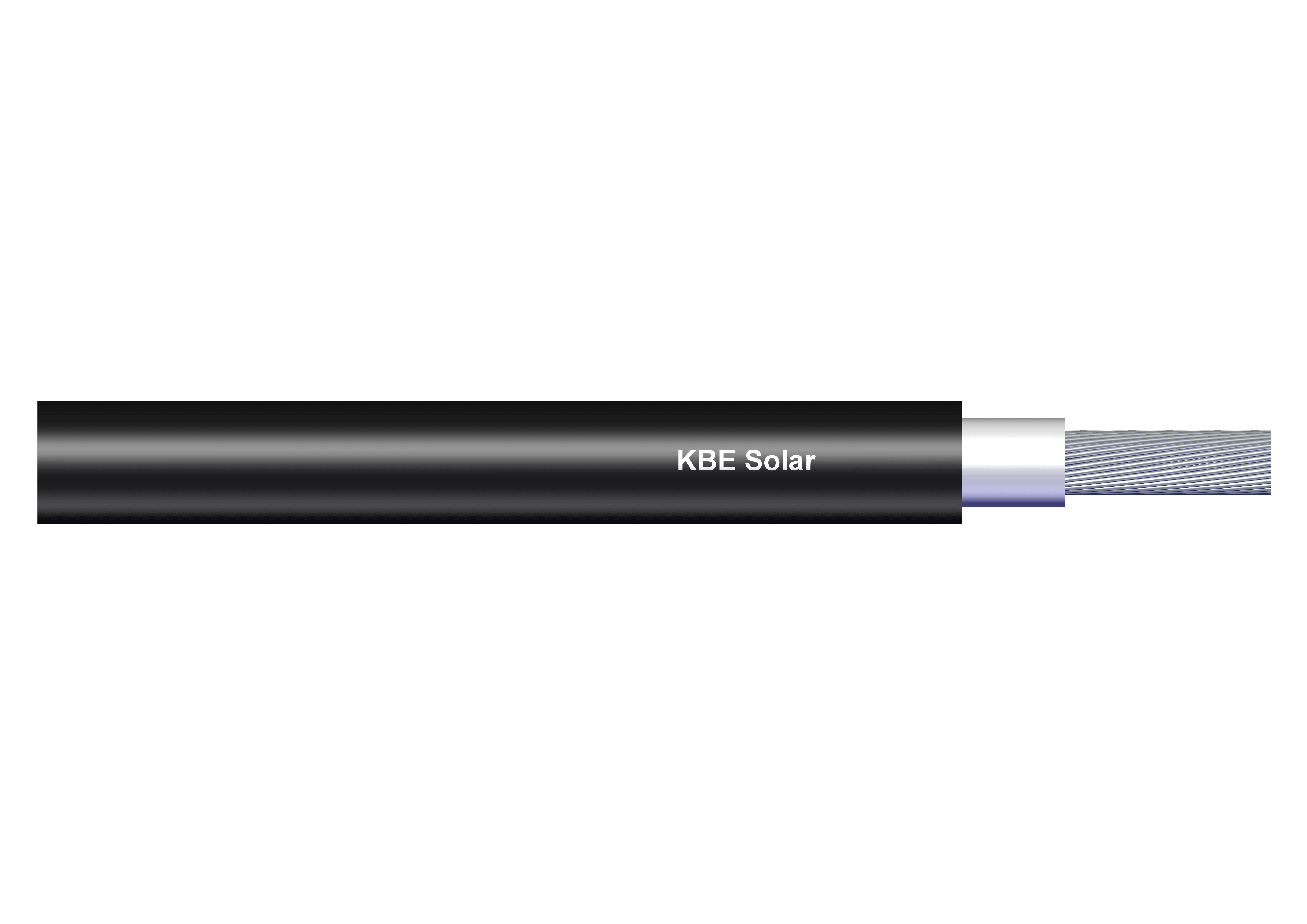

KBE solar cable DB+, 6mm², 100m, black
| Type of manufacturer: | H1Z2Z2-K 6,0 sw |
|---|---|
| Manufacturer Art. No.: | 820600015060QUSW |
| Art. Nr.: | 11713 |
| Pieces per package unit: |
|
| Accessory type: | DC solar cable |
Prices are only visible to business customers upon successful registration.
On request
Product number:
11713
Description
KBE Solar DB+ black, 6 mm², DA 6 mm
The KBE Solar DB+ solar cable from KBE Elektrotechnik GmbH is manufactured in Berlin and is ideal for DC installations. This triple-certified solar cable meets the latest technical requirements and has been tested in accordance with the EN 50618, IEC 62930 and TÜV 2 PfG 1169/10.19 standards. With its excellent UV and water resistance, as well as high insulation and mechanical stability, it offers a reliable installation solution.
Product benefits:
- Triple TÜV certification guarantees the highest standards.
- Rated for high voltages up to 1,800 VDC, ideal for high-performance systems.
- High UV and water resistance increases durability under extreme conditions.
- Suitable for underground installation thanks to high-quality insulation materials.
- "Made in Germany" promises quality and reliable manufacturing.
Technical specifications:
- Rated voltage: 1,500 VDC (max. 1,800 VDC)
- Cross-section: 6 mm²
- Outer diameter: 6 mm
- Colour: Black
- UV-resistant
- Water-resistant
- Insulation material: Cross-linked special polyolefin
- High mechanical strength
- Fire class: Dca according to BauPVO
- Certificates: EN 50618, IEC 62930, TÜV 2 PfG 1169/10.19
- Product service life: 25 years according to EN 50618
- Packaging: 100 m reel
