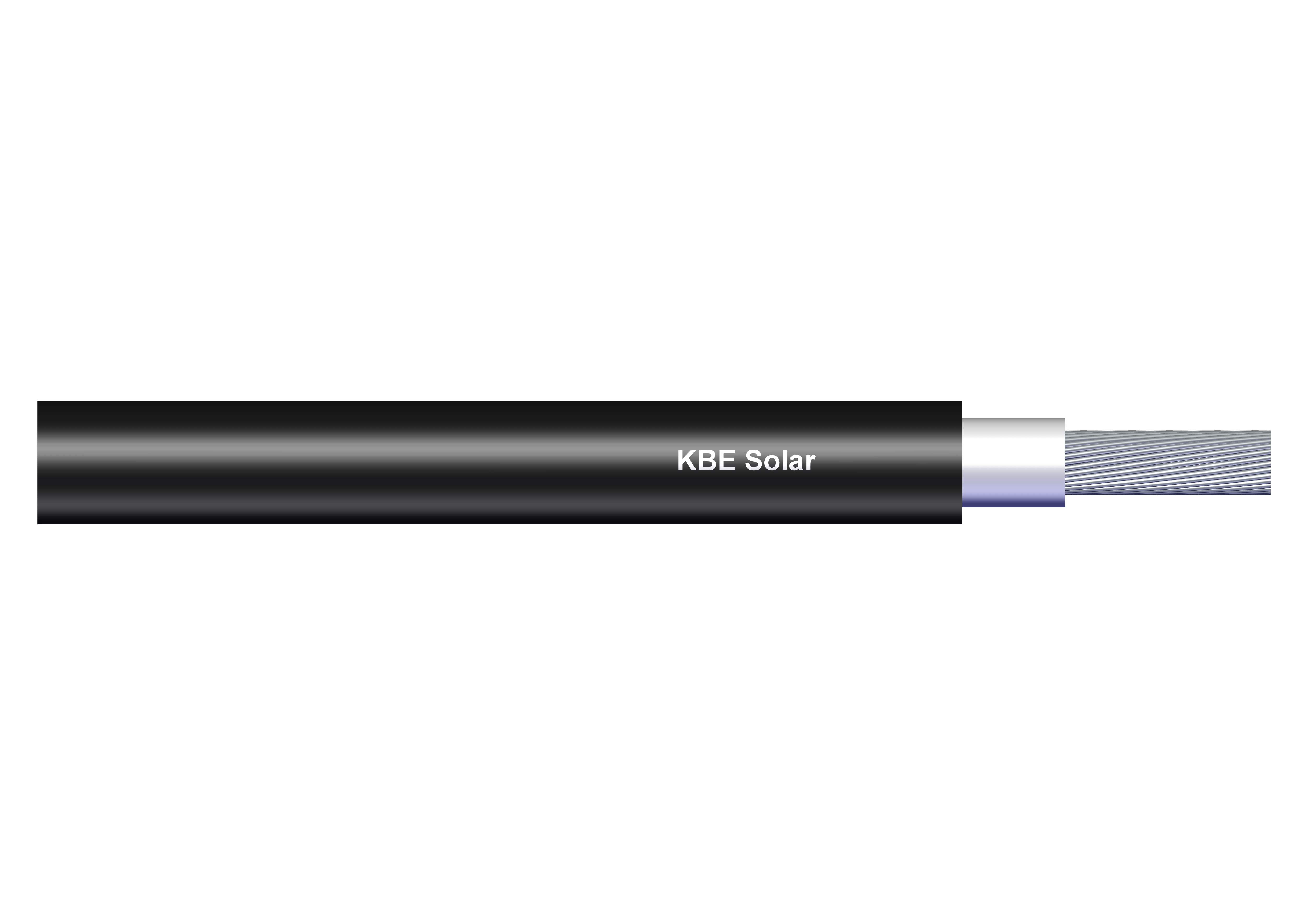

KBE solar cable DB+, 6mm², 500m, black
| Type of manufacturer: | H1Z2Z2-K 6,0 sw |
|---|---|
| Manufacturer Art. No.: | 730600015060QUSW |
| Art. Nr.: | 11719 |
| Pieces per package unit: |
|
| Accessory type: | DC solar cable |
KBE Solar DB+ black, 6 mm², Da 6 mm
Successor to 5752 – Helukabel Solarflex H1Z2Z2-K solar cable, 6.0 mm², 500 m, black
The KBE Solar DB+ solar cable from KBE Elektrotechnik GmbH is manufactured in Berlin and is perfect for DC installations. This triple-certified solar cable meets the latest technical requirements and is tested in accordance with the standards EN 50618, IEC 62930 and TÜV 2 PfG 1169/10.19. With its excellent UV and water resistance, as well as high insulation and mechanical stability, it offers a reliable installation solution. The cables are designed for voltages up to 1,800 VDC and are ideally suited for floating PV systems.
Product benefits:
Triple TÜV certification guarantees the highest standards.
Rated for high voltages up to 1,800 VDC, ideal for high-performance systems.
High UV and water resistance increases durability under extreme conditions.
Suitable for underground installation thanks to high-quality insulation materials.
Optimised for use in floating PV systems (FPV).
"Made in Germany" promises quality and reliable manufacturing.
Technical specifications:
Rated voltage: 1,500 VDC (max. 1,800 VDC)
Cross-section: 6 mm²
Outer diameter: 6 mm
Colour: Black
UV-resistant
, water-resistant
Insulation material: Cross-linked special polyolefin
, high mechanical stability
Fire class: Dca according to BauPVO
Certificates: EN 50618, IEC 62930, TÜV 2 PfG 1169/10.19
Product service life: 25 years according to EN 50618
Packaging: 500 m drum
-
