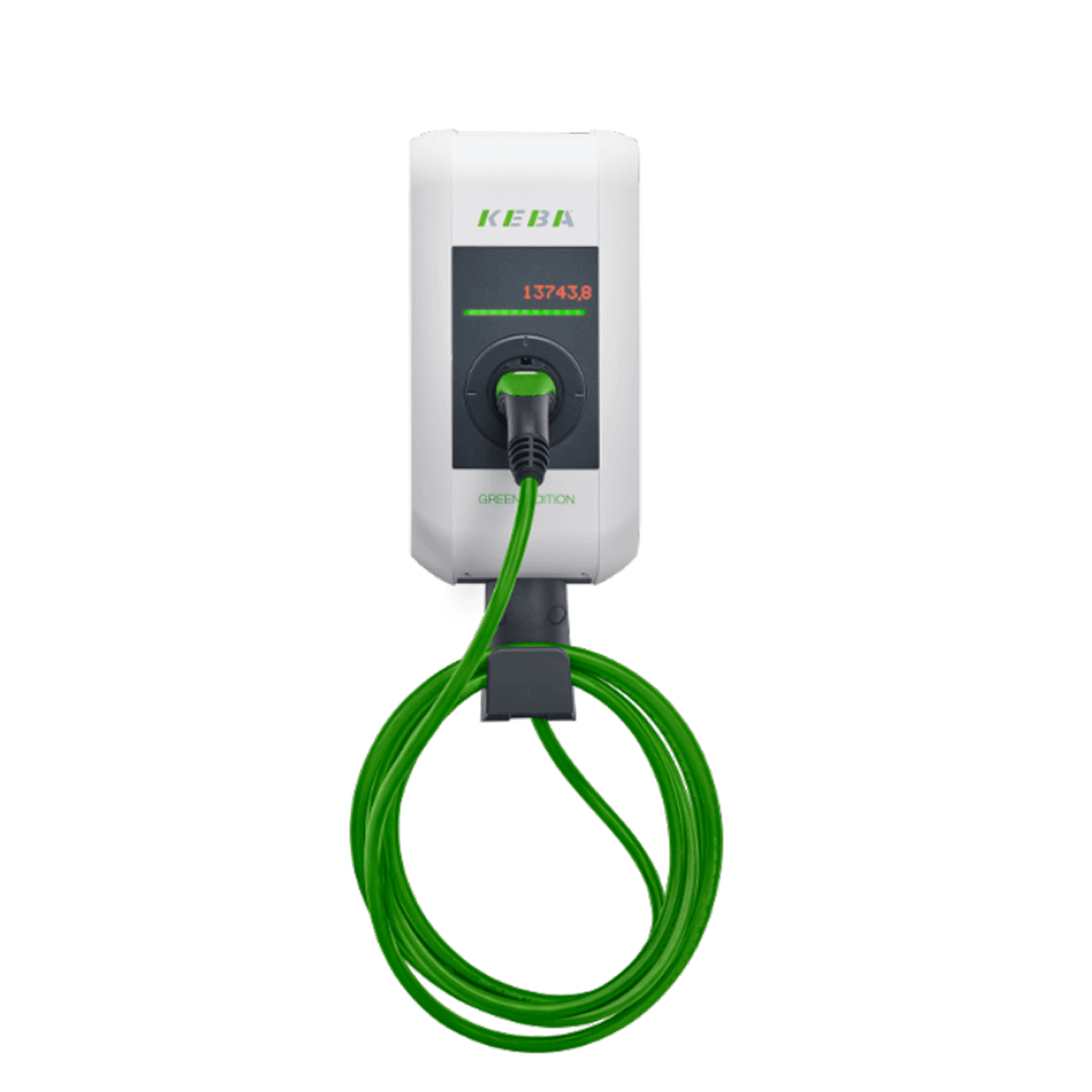

KEBA KeContact P30 X-Series Green Edition, PnC, cable
| Type of manufacturer: | KC-P30-EC2404B2-E0P-GE |
|---|---|
| Manufacturer Art. No.: | 128 825 |
| Art. Nr.: | 10649 |
| Pieces per package unit: |
|
| Power: | 22 kilowatt |
| Number of charging points: | 1 |
| Access control: | No |
| AC phases: | 3 |
| Surplus charging: | Yes |
| Charging port: | Cable |
| Energy meter: | Simple digital reading |
| Electric charging system: | Commercial (semi-public), Private, Wallbox |
Prices are only visible to business customers upon successful registration.
Product number:
10649
-
-
{ "id": "577feeadaa065f369a67083c123db847", "item_brand": "", "item_name": "reev Connect setup kit with SIM card", "item_id": "10138", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "577feeadaa065f369a67083c123db847" } } -
{ "id": "d978b0037e965acba3344f2199dd375a", "item_brand": "", "item_name": "reev Connect Compact AC license key", "item_id": "10131", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "d978b0037e965acba3344f2199dd375a" } } -
{ "id": "ea1f539b678b5ba3b14a4a3f77fb442a", "item_brand": "", "item_name": "Reev Pro Energy Hub licence", "item_id": "10135", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "ea1f539b678b5ba3b14a4a3f77fb442a" } }
-
Description
Smart connectivity, communication and control with the KeContact P30 X-Series Green Edition, featuring simple digital metering
Due to a lack of compatibility with ISO 15118-20:2022, this Wallbox should no longer be installed from 1 January 2027.
The CO₂-neutral KEBA KeContact P30 X-Series Green Edition wallbox with simple digital metering features intelligent interfaces for communicating with smart home devices. The Wallbox is hub/satellite-compatible and functions as a hub. It can therefore be connected to up to 15 C-Series units, enabling local load management.
Furthermore, the P30 X-Series is now also hardware-ready for the Plug&Charge function (ISO 15118). This will enable electric cars to be automatically authorised at the Wallbox in future. True to the motto: plug in and start charging straight away. However, it is important to note that this function must also be supported by the electric car.
Surplus PV charging is only possible with the KeContact E10 Smart meter (item no. 10762).
Automatic phase switching is only possible with the KeContact S10 phase switcher (item no. 10763).
Product benefits
- Plug & Charge ready (ISO 15118)
- Suitable for indoor and outdoor installation
- OCPP 1.5/1.6
- Suitable for private and semi-public use
- Includes monitoring and load management
- Communication interfaces: USB, Ethernet, UDP, Modbus TCP, Wi-Fi
- Integrated energy meter with simple digital measurement
- DC fault current detection
- Hub/satellite communication
Product features: KEBA KeContact P30 X-Series Green Edition, PnC, cable
- 3-phase mains connection
- 22 kW charging power
- Adjustable charging current (10 / 13 / 16 / 20 / 25 / 32 A)
- 1- / 3-phase
- Type 2 cable, 6 m
- Local load management: Hub
- Meter: none (simple digital measurement)
- Dimensions: 643 x 240 x 142 mm (H x W x D)
- Weight: 7.6 kg
- IP54
Compatible system integration
- SmartFox
- Solar-Log
- and many more!
-
