Kostal Energy Meter MP
| Type of manufacturer: | KOSTAL Energy Meter MP |
|---|---|
| Manufacturer Art. No.: | 12228478 |
| Art. Nr.: | 15947 |
| Pieces per package unit: |
|
| Accessory type: | Data-logger |
Prices are only visible to business customers upon successful registration.
- New
Product number:
15947
-
-
{ "id": "2c84b1eb876f5f34b7d43775d551e212", "item_brand": "", "item_name": "Kostal Plenticore MP G3M 4.6 - 7.0 kW single-phase", "item_id": "13941", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "2c84b1eb876f5f34b7d43775d551e212" } } -
{ "id": "221ba5658f93548b9f9ff94c4ef89efe", "item_brand": "", "item_name": "Kostal Plenticore MP G3S 3.0 - 4.0 kW single-phase", "item_id": "13940", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "221ba5658f93548b9f9ff94c4ef89efe" } }
-
Description

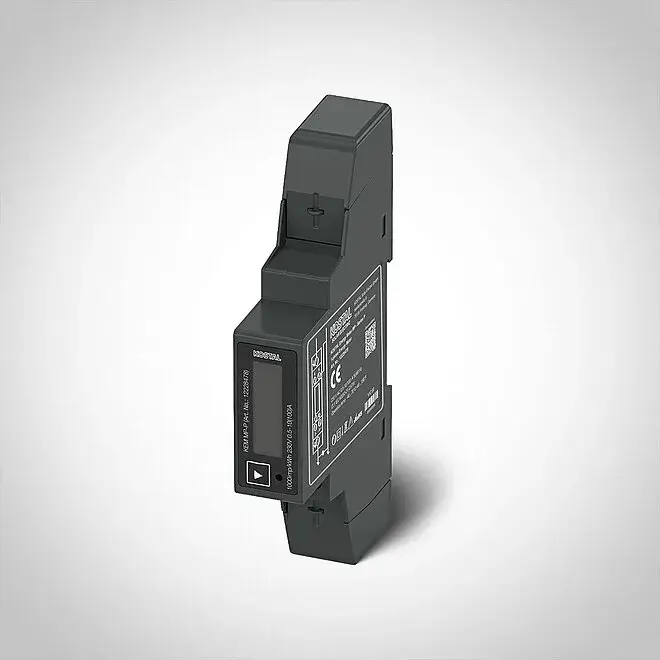

Kostal Energy Meter MP Measurement and Control Unit
The Kostal Energy Meter MP – Series P is a precise single-phase power meter for energy monitoring in PV systems. It is specifically designed to work with the Kostal PLENTICORE MP G3 Inverter and enables precise bidirectional measurement of active and reactive energy – the basis for Self-consumption optimisation, zero feed-in and energy monitoring. Communication takes place via RS485 using the Modbus/RTU protocol, allowing it to be reliably integrated into existing energy management systems. The compact housing, compliant with DIN 43880, ensures space-saving mounting on the top-hat rail in the control cabinet.
Single-phase unit!
Product benefits
- Specially designed for Kostal PLENTICORE MP G3
- Bidirectional energy measurement (feed-in & consumption)
- High measurement accuracy: Class 1 (active energy in accordance with EN 62053-21), Class 2 (reactive energy in accordance with EN 62053-23)
- Easy integration via RS485/Modbus RTU
- Compact, space-saving housing in accordance with DIN 43880
- Robust in operation: -40 °C to +70 °C, IP51
- 2-year manufacturer’s warranty
Product features: Kostal Smart Energy Meter G2
- Single-phase meter, 230 V AC (input voltage range 176–276 V)
- Current range 0.5–10(100) A, rated current 10 A
- Frequency 50/60 Hz
- Meter constant: 1000 pulses/kWh
- Protection class III, pollution degree 2
- Dimensions (H/W/D): 90 × 18 × 66 mm, weight 90 g
- Operating altitude up to 2000 m, relative humidity max. 95% (non-condensing)
- Communication: RS485, Modbus/RTU
-
