Kostal Plenticore plus 10 G2 with Dyness Tower Pro TP11 11.52 kWh
| Art. Nr.: | 16825 |
|---|---|
| Inverter: | Kostal Plenticore plus 10 G2 |
| Phases: | 3 |
| Solar battery: | Dyness Tower Pro TP11 11,52 kWh |
| Net capacity: | 10.94 kWh |
| Battery type: | High volt lithium-iron-phosphate |
| Package type: | 3-phase, High voltage battery, Solar battery packages |
-
-
{ "id": "3e2ac886da205aa08c69bad6a1bbbd88", "item_brand": "", "item_name": "Kostal Plenticoin Card EU without DE", "item_id": "14309", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "3e2ac886da205aa08c69bad6a1bbbd88" } } -
{ "id": "ab2cf80857d859adb0ca8444d783f149", "item_brand": "", "item_name": " Kostal Smart Energy Meter G2", "item_id": "7613", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "ab2cf80857d859adb0ca8444d783f149" } }
-

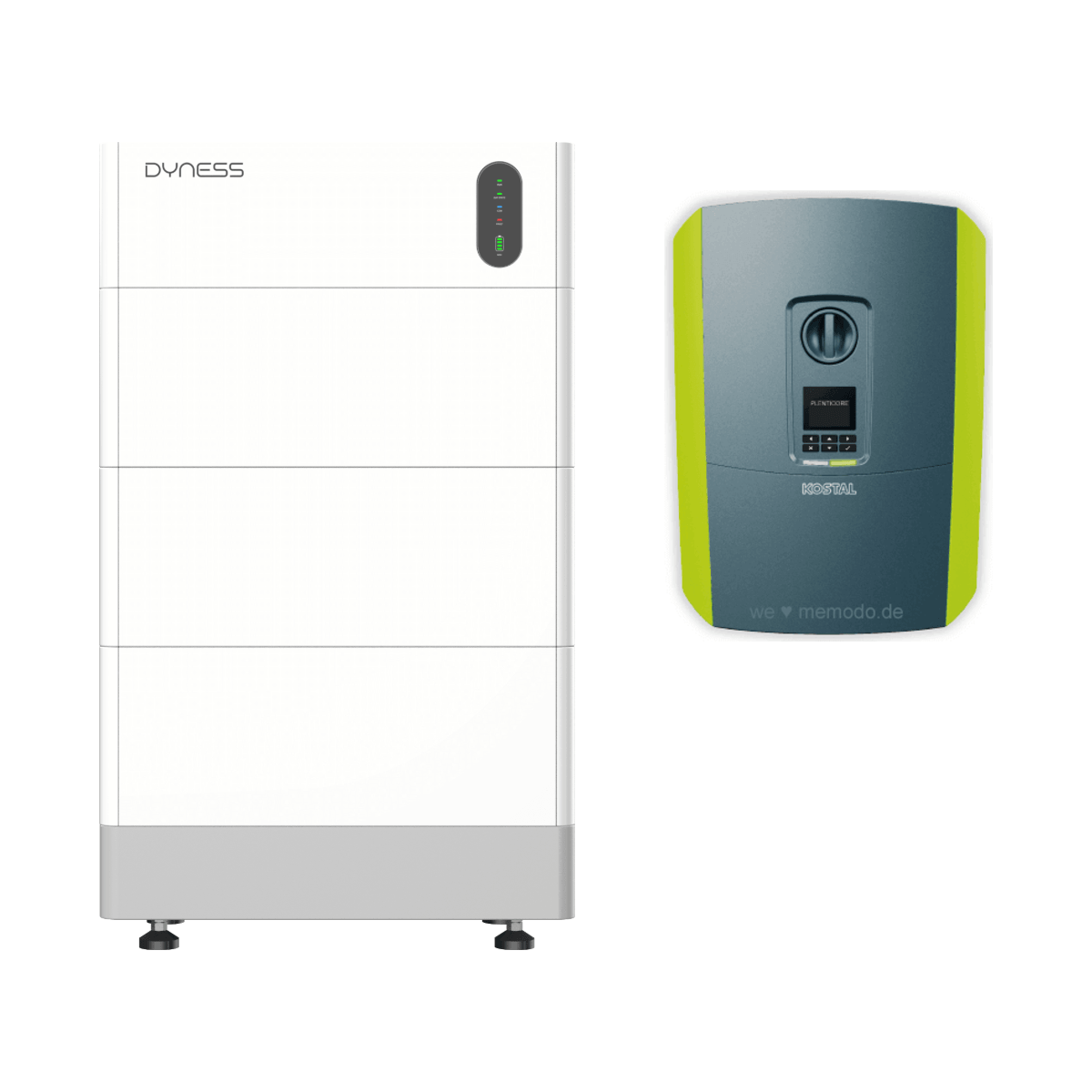

Kostal Plenticore plus 10 G2 with Dyness Tower Pro TP11, 11.52 kWh storage package
The Kostal Plenticore plus 10 G2, together with the Dyness Tower Pro TP11 11.52 kWh, forms a flexible and efficient complete package. It features continuous self-consumption monitoring, dynamic power control, intelligent shading management and the tried-and-tested, free Kostal Portal. The integrated web server also allows for local use.
The Dyness Tower Pro TP11 is a modular, high-voltage lithium iron phosphate-based energy storage system for domestic and small-scale commercial applications. The system comprises three stackable battery modules and a control unit (BCU). The capacity is 11.52 kWh (usable energy 10.944 kWh) and can be expanded to up to 276.48 kWh by connecting modules in parallel. The innovative plug-and-play design enables particularly quick and easy installation without internal cabling. The integrated heating and fire protection functions, together with a high level of safety certification, ensure reliable operation even under demanding conditions.
Warranty extensions can be purchased at https://www.kostal-solar-electric.com/de-de/service-und-support/kostal-garantie/
Battery activation price permanently reduced: Only 1 PLENTICOIN required, down from 3 previously.
Product features: Dyness Tower Pro TP11 11.52 kWh
- Battery capacity: 11.52 kWh
- Usable energy: 10.944 kWh
- Battery module type: Lithium iron phosphate (LiFePO4)
- Number of battery modules: 3
- Rated voltage: 288 V (Operating voltage: 252–324 V)
- Nominal capacity: 40 Ah
- Max. continuous charge/discharge power: 11.52 kW (1C)
- Recommended depth of discharge (DOD): 95%
- Dimensions (W/H/D): 587 x 310 x 1009 mm
- Weight: 150 kg
- Temperature range (charging/discharging): –20°C to 55°C
- Protection class: IP55
- Life cycle: ≥8,000 cycles (at 0.2C, 25°C, 95% DOD)
- Service life: 15 years
- Warranty: 10 years
- Communication: CAN/RS485/RS232
- Fire protection function: Aerosol fire suppression
Product features: Kostal Plenticore plus 10 G2
- Mains connection: 3-phase
- AC power: 10.0 kW
- Transformerless design
- 2 + 1 MPP trackers
- DC isolator integrated into the front panel
- Interfaces: Wi-Fi, Ethernet, USB, CAN, RS485, Modbus RTU, FRE
- Switch contact for self-consumption control (e.g. Heat pump)
- Dimensions: 563 x 405 x 233 mm (H x W x D)
- Weight: 21.6 kg
- Protection class: IP 65
- 10-year warranty (subject to registration with Kostal)
Contents
- Kostal Plenticore plus 10 G2
- Dyness Tower Pro TP11 11.52 kWh comprising 1 BDU including base and 3 battery modules
