Kostal Plenticore plus 10 G2 with Dyness Tower Pro TP15 15.36 kWh
| Art. Nr.: | 16791 |
|---|---|
| Inverter: | Kostal Plenticore plus 10 G2 |
| Phases: | 3 |
| Solar battery: | Dyness Tower Pro TP15 15,36 kWh |
| Net capacity: | 14.59 kWh |
| Battery type: | High volt lithium-iron-phosphate |
| Package type: | 3-phase, High voltage battery, Solar battery packages |
Prices are only visible to business customers upon successful registration.
- TIP
Product number:
16791
-
-
{ "id": "3e2ac886da205aa08c69bad6a1bbbd88", "item_brand": "", "item_name": "Kostal Plenticoin Card EU without DE", "item_id": "14309", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "3e2ac886da205aa08c69bad6a1bbbd88" } } -
{ "id": "ab2cf80857d859adb0ca8444d783f149", "item_brand": "", "item_name": " Kostal Smart Energy Meter G2", "item_id": "7613", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "ab2cf80857d859adb0ca8444d783f149" } }
-
Description

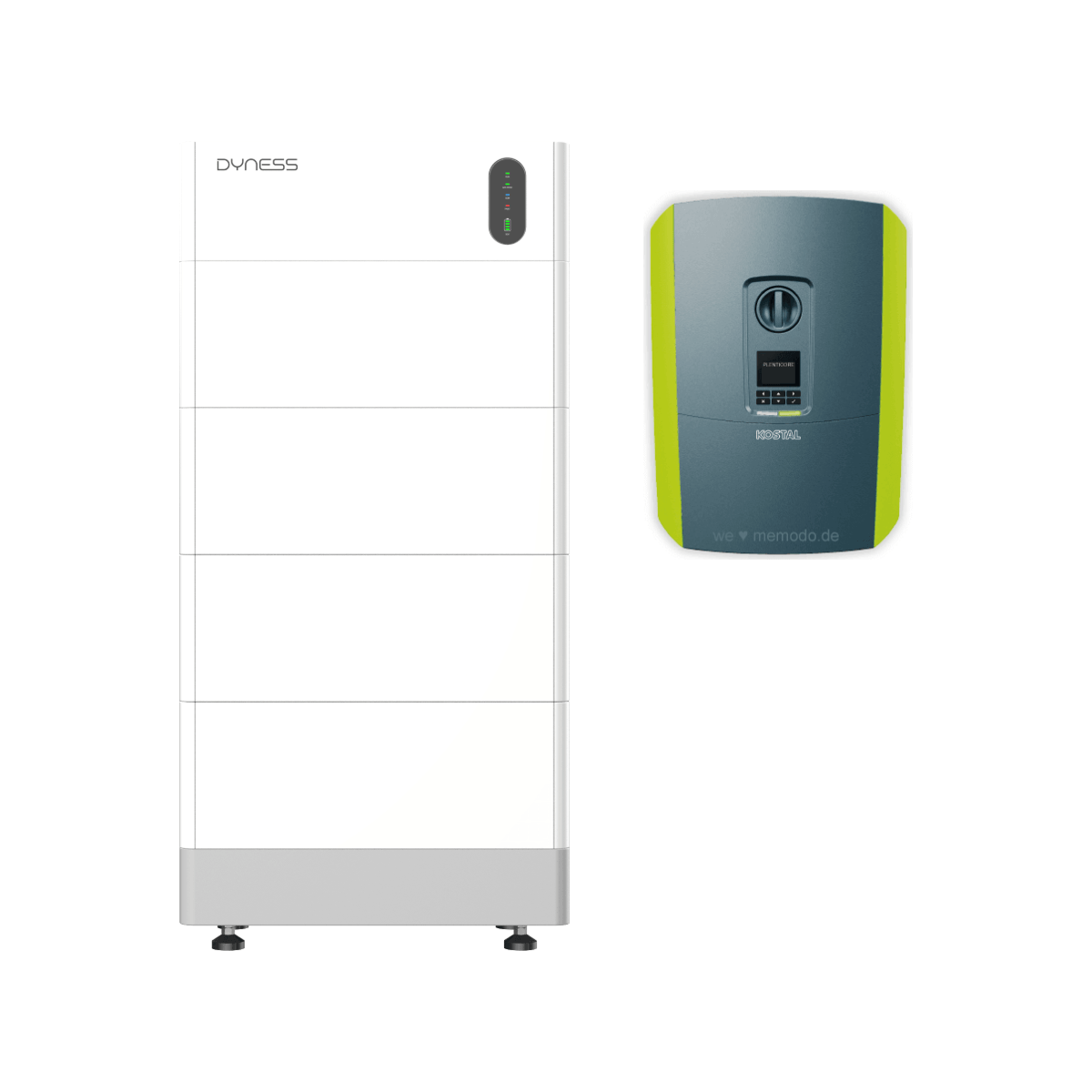

Kostal Plenticore plus 10 G2 with Dyness Tower Pro TP15, 15.36 kWh storage package
The Kostal Plenticore plus 10 G2, together with the Dyness Tower Pro TP15 15.36 kWh, forms a flexible and efficient complete package. It features continuous self-consumption monitoring, dynamic power control, intelligent shading management and the tried-and-tested, free Kostal Portal. The integrated web server also allows for local use.
The Dyness Tower Pro TP15 is a modular high-voltage lithium iron phosphate energy storage system for domestic and commercial applications. The system consists of 4 stackable battery modules and a central control unit (BCU). The total capacity is 15.36 kWh (usable energy 14.592 kWh) and can be expanded to up to 276.48 kWh by connecting modules in parallel. Installation and maintenance are quick and straightforward thanks to the plug-and-play design – all modules are simply stacked, with no internal cabling required.
Warranty extensions can be purchased at https://www.kostal-solar-electric.com/de-de/service-und-support/kostal-garantie/
Battery activation cost permanently reduced: only 1 PLENTICOIN required, down from 3 previously.
Product specifications: Dyness Tower Pro TP15 15.36 kWh
- Battery capacity: 15.36 kWh
- Usable energy: 14.592 kWh
- Battery module type: Lithium iron phosphate (LiFePO4)
- Number of battery modules: 4
- Nominal voltage: 384 V (operating voltage 336–432 V)
- Nominal capacity: 40 Ah
- Max. continuous charge/discharge power: 15.36 kW (1C)
- Recommended depth of discharge (DOD): 95 %
- Dimensions (W/D/H): 587 x 310 x 1230 mm
- Weight: 190.5 kg
- Temperature range (charging/discharging): -20 °C to 55 °C
- Life cycle: ≥8,000 cycles (at 0.2C, 25 °C, 95 % DOD)
- Service life: 15 years
- Warranty: 10 years
- Communication: CAN/RS485/RS232
- Protection class: IP55
- Heating function: Integrated polyimide film heating
- Fire protection: Aerosol fire suppression
- OTA upgrade: Remote maintenance possible
Product features: Kostal Plenticore plus 10 G2
- Mains connection: 3-phase
- AC power: 10.0 kW
- Transformerless design
- 2 + 1 MPP trackers
- DC isolator integrated into the front panel
- Interfaces: Wi-Fi, Ethernet, USB, CAN, RS485, Modbus RTU, FRE
- Switch contact for self-consumption control (e.g. Heat pump)
- Dimensions: 563 x 405 x 233 mm (H x W x D)
- Weight: 21.6 kg
- Protection class: IP 65
- 10-year warranty (subject to registration with Kostal)
Contents
- Kostal Plenticore plus 10 G2
- Dyness Tower Pro TP15 15.36 kWh comprising 1 BDU including base and 4 battery modules
