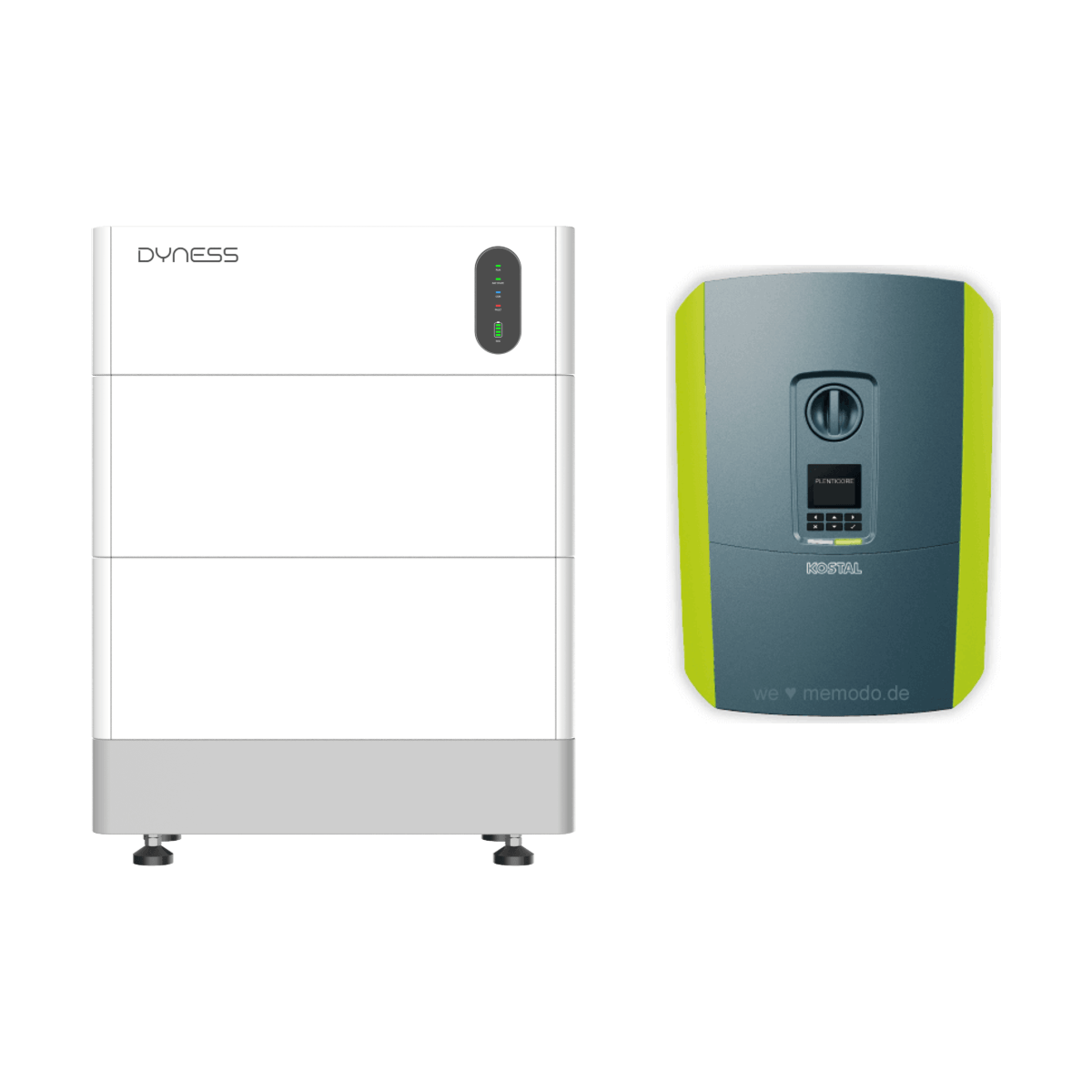

Kostal Plenticore plus 10 G2 with Dyness Tower Pro TP7 7.68 kWh
| Art. Nr.: | 16824 |
|---|---|
| Inverter: | Kostal Plenticore plus 10 G2 |
| Phases: | 3 |
| Solar battery: | Dyness Tower Pro TP7 7,68 kWh |
| Net capacity: | 7.30 kWh |
| Battery type: | High volt lithium-iron-phosphate |
| Package type: | 3-phase, High voltage battery, Solar battery packages |
Prices are only visible to business customers upon successful registration.
Product number:
16824
-
-
{ "id": "3e2ac886da205aa08c69bad6a1bbbd88", "item_brand": "", "item_name": "Kostal Plenticoin Card EU without DE", "item_id": "14309", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "3e2ac886da205aa08c69bad6a1bbbd88" } } -
{ "id": "ab2cf80857d859adb0ca8444d783f149", "item_brand": "", "item_name": " Kostal Smart Energy Meter G2", "item_id": "7613", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "ab2cf80857d859adb0ca8444d783f149" } }
-
Description
Kostal Plenticore plus 10 G2 with Dyness Tower Pro TP7 7.68 kWh storage package
The Kostal Plenticore plus 10 G2, together with the Dyness Tower Pro TP7 7.68 kWh, forms a flexible and efficient complete package. It features continuous self-consumption monitoring, dynamic power control, intelligent shading management and the tried-and-tested, free Kostal Portal. The integrated web server also allows for local use.
The Dyness Tower Pro TP7 is a modular high-voltage lithium iron phosphate energy storage system for domestic and small-scale commercial applications. The system consists of two stackable battery modules and a control unit (BCU). The total capacity is 7.68 kWh (usable energy 7.296 kWh) and can be expanded to up to 276.48 kWh by connecting modules in parallel. Thanks to its plug-and-play design, installation and maintenance are particularly quick and easy.
Warranty extensions can be purchased at https://www.kostal-solar-electric.com/de-de/service-und-support/kostal-garantie/
Battery activation price permanently reduced: Only 1 PLENTICOIN required, down from 3 previously.
Product specifications: Dyness Tower Pro TP7 7.68 kWh
- Battery capacity: 7.68 kWh
- Usable energy: 7.296 kWh
- Battery module type: Lithium iron phosphate (LiFePO₄)
- Number of battery modules: 2
- Rated voltage: 192 V (Operating voltage: 168–216 V)
- Nominal capacity: 40 Ah
- Max. continuous charge/discharge power: 7.68 kW (1C)
- Recommended depth of discharge (DOD): 95%
- Dimensions (W/D/H): 587 x 310 x 788 mm
- Weight: 109.5 kg
- Temperature range (charging/discharging): –20°C to 55°C
- Life cycle: ≥8,000 cycles (at 0.2C, 25°C, 95% DOD)
- Service life: 15 years
- Warranty: 10 years
- Communication: CAN/RS485/RS232
- Protection class: IP55
- Heating function: Polyimide film heating
- Fire protection function: Aerosol fire suppression
- Remote OTA upgrade: Equipped
- Battery module: HV9640
- Expansion: Up to 12 Tower-Pro units in parallel operation
Product features: Kostal Plenticore plus 10 G2
- Mains connection: 3-phase
- AC power: 10.0 kW
- Transformerless design
- 2 + 1 MPP trackers
- DC isolator integrated into the front panel
- Interfaces: Wi-Fi, Ethernet, USB, CAN, RS485, Modbus RTU, FRE
- Switch contact for self-consumption control (e.g. Heat pump)
- Dimensions: 563 x 405 x 233 mm (H x W x D)
- Weight: 21.6 kg
- Protection class: IP 65
- 10-year warranty (subject to registration with Kostal)
Contents
- Kostal Plenticore plus 10 G2
- Dyness Tower Pro TP7 7.68 kWh comprising 1 BDU including base and 2 battery modules
