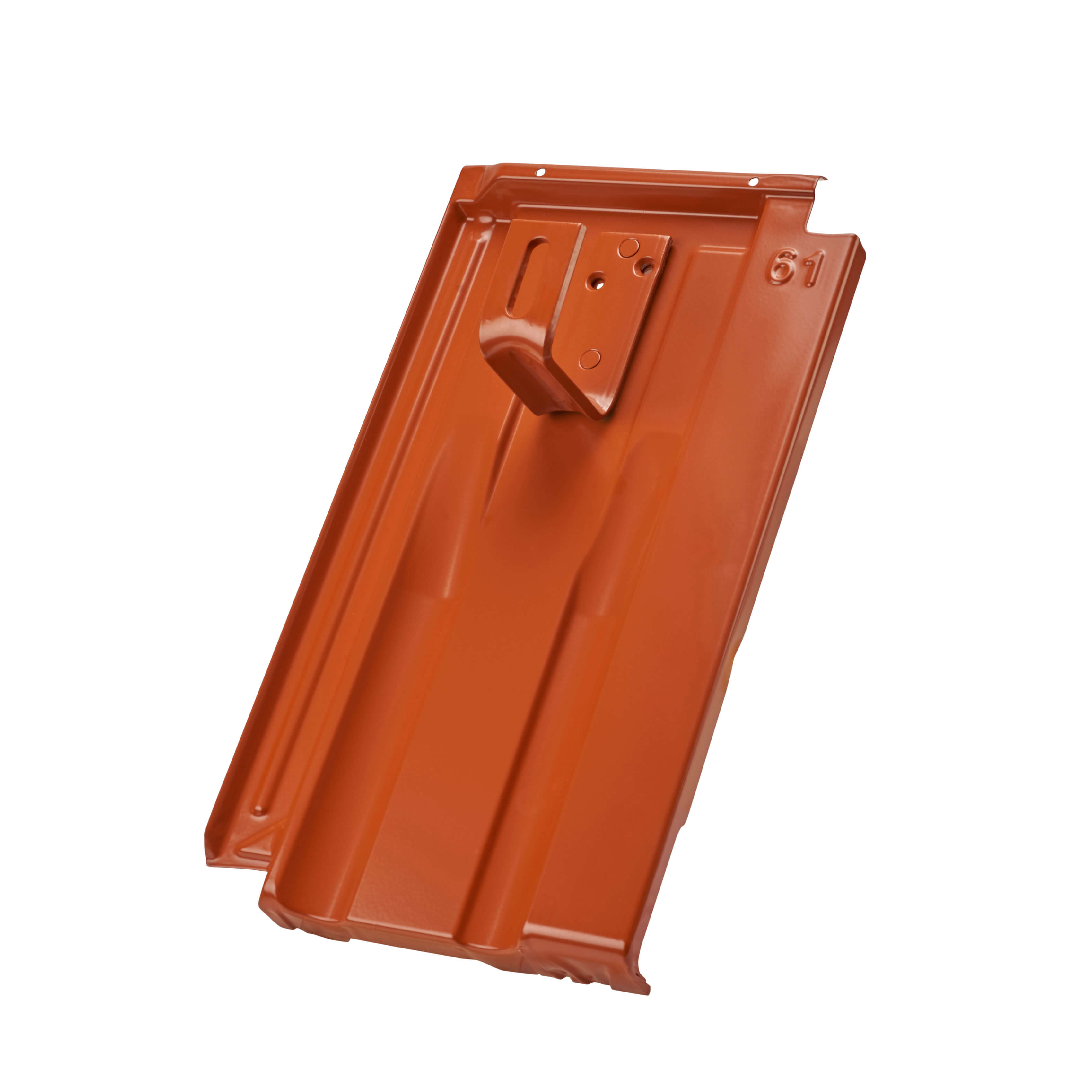

Lehmann clay roof module holder, tile red

Lehmann Modulhalter Tondach Landdach, ziegelrot

Type of manufacturer:	7300611052035
Manufacturer Art. No.:	7300611001035
Art. Nr.:	15649
Pieces per package unit:	10 per carton 60 per pallet
Product type:	Replacement tile

Prices are only visible to business customers upon successful registration.

Unfortunately you are not authorised to place orders

To purchase the item you need a certification from the manufacturer.

The article is currently not available in your country.

Please contact your personal contact person to find out the price of the product. You can find your contact person's contact information in your customer account.

There was an error when determining the product availabilty

Product number: 15649

Prices are only visible to business customers upon successful registration.

Unfortunately you are not authorised to place orders

To purchase the item you need a certification from the manufacturer.

The article is currently not available in your country.

Please contact your personal contact person to find out the price of the product. You can find your contact person's contact information in your customer account.

There was an error when determining the product availabilty

Product number: 15649

Tech tip

To ensure the drill holes between the module bracket and the mounting rail are precisely aligned, we recommend using a pointed tool – such as a screwdriver. This allows you to easily slide the rail so that it sits flush with the module bracket, ensuring a precise fit. This saves time and ensures a neat installation without the need for readjustment.

Not sure whether and how your mounting system can be connected to the module holder? Feel free to ask us!

Lehmann Module Mount for Clay Tiles (Landdach), brick red

With the Lehmann module mount for clay-tiled pitched roofs, you can install PV modules securely and without damaging the roof on pitched roof tiles. The bracket is factory-riveted to a metal roof panel and comes complete with a battens rail and self-tapping screws for fixing to the roof structure – ready to install in brick red for a uniform roof appearance.

Your benefits

No need to cut or trim the roof tiles
No damage to the roof covering
No risk of hairline cracks in the tiles
Pre-assembled onto a metal roof panel – saves time during installation
Low leverage due to force being applied over a wide surface area
Corrosion protection through hot-dip galvanising and powder coating

Order the right Lehmann module bracket for your pitched roof project now and keep to your schedule on site.

Application example

The module mount is suitable for the rooftop installation of PV systems on pitched roofs with traditional roofing – for example, when retrofitting existing residential buildings or in new builds, where the mounting system and roof appearance are intended to match visually.

Technical data

Manufacturer: Otto Lehmann GmbH
Suitable for: Landdach clay roof tiles
Colour: brick red
Material: hot-dip galvanised, powder-coated steel
Contents: Module bracket riveted to metal roof panel, batten rail, self-tapping screws
Weight: 2.16 kg (net)
Packaging unit: 10 pieces per box

You can find detailed information on load ratings and mounting distances in the manufacturer’s documentation from Lehmann.
