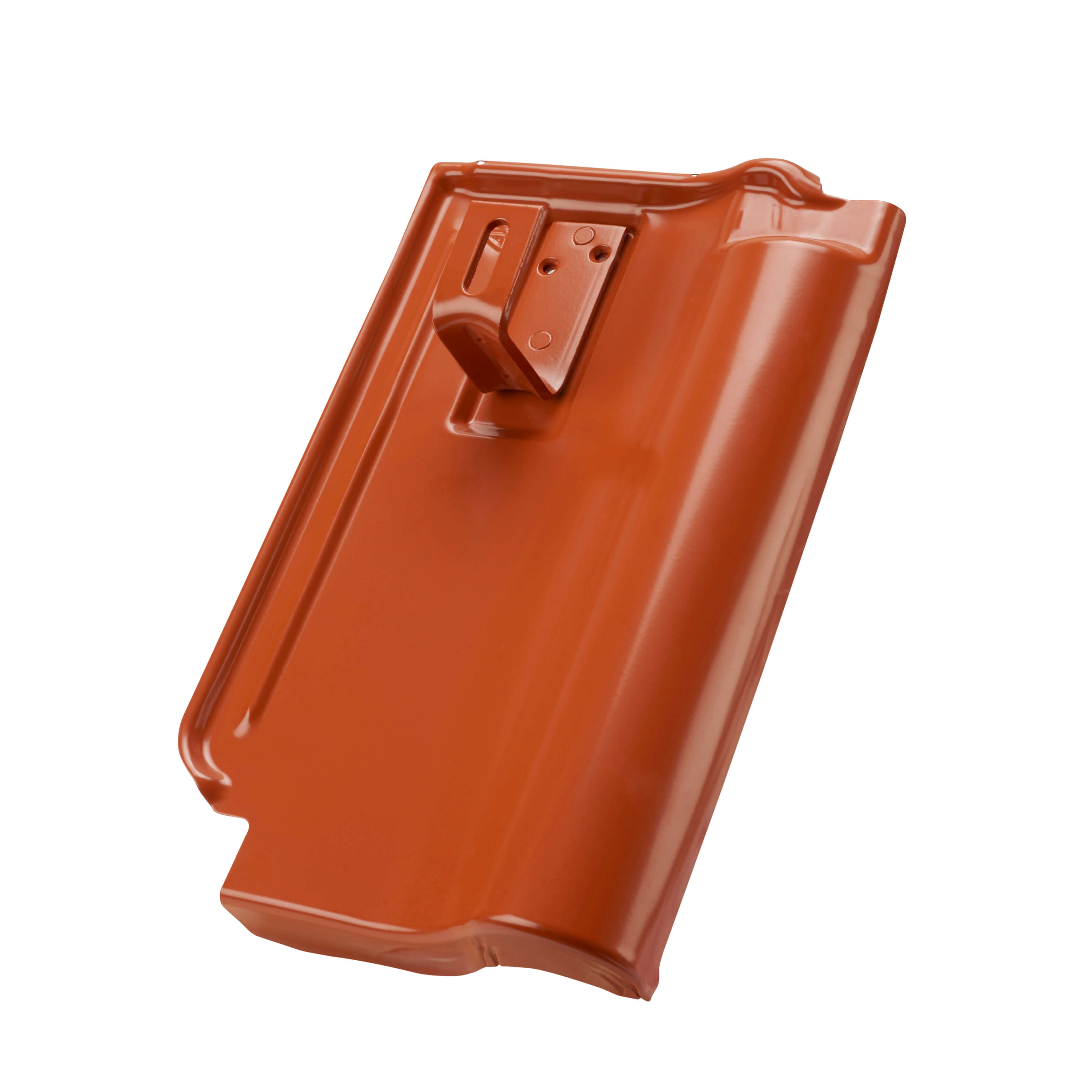

Lehmann Creaton Harmonie module holder, brick red

Lehmann Modulhalter Creaton Harmonie, ziegelrot

Manufacturer Art. No.:	7300451052035
Art. Nr.:	16771
Pieces per package unit:	10 per carton 60 per pallet
Product type:	Replacement tile

Prices are only visible to business customers upon successful registration.

Unfortunately you are not authorised to place orders

To purchase the item you need a certification from the manufacturer.

The article is currently not available in your country.

Please contact your personal contact person to find out the price of the product. You can find your contact person's contact information in your customer account.

There was an error when determining the product availabilty

Product number: 16771

Prices are only visible to business customers upon successful registration.

Unfortunately you are not authorised to place orders

To purchase the item you need a certification from the manufacturer.

The article is currently not available in your country.

Please contact your personal contact person to find out the price of the product. You can find your contact person's contact information in your customer account.

There was an error when determining the product availabilty

Product number: 16771

Tech tip

To ensure the drill holes between the module holder and the mounting rail are precisely aligned, use a pointed tool, such as a screwdriver. Use this to push the rail flush against the module holder, ensuring a precise connection.

Not sure whether your mounting system can be connected to the module bracket? Feel free to ask us!

Lehmann module mount for Creaton Harmonie, brick red

With the Lehmann module bracket for the Creaton Harmonie roof tile, you can mount the Mounting system of your PV system directly onto the roof tile surface. The module bracket replaces a roof tile at the fixing point and is designed to match the shape of the Creaton Harmonie tile. The brick-red colour complements roofs with red tiles.

Product benefits

Suitable for the Creaton Harmonie roof tile
Replaces a tile; no need to fit roof hooks or cut out the tile
‘Tile Red’ colour for a harmonious roof appearance

Before ordering, please check that your roof is actually covered with Creaton Harmonie tiles – separate Lehmann module holders for other tile types are available from Memodo.

Application examples

On-roof installation of PV modules on existing roofs with Creaton Harmonie
Extension of an existing system on the same roof

Technical data

Manufacturer: Lehmann
Item number: 7300451052035
Suitable for: Creaton Harmonie
Colour: brick red
Dimensions (L × W × H): 423 × 263 × 155 mm
Weight: 1.85 kg per piece
Packaging unit: 10 pieces per box, 60 pieces per pallet

The manufacturer specifies the material and contents of the pack in its documentation.
