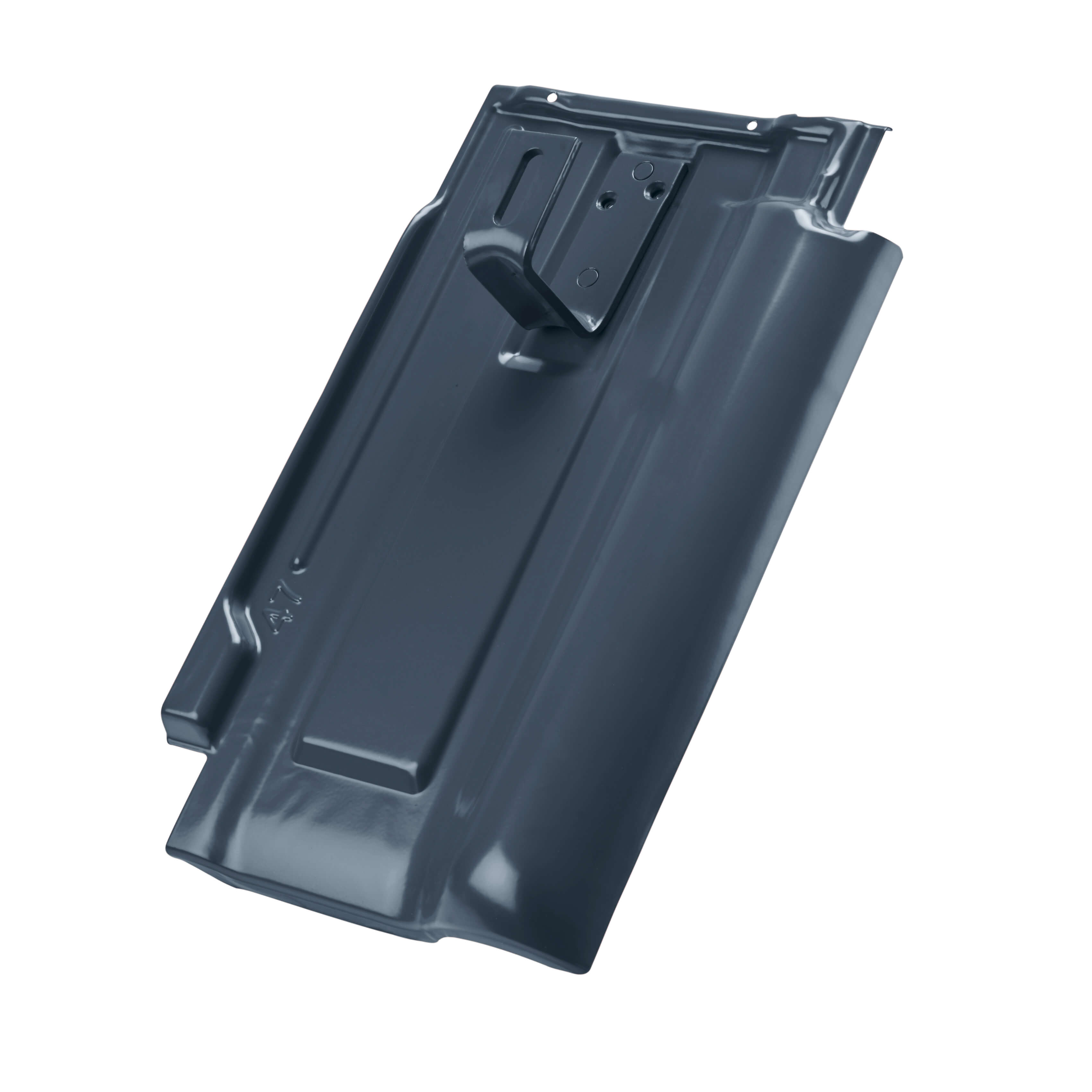

Lehmann Module Holder Braas Rubin 13V, anthracite

Lehmann Modulhalter Braas Rubin 13V, anthrazit

Manufacturer Art. No.:	7300471052037
Art. Nr.:	16582
Pieces per package unit:	10 per carton 60 per pallet
Product type:	Replacement tile
Type of roof:	Pitched roof

Prices are only visible to business customers upon successful registration.

Unfortunately you are not authorised to place orders

To purchase the item you need a certification from the manufacturer.

The article is currently not available in your country.

Please contact your personal contact person to find out the price of the product. You can find your contact person's contact information in your customer account.

There was an error when determining the product availabilty

Product number: 16582

Prices are only visible to business customers upon successful registration.

Unfortunately you are not authorised to place orders

To purchase the item you need a certification from the manufacturer.

The article is currently not available in your country.

Please contact your personal contact person to find out the price of the product. You can find your contact person's contact information in your customer account.

There was an error when determining the product availabilty

Product number: 16582

Tech tip

To ensure the drill holes between the module holder and the mounting rail are precisely aligned, use a pointed tool, such as a screwdriver. Use this to push the rail flush against the module holder, ensuring a precise connection.

Not sure whether your mounting system can be connected to the module bracket? Feel free to ask us!

Lehmann Module Holder for Braas Rubin 13V, anthracite

With the Lehmann module bracket for the Braas Rubin 13V roof tile, you can mount the Mounting system of your PV system directly onto the roof tile surface. The module bracket replaces a roof tile at the fixing point and is designed to match the shape of the Braas Rubin 13V. The anthracite colour complements dark-coloured roofs.

Product benefits

Suitable for the Braas Rubin 13V roof tile
Replaces a tile; no need to fit roof hooks or cut out the tile
Anthracite colour for a harmonious roof appearance

Before ordering, please check that your roof is actually covered with Braas Rubin 13V tiles – separate Lehmann module holders for the Braas Rubin 9V and other tile types are available from Memodo.

Examples of use

On-roof installation of PV modules on existing roofs with Braas Rubin 13V
Extension of an existing system on the same roof

Technical data

Manufacturer: Lehmann
Item number: 7300471052037
Suitable for: Braas Rubin 13V
Colour: anthracite
Dimensions (L × W × H): 435 × 280 × 141 mm
Weight: 1.9 kg per piece
Packaging unit: 10 pieces per box, 60 pieces per pallet

The manufacturer specifies the material and contents of the pack in its documentation.
