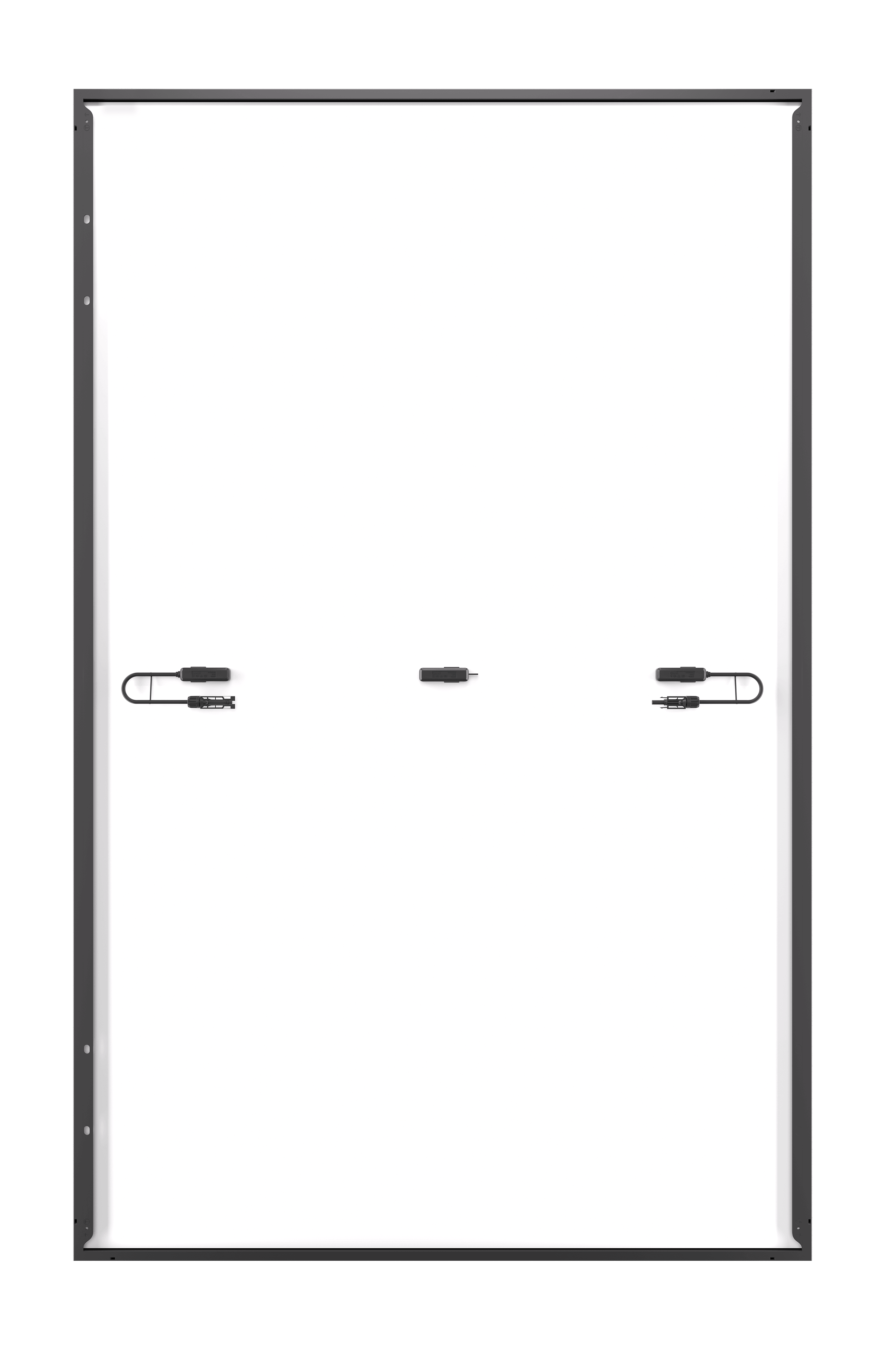

LONGi EcoLife Anti-Glare LR7-54HVB-480M
Image may differ from the product.
| Type of manufacturer: | LR7-54HVB-480M |
|---|---|
| Manufacturer Art. No.: | M-LON-BC-480-121-DE-E |
| Art. Nr.: | 16476 |
| Pieces per package unit: |
|
| Power: | 480 Watt |
| Efficiency: | 23.52 % |
| Construction type: | Mono-Glass |
| Warranty: | 30/30 years |
| Dimensions: | 1800 x 1134 x 30 |
| Backsheet: | Black |
| Frame color: | Black |
| Technology: | xBC |
| Connector: | MC4 |
| Snow load: | 5400 Pa |
| Wind load: | 2400 Pa |
| Hail resistance: | HW4 |
| Solar panel type: | Back contact modules, Full black modules, Glass-foil modules, High performance solar panels |
Prices are only visible to business customers upon successful registration.
- New
Product number:
16476
Description
The LONGi EcoLife Anti-Glare LR7-54HVB-480M
With the LONGi EcoLife Anti-Glare LR7-54HVB-480M, you can be sure of quality, efficiency and sustainability. The HPBC 2.0 back-contact technology gives the module an efficiency of 23.52 per cent. A low temperature coefficient of -0.26 %/°C ensures high yields even on hot days, whilst the anti-shading design minimises losses during partial shading.
The cells have no visible conductive tracks. The low-reflection anti-glare glass keeps the luminance below 20,000 cd/m², the aviation threshold, and is certified by TÜV Rheinland. This makes the module suitable even for locations where glare is a critical concern.
Product advantages
- 108 monocrystalline cells with HPBC-2.0 back-contact technology
- Anti-glare glass for locations where glare is a critical issue
- Anti-shading design for higher yields in partially shaded conditions
- Appearance with no visible conductor tracks
- Highest quality standards
Product features: LONGi EcoLife Anti-Glare LR7-54HVB-480M
- Power: 480 watts
- Connector: MC4 EVO 2
- Efficiency: 23.52%
- Short-circuit current: 15.13 A
- Snow load: 5,400 Pa
- Wind load: 2,400 Pa
- Dimensions: 1800 x 1134 x 30 mm (L x W x H)
- Protection class: IP68 (junction box)
- Weight: 21.6 kg
- Cable length: 1,200 mm
- 30-year product warranty
- 30-year performance guarantee
