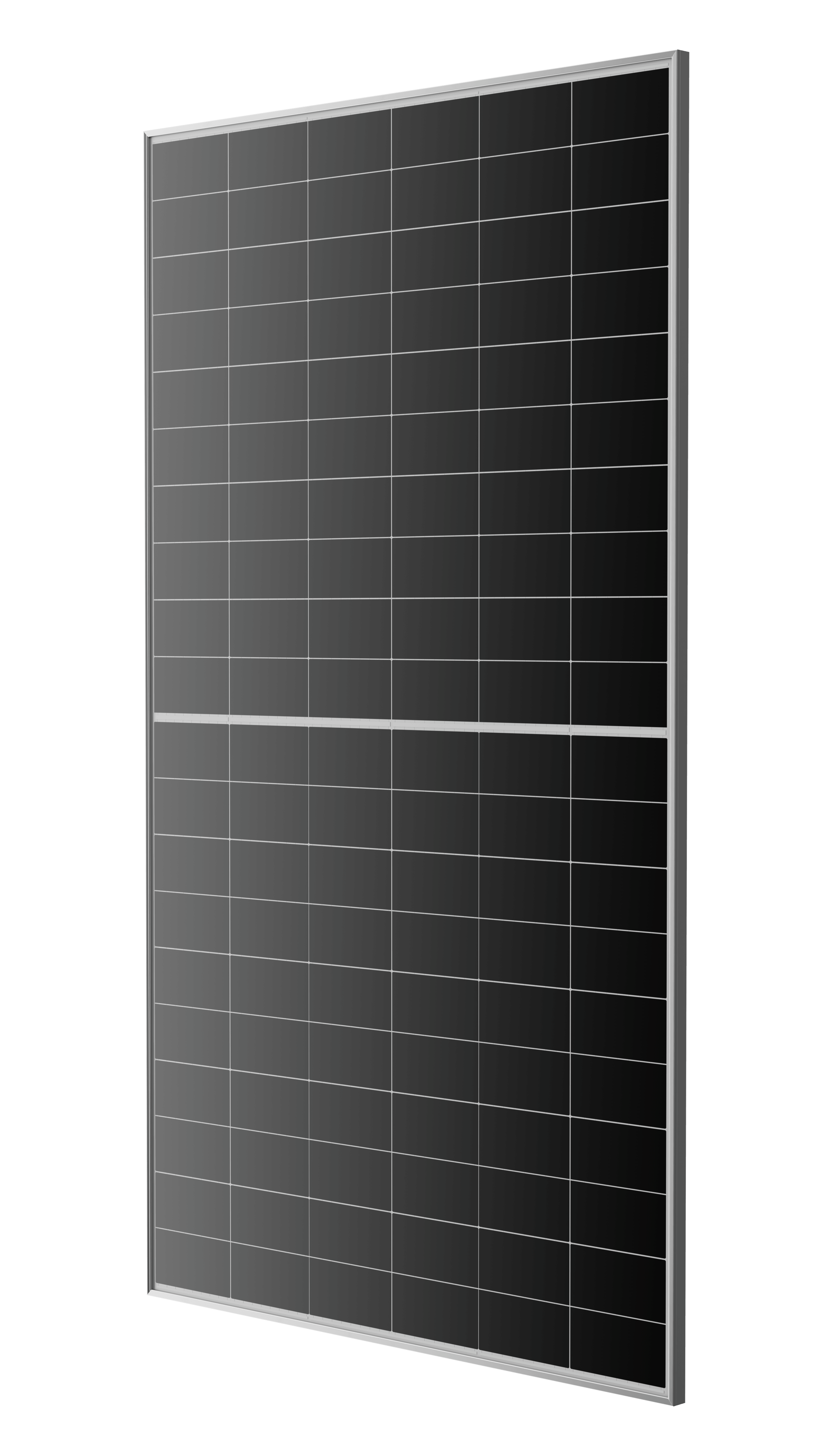

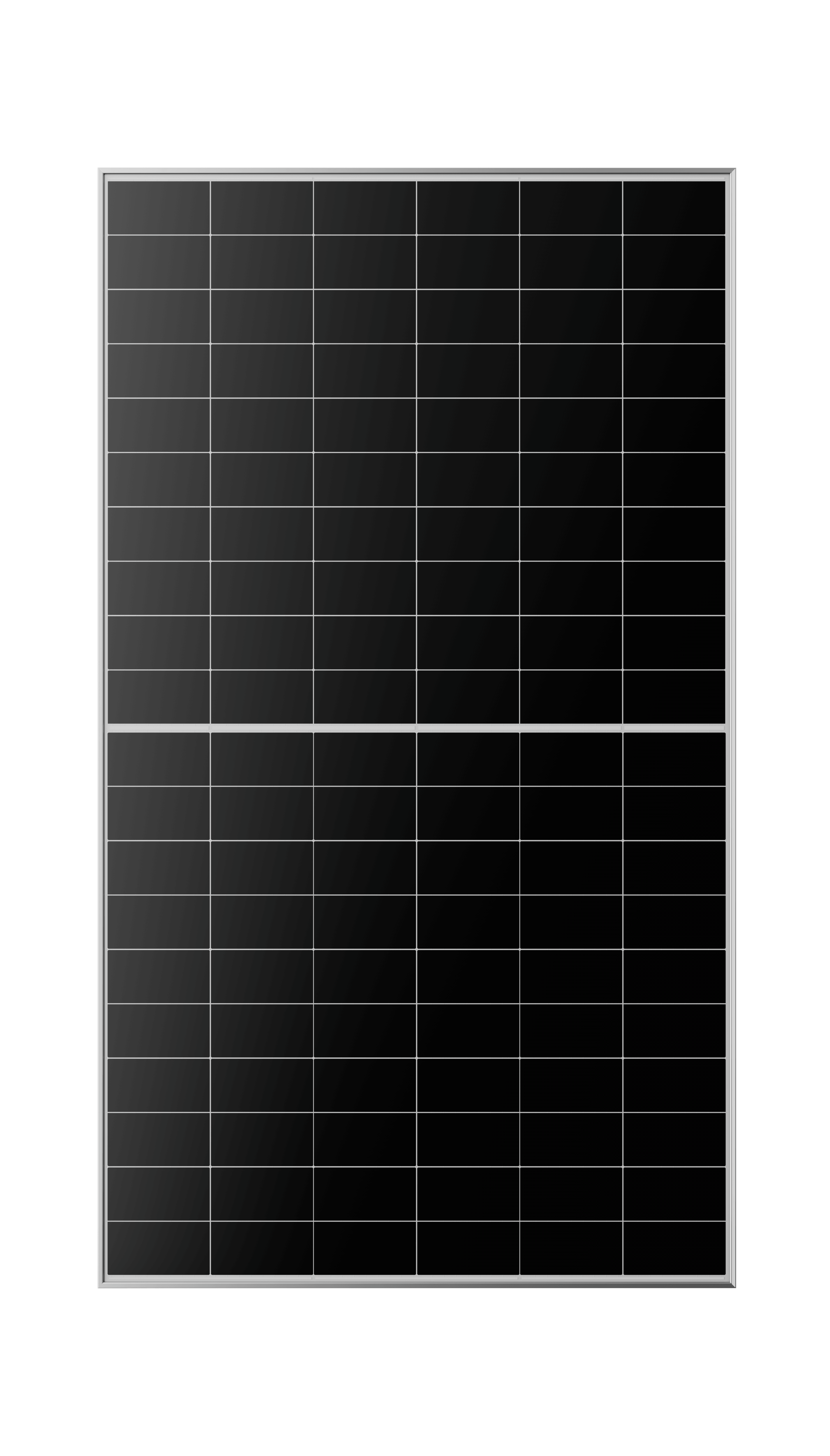

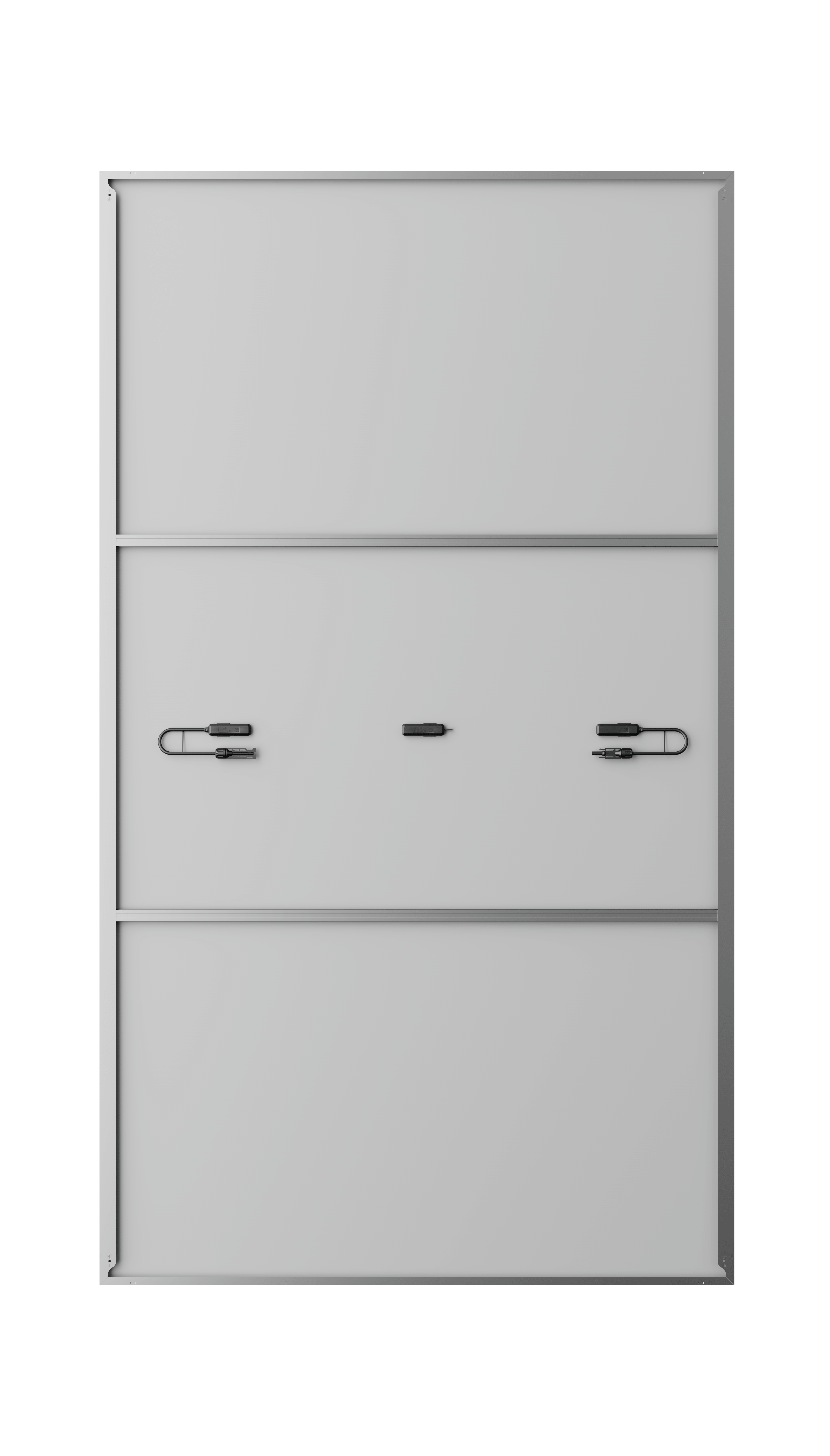

LONGi Hi-Mo X10 Light Design LR7-60HVHL 540M
| Type of manufacturer: | LR7-60HVHL 540M |
|---|---|
| Manufacturer Art. No.: | M-LON-BC-540-111-DE-E |
| Art. Nr.: | 16479 |
| Pieces per package unit: |
|
| Power: | 540 Watt |
| Efficiency: | 23.9 % |
| Construction type: | Mono-Glass |
| Warranty: | 15/30 years |
| Dimensions: | 1990 x 1134 x 30 |
| Backsheet: | White |
| Frame color: | Silver |
| Technology: | xBC |
| Connector: | MC4 |
| Snow load: | 3600 Pa |
| Wind load: | 2400 Pa |
| Hail resistance: | HW2 |
| Solar panel type: | Back contact modules, Glass-foil modules, High performance solar panels |
- New
Lightweight 540-watt LONGi module
The LONGi LR7-60HVHL-540M (Hi-MO X10 Guardian Light Design) is a lightweight monocrystalline solar panel featuring HPBC-2.0 back-contact technology. It delivers 540 Wp with an efficiency of 23.9 per cent. Weighing just 16.3 kg, it is up to 42 per cent lighter than conventional modules. This makes it particularly suitable for roofs with low load-bearing capacity, and there is no need to reinforce the roof.
Product benefits
- 120 monocrystalline cells with HPBC-2.0 back-contact technology
- up to 42 per cent lighter than conventional modules
- ideal for roofs with low load-bearing capacity, e.g. industrial and commercial roofs
- Faster installation without the need for roof reinforcement
- Low temperature coefficient of -0.26%/°C
- Long-term performance warranty
Product specifications LONGi LR7-60HVHL-540M
- Power: 540 watts
- Connector: EVO 2
- Module frame colour: Silver
- Efficiency: 23.9%
- Short-circuit current (Isc): 15.25 A
- Snow load: 3,600 Pa
- Wind load: 2,400 Pa
- Dimensions: 1990 x 1134 x 30 mm (L x W x H)
- Protection class: IP68 (junction box)
- Weight: 16.3 kg
- Cable length: ±1,400 mm
- 15-year product warranty
- 30-year performance warranty
About Longi Solar
LONGi Solar is one of the leading manufacturers of high-efficiency solar cells and modules. For over 20 years, they have focused on monocrystalline solar cell technology, enabling them to achieve a leading position in the global market. To provide fast and solution-oriented support, LONGi Solar maintains branches all over the world, including in Germany.
