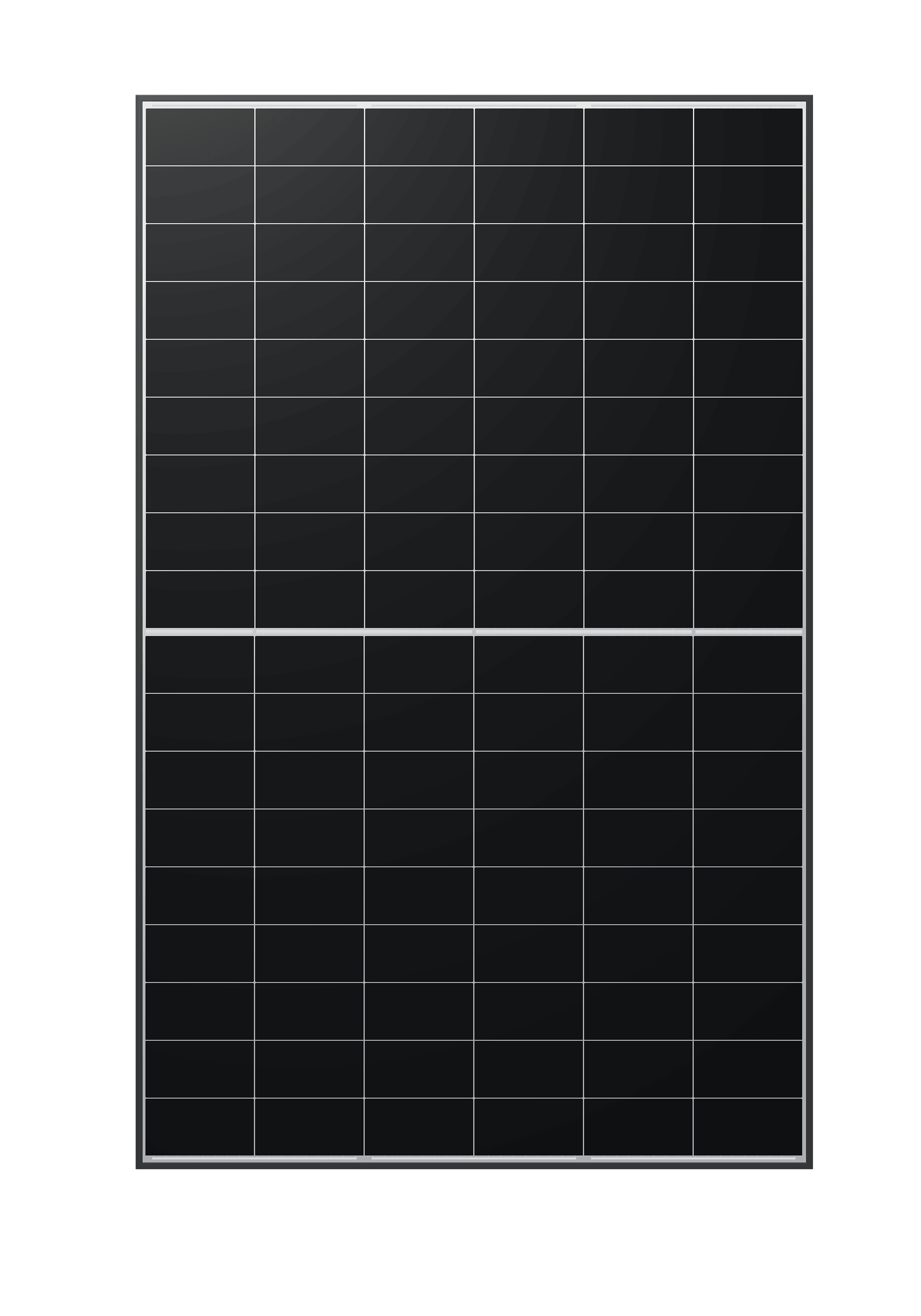

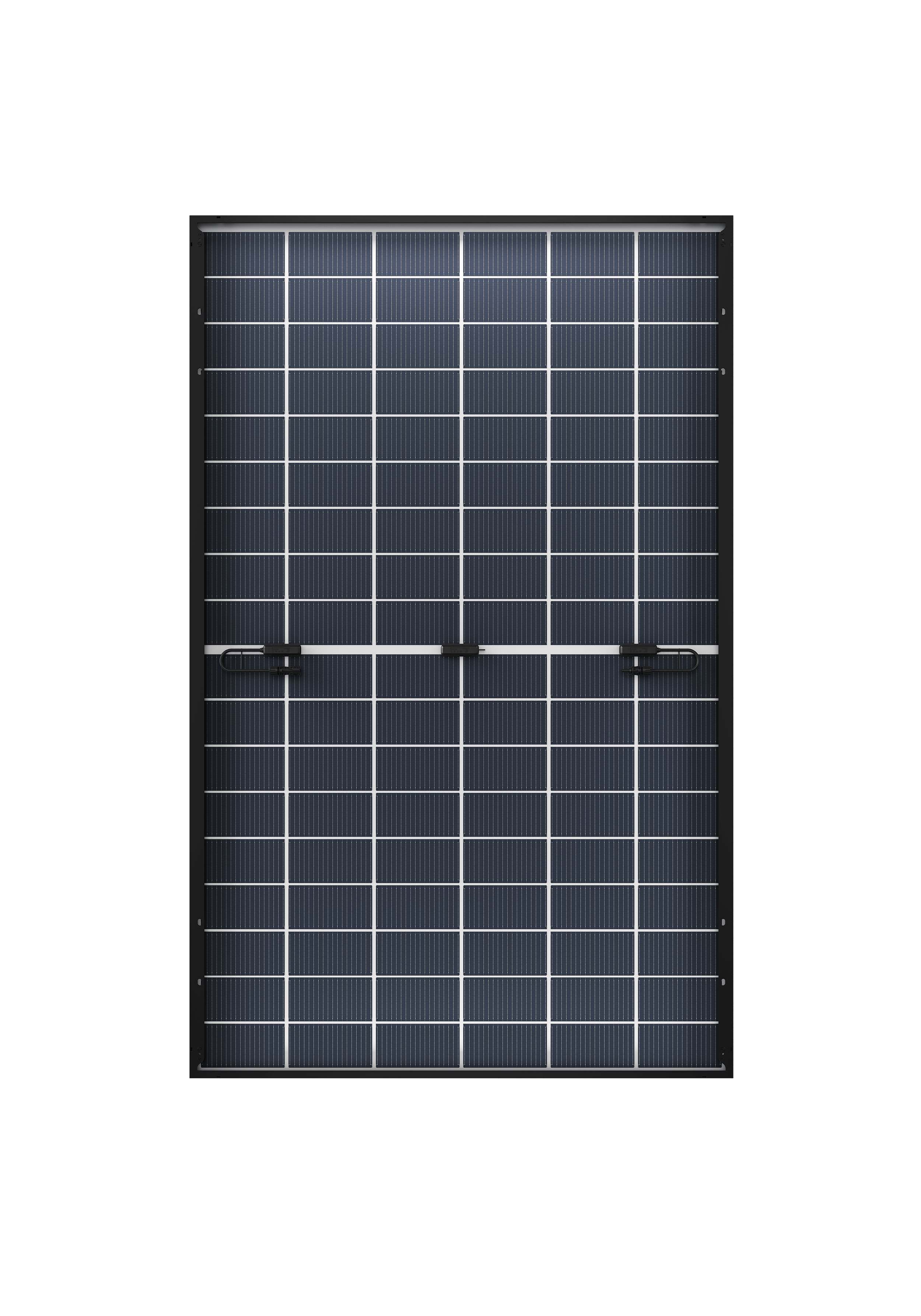

Longi Hi-MO X10 LR7-54HVD-500M
Image may differ from the product.
| Type of manufacturer: | LR7-54HVD-500M |
|---|---|
| Manufacturer Art. No.: | LR7-54HVD-500 |
| Art. Nr.: | 16054 |
| Pieces per package unit: |
|
| Power: | 500 Watt |
| Efficiency: | 24.5 % |
| Construction type: | Double-Glass-Bifacial |
| Warranty: | 15/30 years |
| Dimensions: | 1800 x 1134 x 30 |
| Backsheet: | White |
| Frame color: | Black |
| Technology: | xBC |
| Connector: | MC4 |
| Snow load: | 5400 Pa |
| Wind load: | 2400 Pa |
| Hail resistance: | HW2 |
| Solar panel type: | Back contact modules, BiFacial, Glass-glass solar panels, High performance solar panels |
Prices are only visible to business customers upon successful registration.
- New
Product number:
16054
Description
The Longi Hi-MO X10 LR7-54HVD-500M
With the new Longi Hi-MO X10 LR7-54HVD-500M, you can be sure of the highest quality, efficiency and sustainability. The innovative HPBC 2.0 technology achieves efficiency levels of up to 24.5%, guaranteeing maximum energy yield – even in challenging weather conditions.
Thanks to its elegant design, the module blends harmoniously into any architectural setting and meets the highest aesthetic standards. Robust double sealing, outstanding resistance to wind and snow loads, and a particularly long service life ensure maximum safety and preserve the value of your investment.
Product benefits
- 108 monocrystalline half-cells
- Specialising in monocrystalline cell manufacturing for almost 20 years
- Highest quality standards
- Ideal for project-based applications
Product specifications Longi Hi-MO X10 LR7-54HVD-500M
- Power: 500 watts
- Connector: MC4 EVO 2
- Efficiency: 24.5%
- Snow load: 5,400 Pa
- Wind load: 2,400 Pa
- Dimensions: 1,800 x 1,134 x 35 mm (L x W x H)
- Protection class: IP68
- Weight: 23.5 kg
- Cable length: 1.2 m
- 15-year product warranty
- 30-year performance guarantee
