my-PV Hea-Thor 3.5 kW
| Manufacturer Art. No.: | 21-0300 |
|---|---|
| Art. Nr.: | 13417 |
| Pieces per package unit: |
|
| Dimensions: | 580 x 117 x 133 in mm (HxWxD) |
| Heating capacity: | 3,5 kW |
| Heating system: | Heater |
| Power requirements: | max. 3,5 kW |
| Warranty: | 2 years |
| WEEE-Number: |
|
Prices are only visible to business customers upon successful registration.
- New
Available from 12.01.2026
Product number:
13417
Description
my-PV HEA•THOR 3.5 kW – Intelligent heating element for dynamic electricity use
Smart use of cheap electricity – the HEA-THOR makes your domestic hot water smart, sustainable and cost-saving!

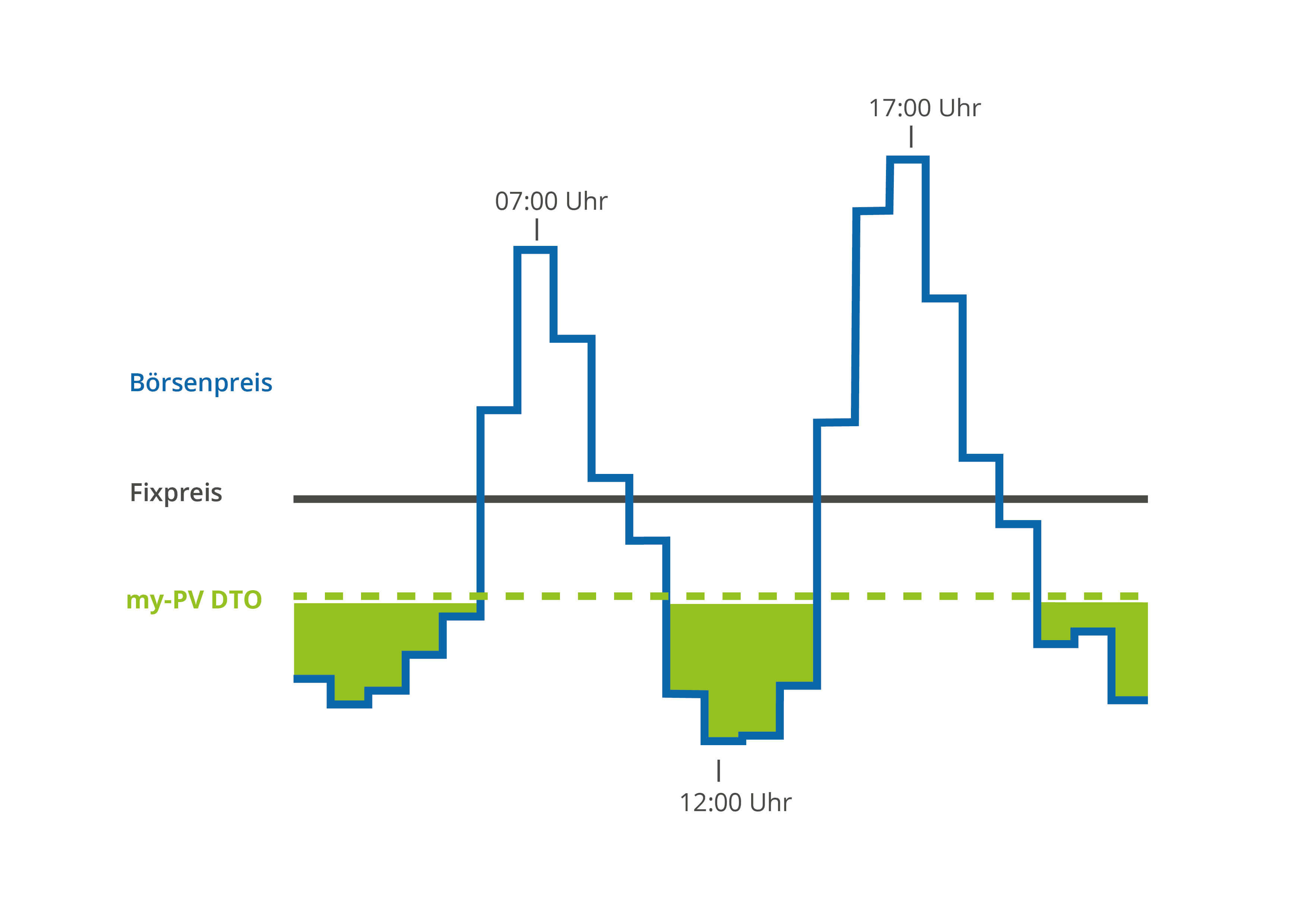

The HEA•THOR 3.5 kW from my-PV is the smart solution for households that want to benefit from the energy market without a PV system. In combination with the my-PV DTO (Dynamic Tariff Optimizer), the heating element automatically adjusts to the lowest current electricity prices. Ideal for heating water with mains electricity from renewable sources – fully digital, controllable and efficient.
Product advantages:
- Automatic use of favorable electricity tariffs via connection to the my-PV DTO
- Flexible integration into existing hot water and buffer storage tanks with 1.5” thread
- Integrated temperature display on the device for easy operation
- Control via LAN, Wi-Fi, RS485 or potential-free switching output
- Low-impact heating technology for a long service life
Produkteigenschaften:
- Item number: 21-0300
- Heating output: 3.5 kW (single-phase)
- Mains connection: 230 V / 50 Hz
- Standby consumption: < 1.5 W
- Interfaces: Ethernet RJ45, Wi-Fi, RS485, potential-free switching output
- Protection category: IP21
- Operating temperature: max. 40 °C housing temperature
- Dimensions: 580 x 133 x 117 mm
- Heating element length: 460 mm from sealing surface
- Heat-free zone 140 mm from sealing surface
