my-PV Heating rod 3 kW for AC-THOR
| Manufacturer Art. No.: | 20-0500 |
|---|---|
| Art. Nr.: | 4473 |
| Pieces per package unit: |
|
| Heating system: | Accessories, Heater |
| Heating capacity: | 3 kW |
| Dimensions: | 518 x 88 x 88 in mm (HxWxD) |
| Warranty: | 2 years |
| Power requirements: | 3 kW |

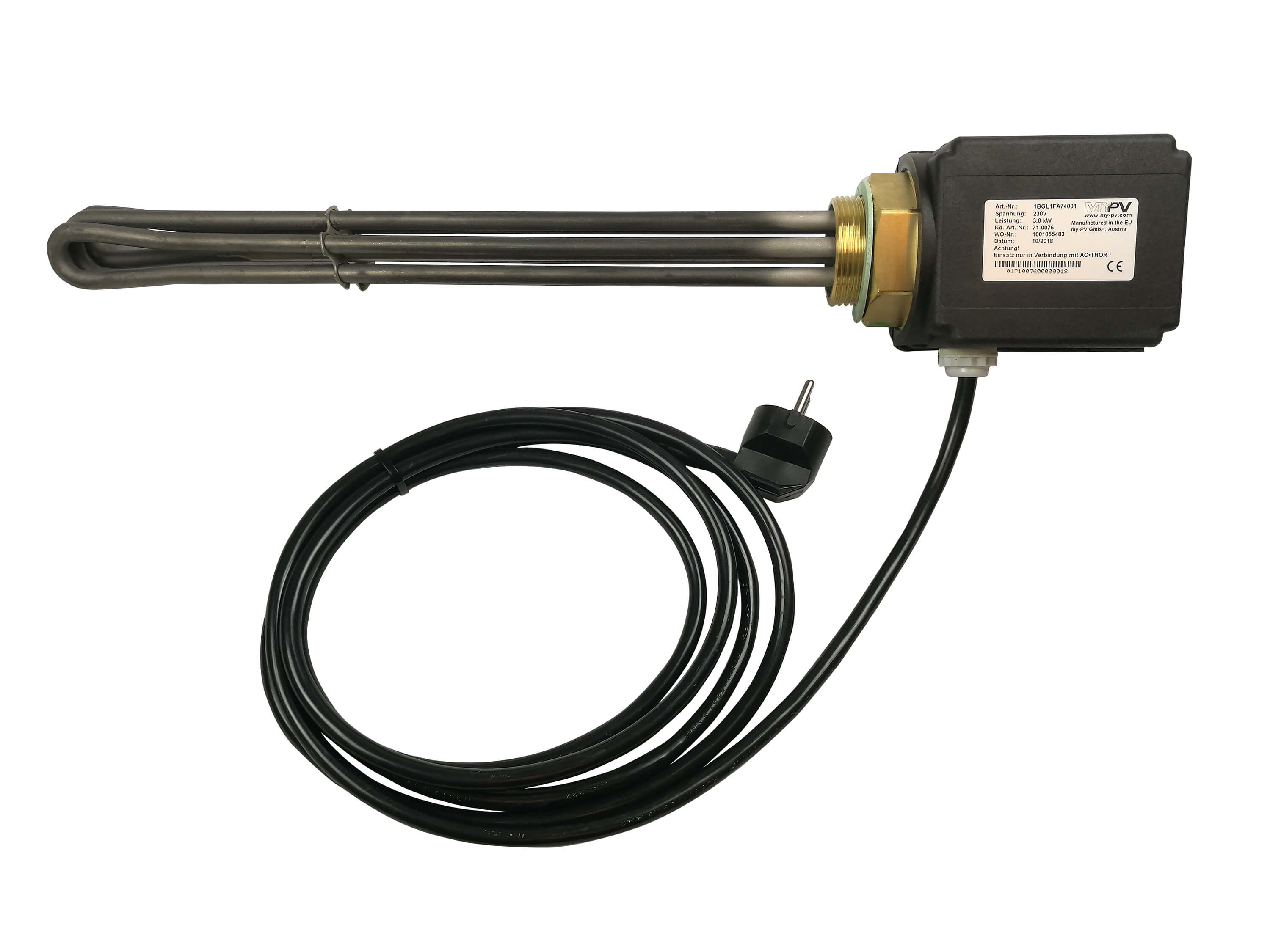

my-PV 3 kW screw-in heating element – Efficient hot water production using Solar power
Use the my-PV 3 kW screw-in heating element to maximise your Self-consumption whilst reducing heating costs. Easy to install, efficient to run – the ideal solution for sustainable living. Order now from Memodo and benefit from maximum energy efficiency!
The my-PV 3 kW screw-in heating element is the ideal solution for efficiently using surplus Solar power for hot water production or heating support. In combination with the AC•THOR, AC•THOR 9s or SOL•THOR power managers, the heating output is continuously regulated and optimally adapted to the available surplus PV power. Thanks to its 1½" standard thread, the heating rod can be easily integrated into fresh water and buffer tanks. The integrated temperature controller with rotary knob and the safety temperature limiter ensure safe and reliable operation. For applications above 90°C, variants without a thermostat but with external temperature control via a Power Manager are also available.
Product features:
- Connection: 1-phase, 230 V
- Max. heating power: 3 kW
- Required screw-in flange: 1.5 inches
- Ideal complement to AC•THOR, AC•THOR 9s and SOL•THOR
- Connection cable with Schuko plug: 2.8 m
- Dimensions: 518 x 88 x 88 mm (L x W x H)
- Protection class: IP45
- Weight: 1.65 kg
Examples of use:
- Hot water supply in detached and multi-family homes
- Integration into existing fresh water and buffer tanks
- Optimisation of self-consumption in PV systems with AC•THOR, AC•THOR 9s or SOL•THOR
- Use in combination with smart home systems
A list of compatible manufacturers, including installation instructions, can be found here.
-
