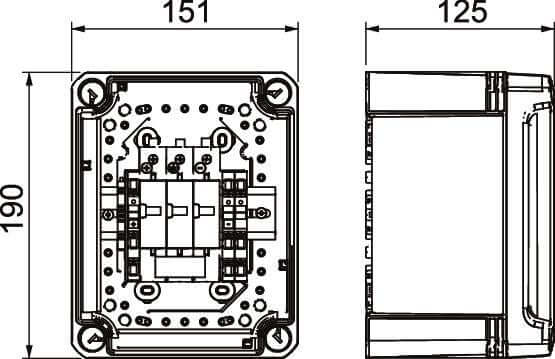

OBO Generator Connection Box, Type 2, for 1 string
| Type of manufacturer: | PVG- C1000K 100 |
|---|---|
| Manufacturer Art. No.: | 5088405 |
| Art. Nr.: | 16600 |
| Pieces per package unit: |
|
Prices are only visible to business customers upon successful registration.
- New
Product number:
16600
Description
OBO Generator Connection Box, Type 2, for 1 string
Manufacturer’s reference: 5088405 / PVG- C1000K 100
Type 2 system solution for Photovoltaic systems for connecting 1 string with an MPP tracker. For DC protection of the Inverter. Fault-tolerant Y-circuit in accordance with VDE 0100-712 (EN 50539-12) with status indicator. Encapsulated zinc oxide varistor arresters. With thermal and dynamic disconnection device. With visual function indicator. Pre-assembled in a polycarbonate housing (IP67), UV-resistant for outdoor use, including cable gland set and pressure equalisation element.
Product features
- Rating: 1000 V DC
- Mains type: DC
- Protection level: ≤4.0 kV
- Signalling on the device: visual
- SPD in accordance with EN 61643-11: Type 2
- LPZ: 1→2
- Protection rating: IP67
- Impact resistance: IK08
- Number of inputs: 1
- Type of entry: Screw connection
- Housing material: PC
- Operating temperature range: -25 – 60 °C
- Number of cable entries: 4
- With earth connection: yes
- Max. DC input voltage: 1000 V
- String fuse protection: none
- Max. input current per string: 41 A
- Number of string inputs: 1
- Fitted with load break switch: no
- Installation type: pre-assembled in the housing
- Maximum surge current (8/20 µs): 40 kA
- Colour: light grey; RAL 7035
