OBO GR-Magic® 55 FT mesh duct – 200 mm
| Type of manufacturer: | GRM 55 200 4.8FT |
|---|---|
| Manufacturer Art. No.: | 6001421 |
| Art. Nr.: | 16615 |
| Pieces per package unit: |
|
| Accessory type: | Installation accessories |
Prices are only visible to business customers upon successful registration.
- New
Product number:
16615
Description

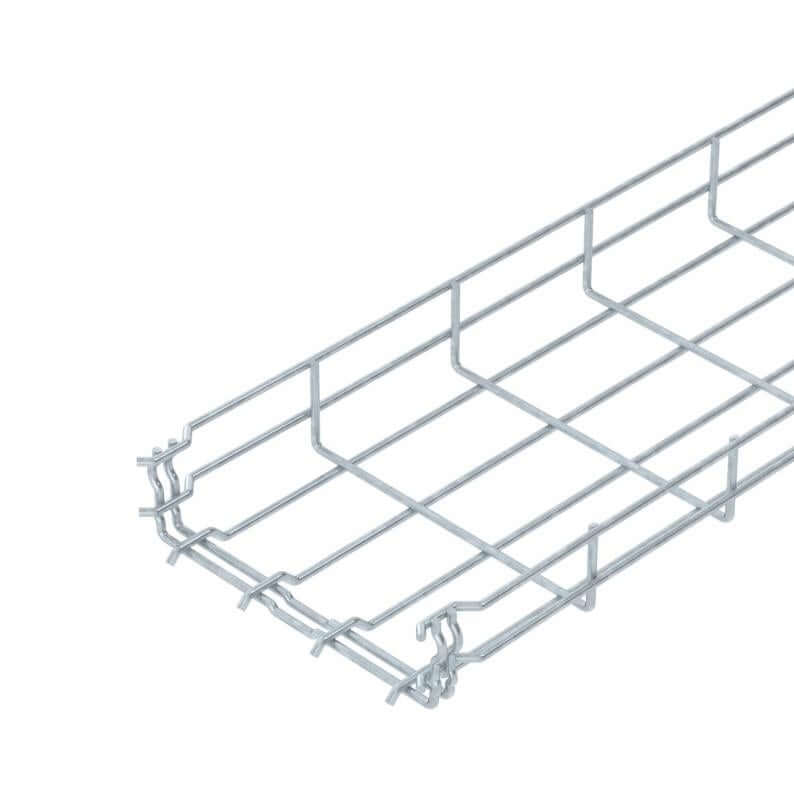

OBO GR-Magic® 55 FT mesh trunking – 200 mm
U-shaped mesh trunking made from spot-welded steel wires, for the horizontal routing of lightweight cables and wires, e.g. IT, telephone and lighting cables. Certified to DIN EN 61537 VDE. Suitable for indoor and outdoor use. Time-saving, screwless installation thanks to the snap-fit mechanism. Suitable for direct and raised floor installation, as well as wall and ceiling mounting on a support system. Continuous equipotential bonding guaranteed without additional components.
Tested as a cable-specific support structure in accordance with DIN 4102 Part 12 for functional integrity, functional integrity classes E30 to E90.
Product advantages
- Suitable for indoor and outdoor use
- Magnetic shielding attenuation: 15 dB without cover, 25 dB with cover
- Simple plug-in assembly – no additional connector components required

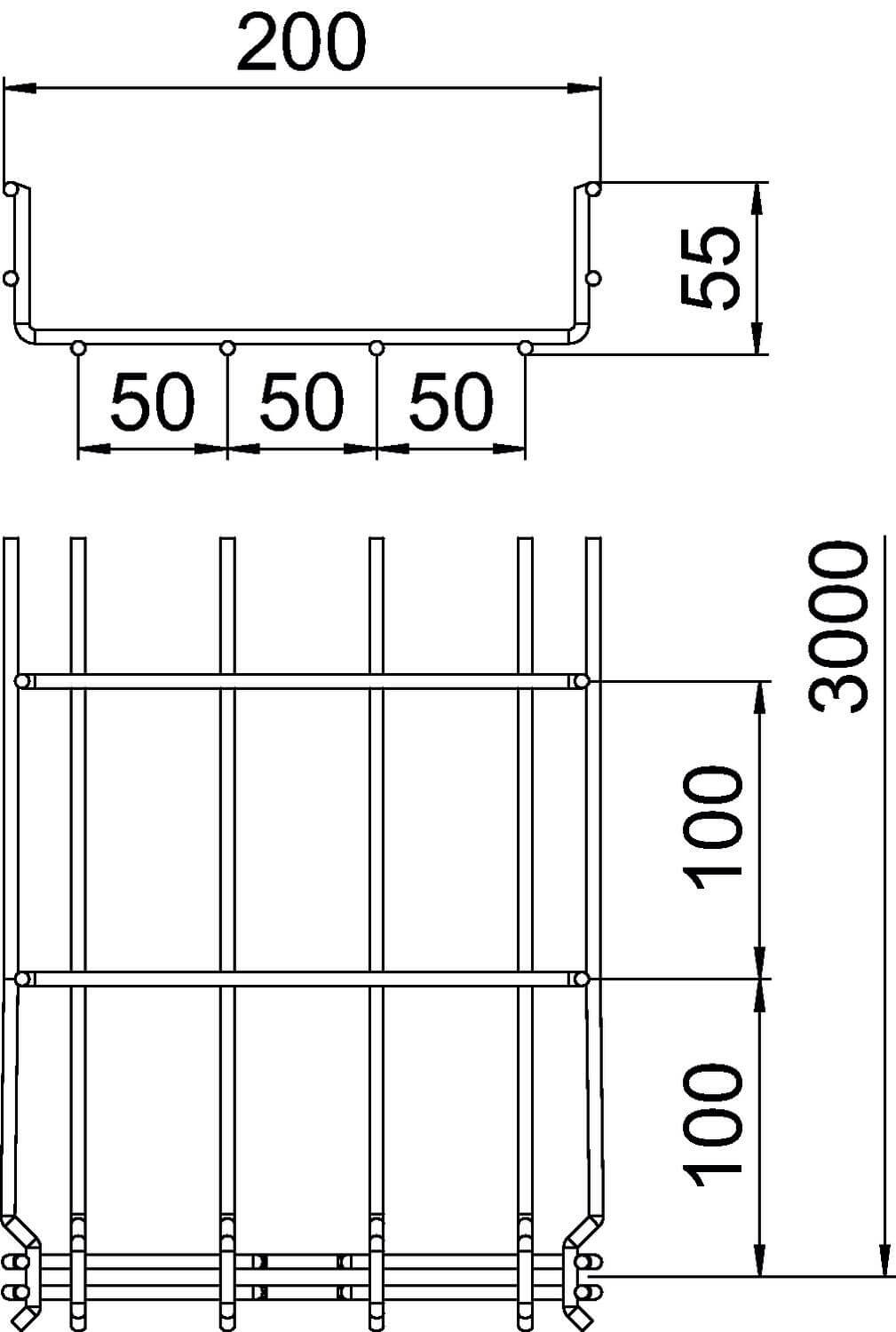

Product characteristics
- Material: Steel, St
- Surface finish: hot-dip galvanised, DIN EN ISO 1461, FT
- Profile shape: U-shape
- Length: 3000 mm
- Width: 200 mm
- Height: 55 mm
- Wire thickness: 4.8 mm
- Connector: Magic quick-connect
- Functional integrity: yes
- Screwless connectors: yes
