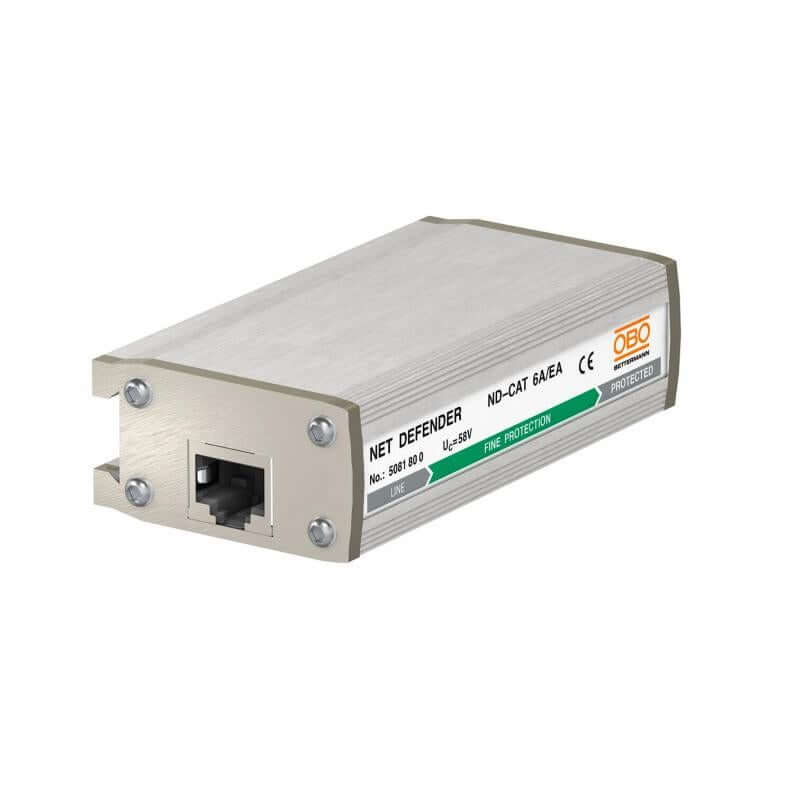

OBO surge protection for high-speed networks up to 10 Gbit (Class EA/CAT6A)
| Type of manufacturer: | ND-CAT6A/EA |
|---|---|
| Manufacturer Art. No.: | 5081800 |
| Art. Nr.: | 16636 |
| Pieces per package unit: |
|
| Accessory type: | Overvoltage protection |
Prices are only visible to business customers upon successful registration.
- New
Product number:
16636
Description
OBO surge protection for high-speed networks up to 10 Gbit (Class EA/CAT6A)
Manufacturer’s part number: 5081800 / ND-CAT6A/EA
Data line protection device for high-speed networks. Earthed via top-hat rail or connection cable. Supports Power over Ethernet+ up to 1A. Plug-in design. Includes top-hat rail mounting kit and earthing cable.
Product advantages
- Low protection level at high current loads
- Quick installation thanks to pluggable design
- Includes top-hat rail mounting kit and earthing cable
Product features
- Rated voltage: 58V
- Number of poles: 8
- Type: Fine-stranded, 8 conductors + shield
- Channel performance ANSI/EA: CAT 6A
- Channel performance ISO/IEC: Class EA
- Insertion loss: ≤3
- Earthing via connecting cable/top-hat rail
- Explosion-proof version: no
- Telecommunications contact: no
- Total surge current (8/20): 7 kA
- Maximum continuous AC voltage: 41 V
- Maximum continuous DC voltage: 58 V
- Category: Type 2+3 / C2+C1
- Cable type for surge protection devices: CAT data cable
- LPZ: 1→3
- Mounting type: Connector/cable adapter
- Test standard: IEC 61643-21
- Shield connection: yes
- Shielding: direct
- Protection rating: IP20
- Insulation voltage (core to core): <120 V
- Protection level conductor–earth: <700 V
- SPD in accordance with IEC 61643-21: Class II+III / C2+C1
- Connector system: RJ45 8(8)
- Surge current withstand capability (conductor to conductor): C1: 0.3 kV / 0.15 kA (8/20 µs)
- Surge current withstand voltage between conductor and earth: C2: 2 kV / 1 kA (8/20 µs)
- Operating temperature range: -40 – 80 °C
