PowerKeeper ST50CF + SH125CX - 125 kW / 50 kWh
| Type of manufacturer: | ST50CF + SH125CX |
|---|---|
| Manufacturer Art. No.: | ST50CF+SH125CX |
| Art. Nr.: | 15673 |
| Battery type: | LFP |
| Installation location: | Outdoor |
| Usable capacity: | 49.9 kWh |
| Power: | 125 kW |
| Warranty: | 10 years |
| Charging power: | 125 kW |
| Discharging power: | 125 kW |
| Communication: | CAN |
| Commercial storage type: | Modular with inverter |
Prices are only visible to business customers upon successful registration.
- New
On request
Product number:
15673
-
-
{ "id": "617c70739dff5589bfd7113411acf495", "item_brand": "", "item_name": "PowerKeeper STC12.5 - 12.5 kWh battery module", "item_id": "15161", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "617c70739dff5589bfd7113411acf495" } } -
{ "id": "406f1c02617a556f9044c1f022a296fc", "item_brand": "", "item_name": "Sungrow & Sungrow PowerKeeper Accessory (Slave)", "item_id": "15668", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "406f1c02617a556f9044c1f022a296fc" } }
-
Description

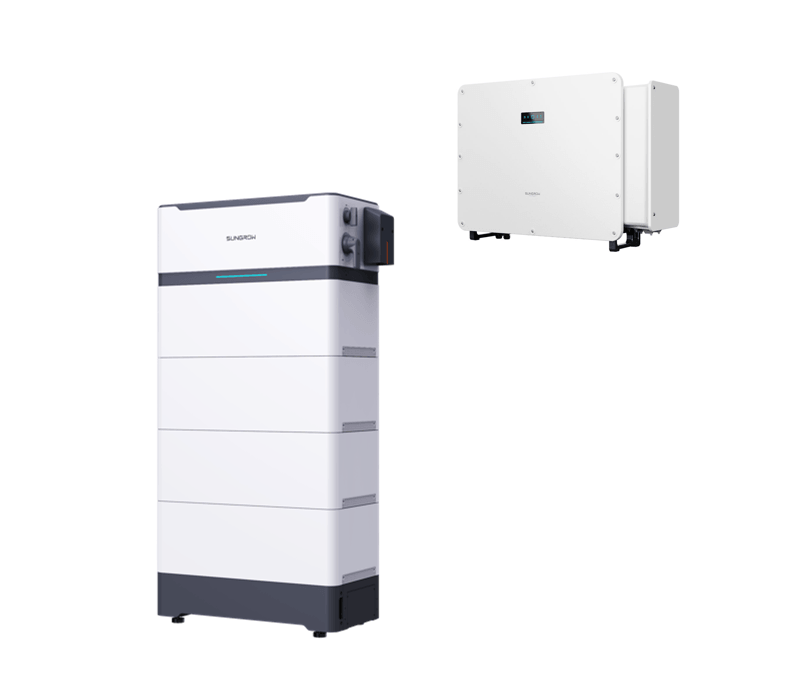

PowerKeeper ST50CF + SH125CX – 125 kW / 49.9 kWh C&I storage system
The Sungrow PowerKeeper ST50CF bundle is the compact entry-level solution to Sungrow’s modular C&I storage range, combining the SH125CX hybrid inverter with a 49.9 kWh LFP storage system.
The system is ideal for smaller commercial projects, load management, PV Self-consumption optimisation and backup applications.
- Minimum configuration of the PowerKeeper system
- Expandable with additional battery modules and slave accessories
- Battery warranty: 10 years
- Inverter warranty: 5 years
Technical system data:
- Battery capacity: 49.9 kWh
- Inverter power: 125 kW
- Cell technology: Lithium iron phosphate (LFP)
- Max. charging/discharging power: 125 kW
- DC-coupled system
- Backup switchover: ≤ 10 ms
- Max. PV oversizing: 200%
- MPPTs: 10
- Max. input current: 40 A per MPPT
- Protection class: IP66
- Corrosion protection: C5
- Cooling: Forced air cooling
- Depth of discharge (DoD): 0–100%
Contents:
- 1x Sungrow SH125CX hybrid inverter (125 kW)
- 4x STC12.5 battery modules
- 1x PowerKeeper Accessory Master
