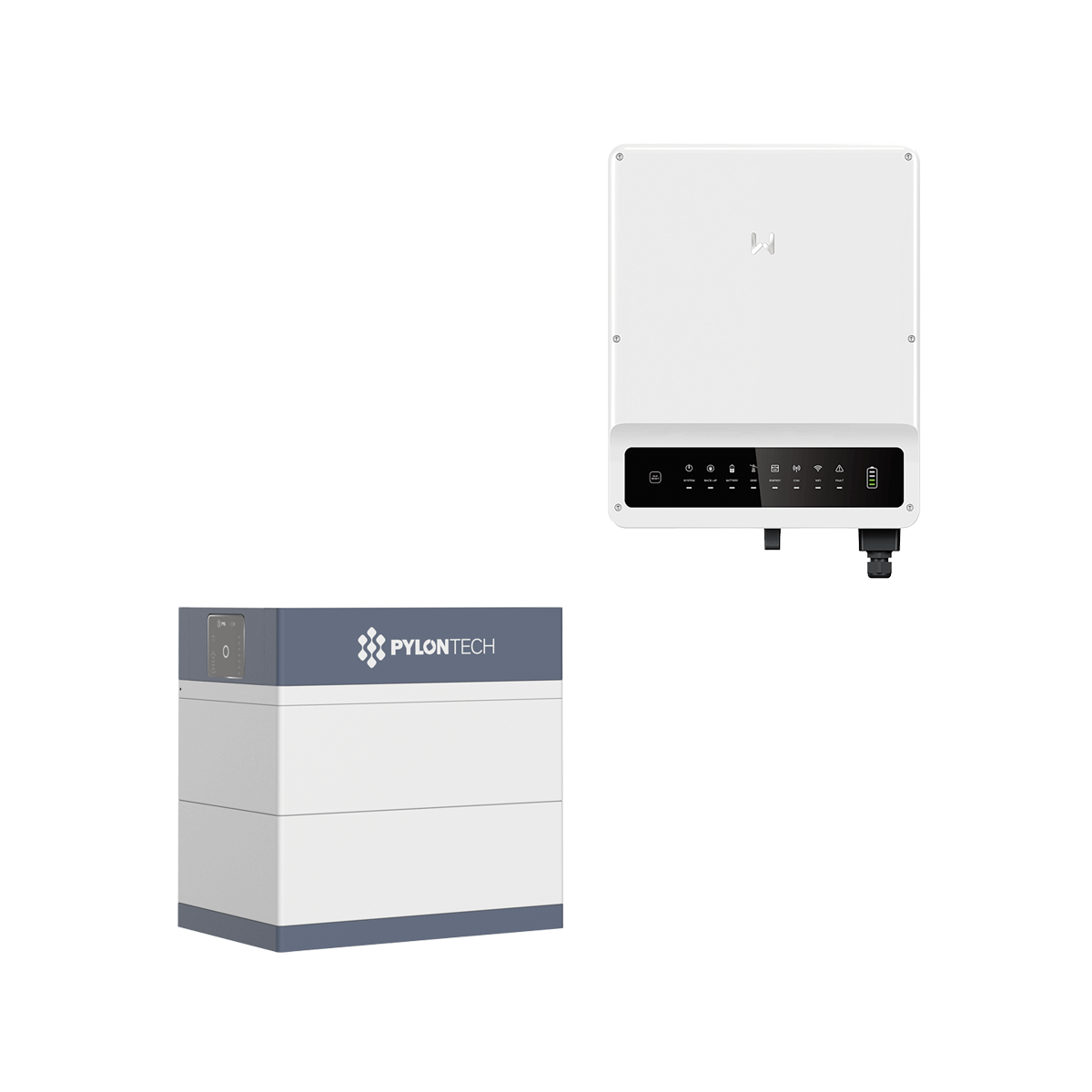

Pylontech Force H3 10.24 kWh with GoodWe & GoodWe ET Plus 16A - GW8KN-ET
| Art. Nr.: | 14095 |
|---|---|
| Inverter: | GW8KN-ET |
| Phases: | 3 |
| Solar battery: | Pylontech Force H3 10,24 kWh |
| Net capacity: | 9.69 kWh |
| Battery type: | High volt lithium-iron-phosphate |
| Package type: | 3-phase, High voltage battery, Solar battery packages |
Prices are only visible to business customers upon successful registration.
- Top-Deal
- Sale
Available from 10.08.2026
Product number:
14095
-
-
{ "id": "6eda3a679354549f9c4fd2d4dad2ab30", "item_brand": "", "item_name": "Pylontech Force H3 5.12 kWh Batteriemodul", "item_id": "13571", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "6eda3a679354549f9c4fd2d4dad2ab30" } } -
GoodWe & GoodWe EV Charger HCA G2 11 kW cable 7.5 m- Art. Nr.: 14143
- GoodWe
Available from 06.07.2026{ "id": "a1259346d18057749df4b61bf3c67906", "item_brand": "", "item_name": "GoodWe & GoodWe EV Charger HCA G2 11 kW cable 7.5 m", "item_id": "14143", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "a1259346d18057749df4b61bf3c67906" } } -
GoodWe & GoodWe EV Charger HCA G2 22 kW cable 7.5 m- Art. Nr.: 14145
- GoodWe
Available from 15.06.2026{ "id": "ce8cb048c3c65ff583474c0a3dc50385", "item_brand": "", "item_name": "GoodWe & GoodWe EV Charger HCA G2 22 kW cable 7.5 m", "item_id": "14145", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "ce8cb048c3c65ff583474c0a3dc50385" } }
-
Description
The Pylontech Force H3 10.24 kWh with the GoodWe ET Plus 16A – GW8KN-ET in the battery pack
The Force H3 is the latest high-voltage battery from Pylontech. The stackable system enables quick installation and flexible configurations ranging from 204.8 to 716.8 V and 10.24 to 215.04 kWh. It is compatible with many inverters, e.g. Kostal and GoodWe.
In combination with the GoodWe ET Plus 16A hybrid inverter, self-consumption can be increased and emergency power supply ensured in the event of a grid failure. Additional loads, such as Wallboxes or Heat pumps, can be integrated via the potential-free contact.
Package benefits
- 3-phase Smart meter included with the ET Plus Series 16A
- Emergency power capability
- High battery safety standard VDE 2510-50
- Integration into the SEMS portal
Product features Pylontech Force H3 10.24 kWh
- Net capacity: 9.69 kWh
- Nominal voltage: 204.8 V
- Charge/discharge current: 50 A
- Max. charge/discharge current: 52 A
- Cell chemistry: LFP
- Protection class IP55
- Weight: 92 kg
- Dimensions: 530 x 540 x 350 (HxWxD)
- Communication: CAN/RS485
Product features GW8KN-ET
- Mains connection: 3-phase
- AC power: 8 kVA
- 8 kW emergency power output via separate output
- MPP trackers: 2
- String connections per MPPT: 1
- Max. input current per MPPT: 16 A
- Max. short-circuit current per MPPT: 21.2 A
- Communication: RS485, Wi-Fi (optional LAN)
- Dry contact available (programmable via SolarGo app) (SG-Ready)
- Push-in terminals for the communication interfaces simplify installation
- WiFi module included
- Dimensions: 516 x 415 x 180 mm (H x W x D)
- Protection class: IP66
- Weight: 24.0 kg
Contents
- Pylontech Force H3 10.24 kWh comprising 1 BMS and 2 battery modules
- GoodWe ET Plus 16A - GW8KN-ET including 3-phase Smart meter
