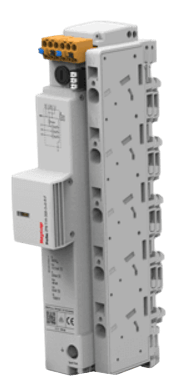

Raycap ProTec ZPN package with T1H-300-3+1-E and feed terminal

Raycap ProTec ZPN package with T1H-300-3+1-E and feed-in terminal

The ProTec ZPN T1H surge arrester provides comprehensive protection against lightning strikes and surges in main distribution boards and is suitable for TN-S and TT grid systems. The ProAcc ZP-TB feed-in terminal offers reliable, safe connections for modern solar systems. The ProAcc ZP-TB busbar feed-in terminal complies with DIN and IEC standards and enables quick, flexible connection. These accessories support the performance and safety of your Photovoltaic system efficiently and sustainably.

Product features

Arresters:

• Lightning surge current (10/350 µs) I_imp: 7.5 kA / 30 kA (L-N)/(N-PE)
• Maximum continuous voltage (AC) U_c: 300 V / 305 V (L-N)/(N-PE)
• Rated discharge surge current (8/20 µs) I_n: 20 kA / 80 kA (L-N)/(N-PE)
• Maximum discharge surge current (8/20 µs) I_max: 40 kA / 100 kA (L-N)/(N-PE)
• Dimensions LxWxH: 36 mm x 102.3 mm x 238.7 mm
• Leakage-free

Terminal:

• Rated current according to IEC 61984 IN: 101 A
• Rated current: 125 A
• Conductor cross-section: 1.5–25 mm² (rigid, multi-strand) / 1.5–16 mm² (fine-strand)
• Connection technology: Tension spring connection
• Protection class with cover: IP20
• Dimensions LxWxH: 12.5 mm x 54.3 mm x 220.4 mm

Product advantages

• Tool-free installation – Plug & Play
• Compact design of the surge protection device and terminal block, totalling 48.5 mm
  • This leaves sufficient space for additional lightning protection and surge protection components, as well as the power supply for the smart meter and feed-in area
