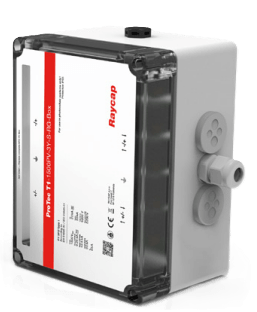

Raycap surge protection DC type I+II 1 MPPT, terminals
| Type of manufacturer: | ProTec T1-1100PV-3Y-RG Box |
|---|---|
| Manufacturer Art. No.: | IZ515649000 |
| Art. Nr.: | 15786 |
| Accessory type: | Overvoltage protection |
Prices are only visible to business customers upon successful registration.
- New
On request
Product number:
15786
Description
Raycap DC surge protection, Type I+II for 1 MPPT
The Raycap ProTec T1-1100PV-3Y-RG Box is a pre-assembled surge protection box designed to provide reliable protection for Photovoltaic systems on the DC side. This compact solution combines a high-performance Type 1+2 lightning and surge arrester in a robust housing and is ideal for PV systems with a single MPP tracker.
The protection box has been developed for use in buildings with and without external lightning protection systems and meets the requirements of the IEC/EN 61643-31 standards. The durable housing with a high protection rating allows for use both indoors and outdoors.
Product features:
- Maximum continuous voltage: 1100 V
- Total lightning surge current: 12.5 kA
- Rated current: 35 A
- Protection class: IP 65
- Number of MPP trackers: 1
- PE conductor cross-section: up to 16 mm²
- Connection of PV strings with MC4 connectors (Stäubli)
- Mounting type: Wall - Indoor/Outdoor
