SMA Backup 3P Kit
| Manufacturer Art. No.: | BU-SBSE-3P-50 |
|---|---|
| Art. Nr.: | 13281 |
| Pieces per package unit: |
|
| Accessory type: | Emergency power |
Prices are only visible to business customers upon successful registration.
Available from stock
Product number:
13281
Description

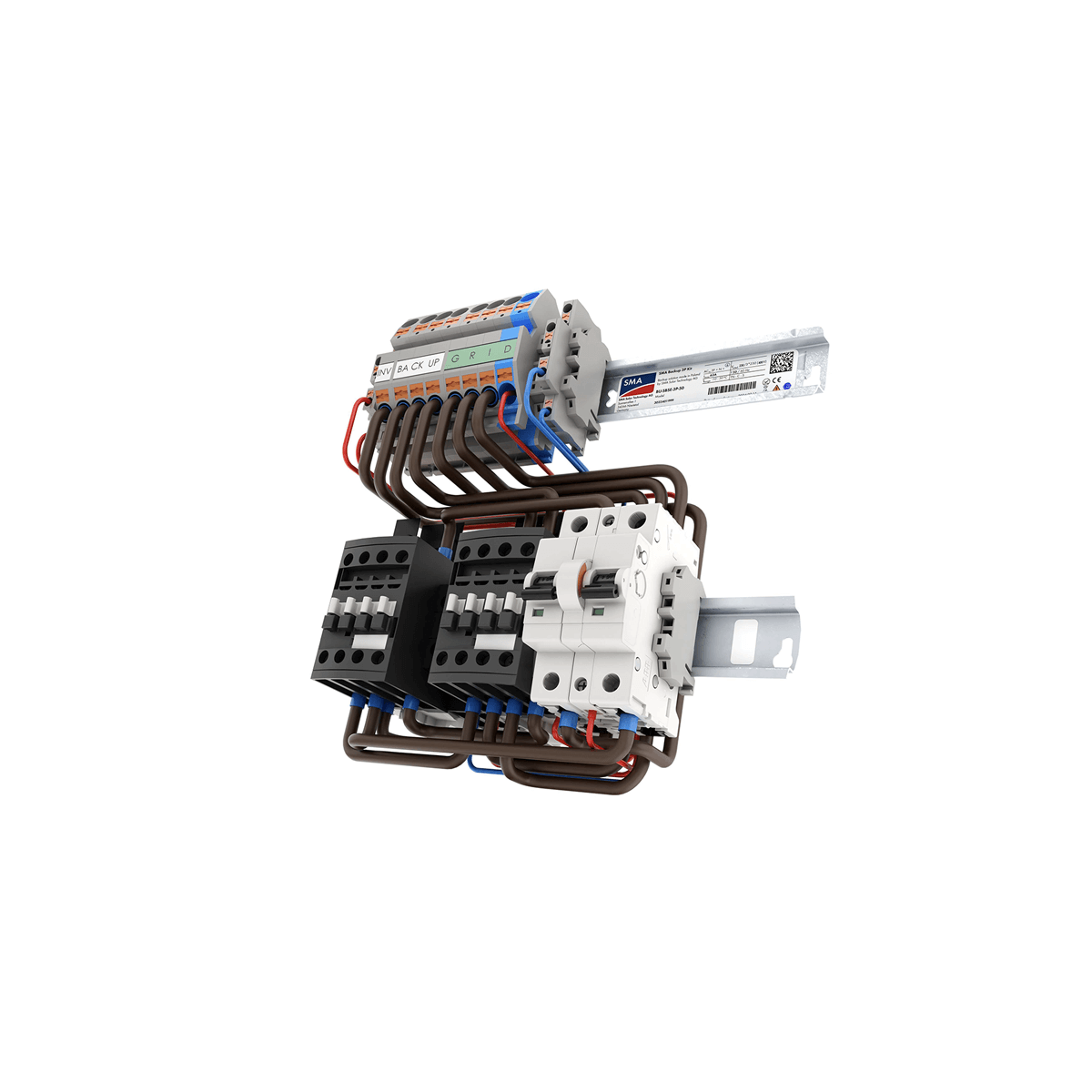

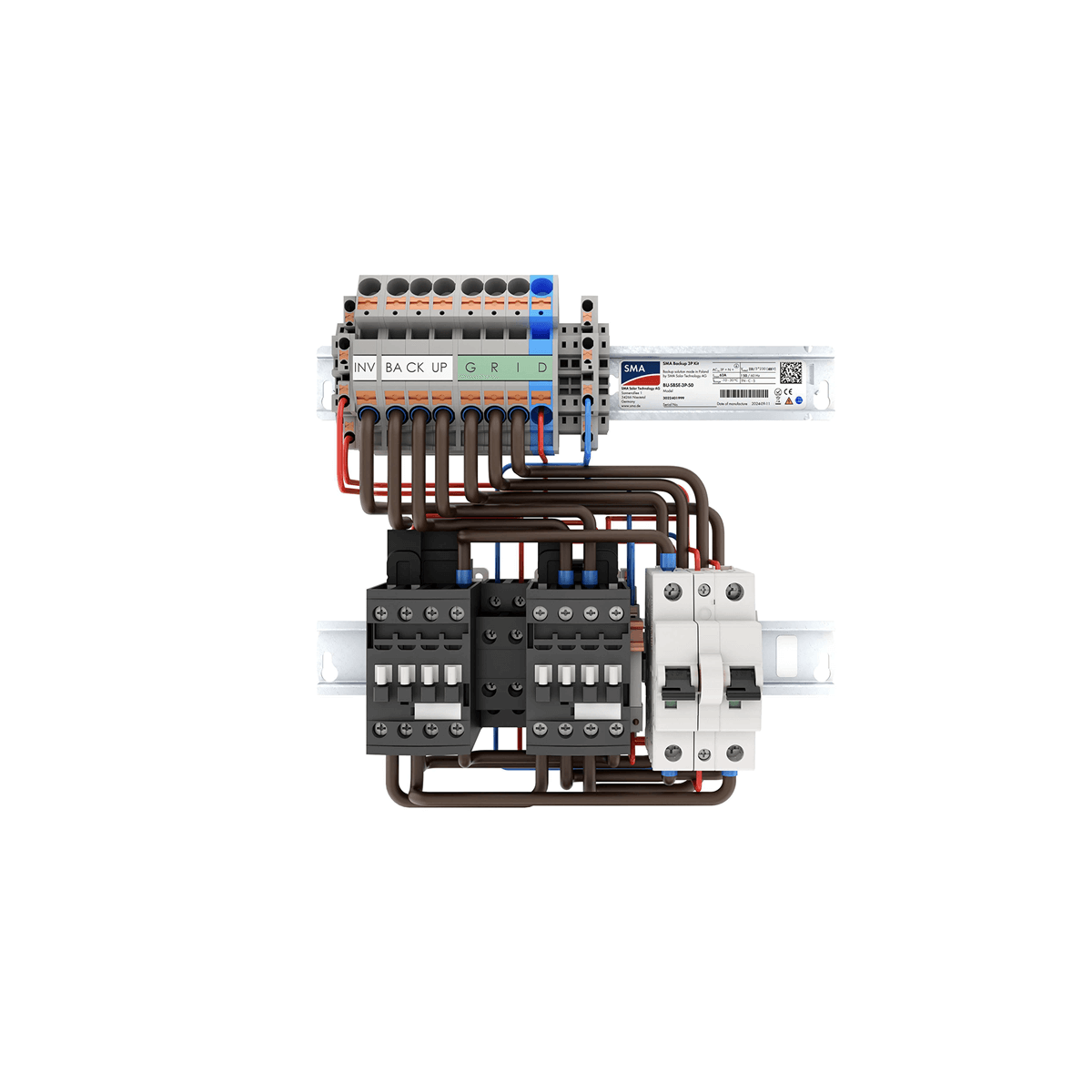

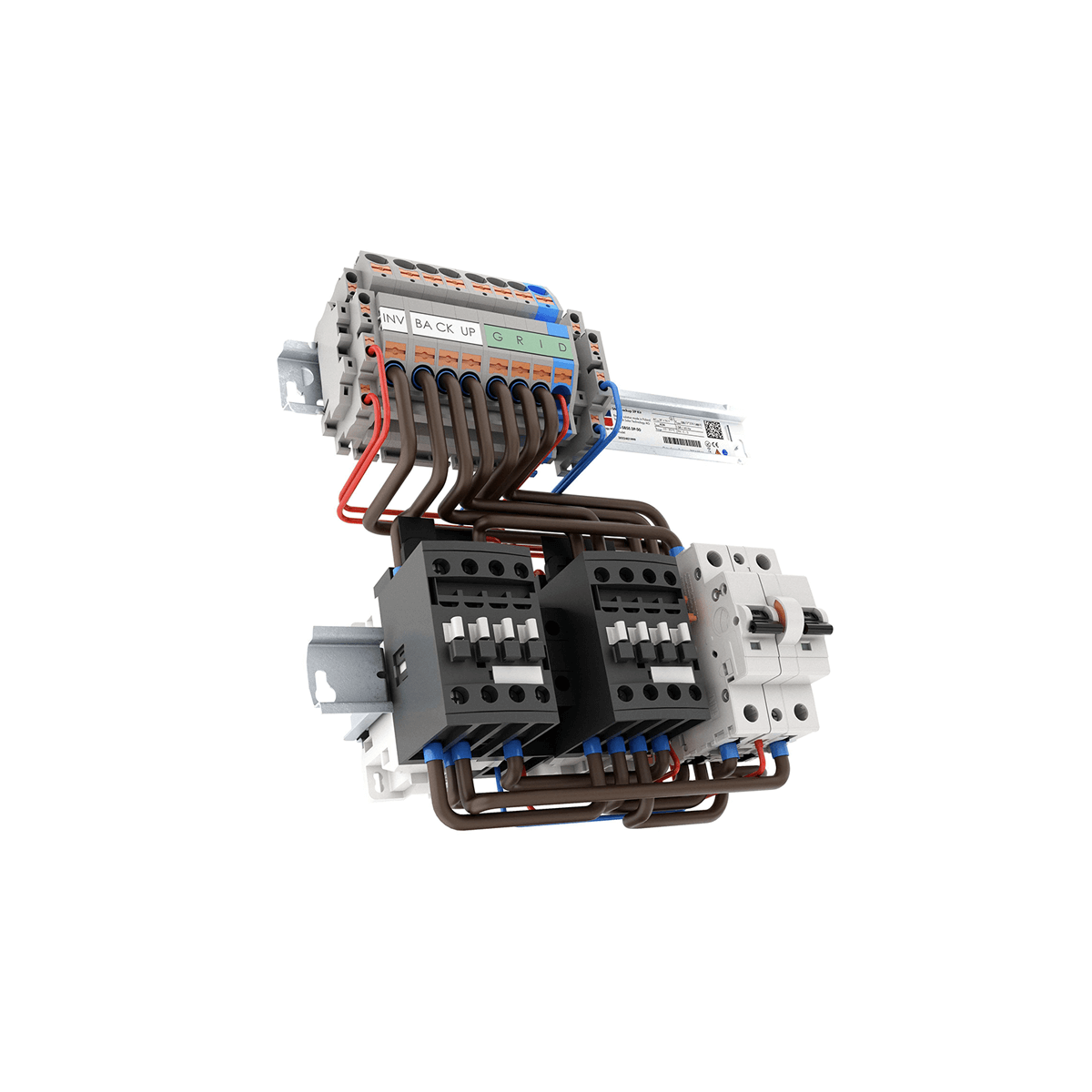

SMA Backup 3P Kit
The SMA Backup 3P Kit offers a reliable backup power solution for households with a three-phase grid connection. Thanks to intelligent phase coupling, it supplies single-phase loads on all three phases, ensuring a stable power supply even in the event of a grid failure. The automatic switchover function ensures a seamless transition between grid and backup power operation. Thanks to its simple integration into the existing meter cabinet, flexible installation via DIN-rail mounting and low self-consumption (<1 W), the system is extremely efficient. Compatible with Sunny Boy Smart Energy Inverters – ideal for a smart, uninterrupted energy supply.
Product benefits:
- Automatic phase coupling for an uninterrupted power supply in the event of a mains failure
- Seamless transition between grid and backup power operation (switchable in 1–600 s)
- Low self-consumption (<1 W in grid-parallel operation, 4 W in backup power mode)
- Simple installation via DIN rail mounting in the existing meter cabinet
- High performance with a maximum apparent output power of up to 11,040 VA
- Compatibility with Sunny Boy Smart Energy inverters (SBSE3.6-50 to SBSE6.0-50)
Technical specifications:
- Input voltage: 230 V / 400 V
- Mains frequency: 50 Hz
- Maximum mains fuse rating: 63 A
- Max. rated power: 7,300 W (at 230 V, 50 Hz)
- Max. apparent output power: 11,040 VA (at <100 ms) / 9,200 VA (at <30 s)
- Switching mode: Automatic, switchable between 1 s and 600 s
- Installation: Top-hat rail mounting in meter cabinet
- Protection class: IP20 (for indoor use only)
- Operating temperature range: -10 °C to +30 °C
- Max. operating altitude: 3,000 m above sea level
