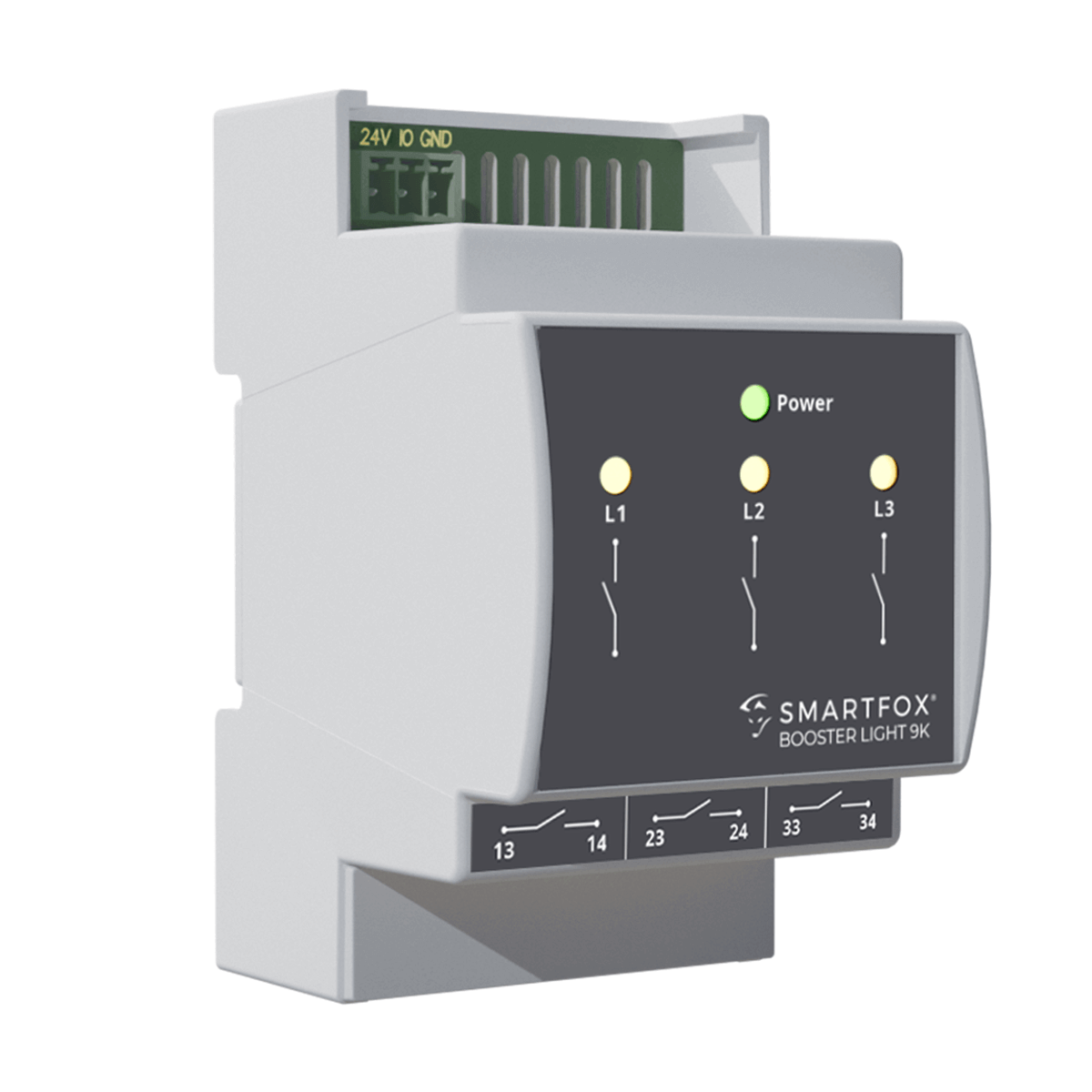

SMARTFOX Booster Light 9K
| Manufacturer Art. No.: | 0796554799223 |
|---|---|
| Art. Nr.: | 14504 |
| Pieces per package unit: |
|
| Heating capacity: | 3 kW |
| Dimensions: | 90 x 50,5 x 62 in mm (HxWxD) |
| Power requirements: | 3 kW |
Prices are only visible to business customers upon successful registration.
Available from stock
Product number:
14504
-
-
SMARTFOX Pro 2 – Energy consumption regulator incl. 80A current transformer- Art. Nr.: 7707
- SmartFox
Available from stock{ "id": "0b062a5b7cc952bb83af8310eac4278e", "item_brand": "", "item_name": "SMARTFOX Pro 2 – Energy consumption regulator incl. 80A current transformer", "item_id": "7707", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "0b062a5b7cc952bb83af8310eac4278e" } } -
SmartFox PRO 2 light control unit incl. 3x80A current transformer- Art. Nr.: 7708
- SmartFox
Available from stock{ "id": "6c63ae77980a5653a7a3a9637049bc5c", "item_brand": "", "item_name": "SmartFox PRO 2 light control unit incl. 3x80A current transformer", "item_id": "7708", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "6c63ae77980a5653a7a3a9637049bc5c" } }
-
Description
SmartFox Booster Light 9K – Make clever use of surplus solar energy!
With the SMARTFOX Booster Light 9K, you can convert surplus photovoltaic energy into hot water – efficiently, sustainably and cost-effectively. The compact device controls existing Heating rods or SmartFox screw-in heating elements, thereby significantly increasing your self-consumption rate. Thanks to its three-stage circuit for resistive loads up to 9 kW, it is the perfect addition to PV systems with a Battery storage system. Tool-free DIN rail mounting and intuitive control via the SmartFox app or web portal make installation and operation child’s play. The integrated status LEDs for each switching stage guarantee full control.
Your product benefits:
- Uses surplus PV energy for hot water production – increases Self-consumption and reduces electricity costs
- Three-stage switching for loads up to 9 kW – ideal for large Heating rods
- Easy integration into existing systems with the SmartFox Energy Manager
- Tool-free DIN rail mounting for quick installation
- Full control thanks to status LEDs and the SmartFox app/web portal
- Compatible with 3-phase heating rods up to 9 kW
Product features:
- Item number: 0796554799223
- Operating voltage: 5–30 VDC (nominal 24 VDC)
- Max. current consumption: 100 mA at 24 VDC
- Output voltage: 250 VAC (max. 400 VAC)
- Switching capacity: max. 4000 VA
- Contacts: 3x NO contacts, material AgSnO₂
- Continuous current: 16 A
- Protection class: IP20
- Dimensions: 90 × 50.5 × 62 mm
- Weight: 116 g
- Operating temperature: –20 °C to +85 °C
- Mounting: DIN rail TH-35 (3TE)
- Certificates: CE, RoHS
-
