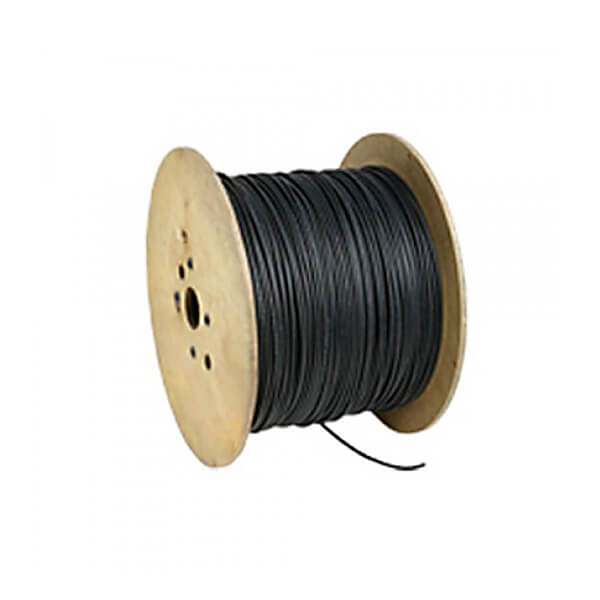

Solar cable HELUKABEL Solarflex H1Z2Z2-K 4.0 mm² 500m black
| Manufacturer Art. No.: | 713530 |
|---|---|
| Art. Nr.: | 5756 |
| Pieces per package unit: |
|
| Accessory type: | DC solar cable |
Prices are only visible to business customers upon successful registration.
Product number:
5756
Description
Helukabel Solarflex H1Z2Z2-K solar cable, 4.0 mm², 500 m, black
Tested and TÜV-certified solar cable in accordance with EN 50618. This standard-compliant solar cable is suitable for practical use outdoors, indoors and also when laid in the ground, whether in open or fixed installations, as well as when suspended freely. Its robust material composition and high-quality workmanship ensure maximum quality and safety, even after many years of exposure to environmental influences.
Product features:
- Cable for PV systems in accordance with EN 50618
- Galvanised copper stranded wire, fine-stranded in accordance with DIN VDE 0295 Class 5 / IEC 60228 Class 5
- Weathering/UV resistance in accordance with EN 50618 Annex E
- Ozone-resistant in accordance with EN 50396, Section 8.1.3, Method B
- Flame-retardant in accordance with IEC 60332-1-2
- Smoke density in accordance with IEC 61034
- Halogen-free in accordance with DIN VDE 0285-525-1 / DIN EN 50525.1 Annex B / DIN EN 60754-1 / IEC 60754-1
- Suitable for direct burial. Recommendation: Installation in conduit.
- The product complies with the Low Voltage Directive 2014/35/EU
Technical data for Helukabel Solarflex H1Z2Z2-K 4.0 mm² 500 m black solar cable:
- Cross-section: 1 × 4 mm²
- Length: 500 m
- Sheath colour: Black
- Temperature range: -40°C to +90°C
- Permissible operating temperature at the conductor: +120°C
- Rated voltage: - AC
1.0/1.0 kV - DC
1.5/1.5 kV - Maximum permissible DC voltage: 1.8 kV
- Test voltage: AC 6.5 kV
- Minimum bending radius: When stationary, 5 times the outer diameter
-
