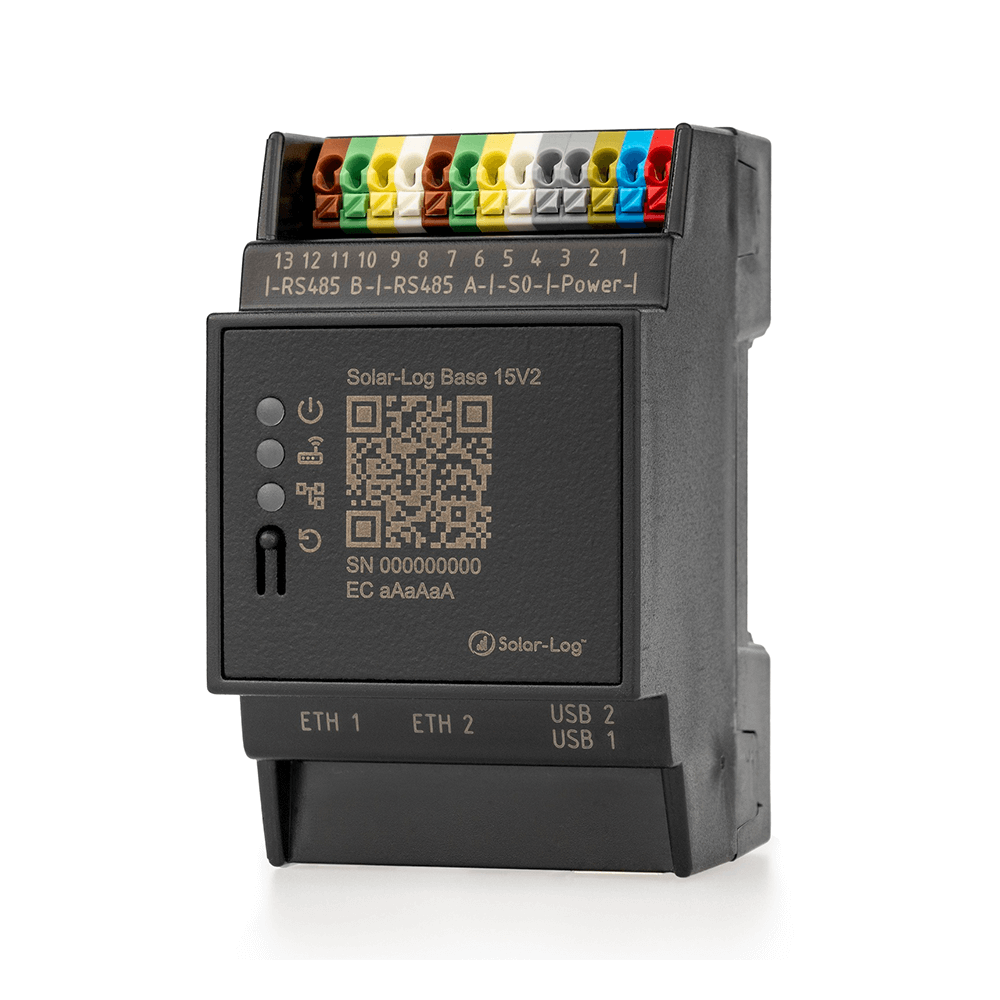

Solar-Log Base 15V2 - without display
Solar-Log Base 15V2 (without display)
The Solar-Log Base 15V2 is the latest generation of Solar-Log’s proven PV data logger and offers smart solutions for system monitoring, feed-in management and direct marketing – all in one compact device. With a maximum system size of 15 kWp, it is perfectly suited to detached houses, small commercial premises and Battery storage systems. Electricians benefit from simple plug-and-play DIN-rail mounting and a modular licensing concept that guarantees maximum flexibility with minimal installation effort. The integrated bus analysis function replaces the oscilloscope and saves valuable time during commissioning. The Solar-Log WEB Enerest™ 4 portal and the accompanying app allow PV systems to be monitored and visualised intuitively – anytime, anywhere.
Product features:
- Max. system size: 15 kWp, expandable to 30 kWp via licence
- 2 × RS485 or 1 × RS422 interface for communication with Inverters
- 2 × Ethernet ports for network connection and external components
- 2 × USB 2.0 interfaces for configuration, backup and updates
- Integrated bus analysis function for signal quality assessment
- S0 input for additional energy meters
- 4 GB internal memory with a recording duration of up to 10 years
Product benefits:
- Simple DIN rail mounting (TH35) saves time during installation
- Plug & Play functionality with installation wizard
- Modular expansion via software licences and add-on modules
- Compatible with all standard Inverters, meters and smart energy components
- Direct VPN marketing possible without an additional router
- Visualisation locally or via the Solar-Log WEB Enerest™ 4 portal
- Intuitive error reporting and status monitoring via the portal and app
The Solar-Log Base 15V2 requires an external power supply (not included). The power supply must comply with the specifications (24 V DC ±5%, alternatively 12 V DC ±5%).
-
