Eniris SmartgridOne Pro EDS

Please note: The relevant licences must be activated within 60 days of the SmartgridOne being commissioned!

The Eniris SmartgridOne Pro EDS is an intelligent energy management system (EMS) for residential and commercial premises with a controlled total power output of up to 1 MW.
It automatically optimises energy consumption and generation, thereby supporting a higher self-consumption rate as well as reducing energy costs and Consumption peaks.
As a centralised energy management solution, it enables the intelligent coordination of various energy components.

Product benefits

• Manufacturer-independent – highly compatible with the Memodo portfolio
• Optimisation of energy consumption and generation
• Maximisation of self-consumption of Solar power
• Reduction in energy costs and Consumption peaks
• Suitable for PV systems, Battery storage systems and EV charging stations
• Support for heat pumps and energy meters
• Centralised communication via Ethernet/Modbus TCP
• Multiple Modbus interfaces for device integration

Product features – SmartgridOne Pro EDS

• Application: Commercial and industrial (C&I)
• Power range: 0–1 MW

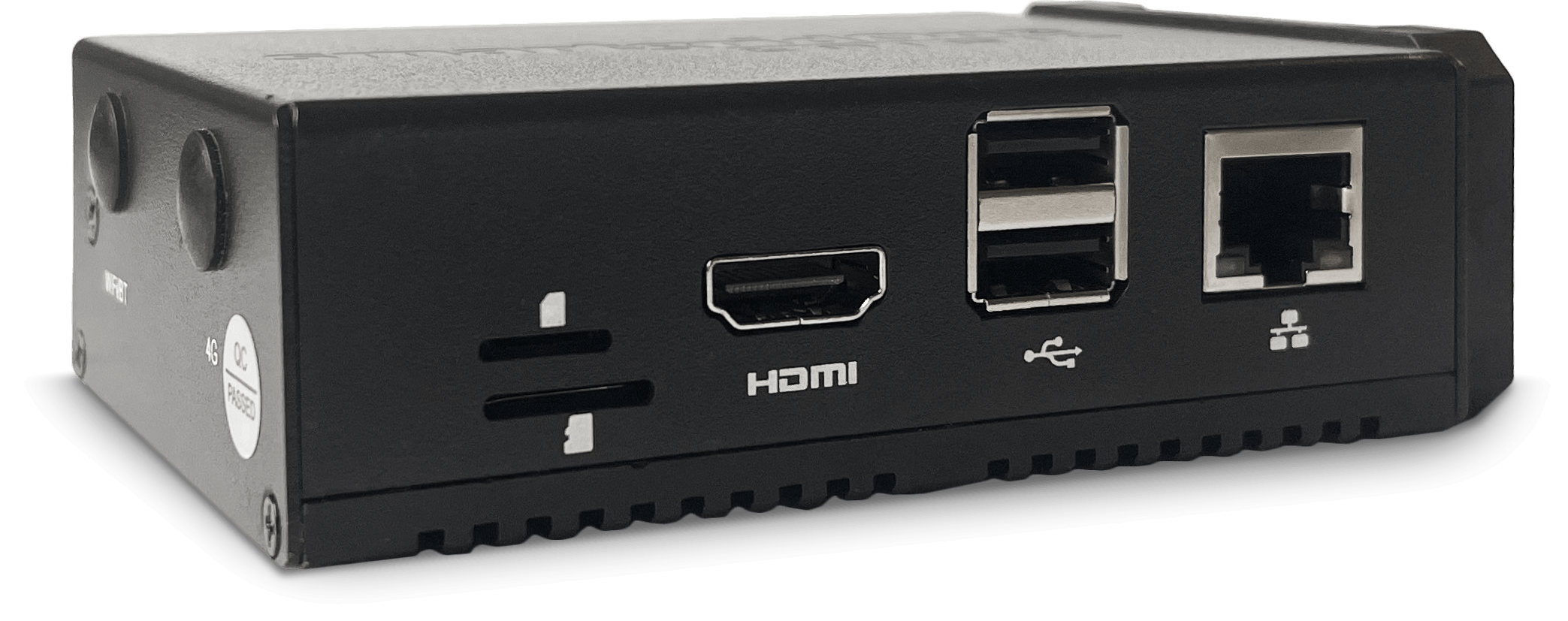

• Interfaces: 4x RS485, 2x USB ports, RJ45 Gigabit Ethernet
• Remote access: Configuration and monitoring via SmartGridX
• Power supply: 230 V to 12 V via mains adaptor
• Housing material: Aluminium
• Dimensions: 102 x 73 x 35.2 mm (DIN rail mount and antenna not included)
• Weight: 0.5 kg

Contents of the pack

• Eniris SmartgridOne Pro EDS
• Modbus RS485 interface (for multiple Modbus RTU connections)
• Modbus RJ45 interface (for multiple Modbus TCP connections)
• Power supply unit 230 V / 12 V
• DIN rail mounting

Optional

• P1 adapter cable for the smart meter / digital meter
• Relay contacts
