SolarEdge optimizer S1200-1GM4MBV
| Manufacturer Art. No.: | S1200-1GM4MBV |
|---|---|
| Art. Nr.: | 8125 |
| Pieces per package unit: |
|
| Inverter type: | Optimizer |
| AC power: | 1.2 kW |
| Warranty: | 25 years |
| Communication: | Powerline |
| MPP voltage range: | 12,5 - 105 Volt |
| WEEE-Number: |
|
Prices are only visible to business customers upon successful registration.
Available from stock
Product number:
8125
Description

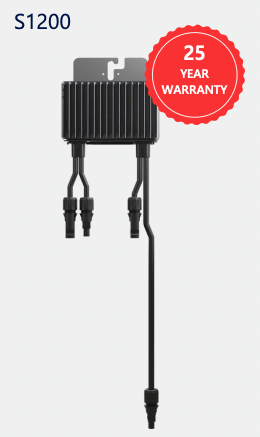

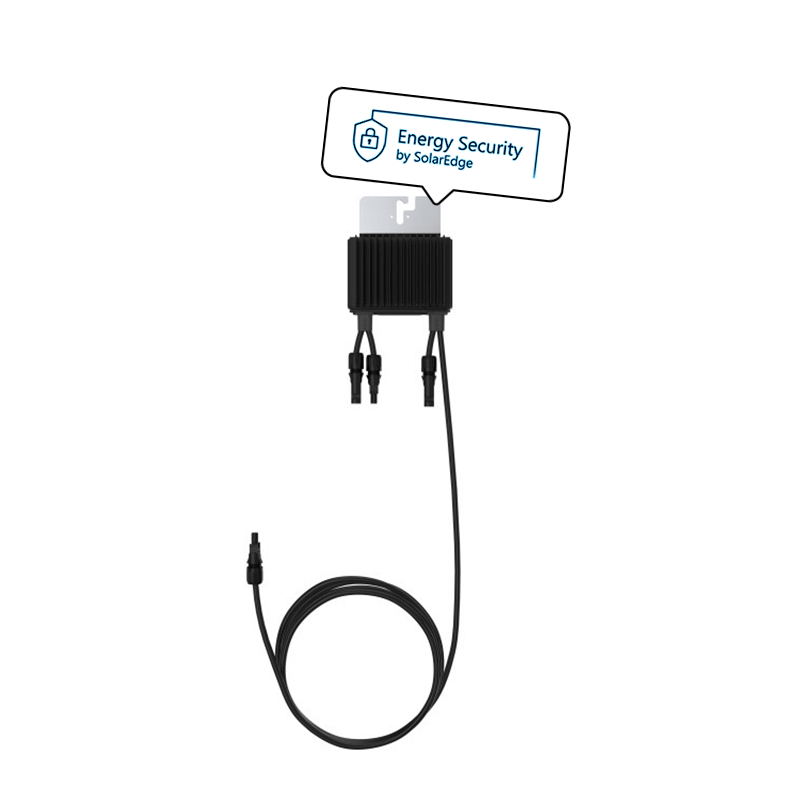

Perfect for commercial systems! The SolarEdge optimizer S1200-1GM4MBV for two PV modules.
The S1200 optimizer is designed for two modules, so the required amount of optimizers is halved for large PV systems. The S optimizers come with "sense connect" technology for even more security. It monitors temperatures in cables and connectors and warns of abnormal behavior before arcing occurs. The S1200 allows modules with up to 600 W to be used.
Product advantages:
- "Sense connect" technology
- For up to two 600 W modules
- Arc detection
- Original MC4 plug
Product features:
- Weight: 1106 g
- Dimensions: 129 x 155 x 59 mm
- Cable length: Input cable 0.1 m / Output cable (+) 5.3 m (-) 0.10 m
- Short circuit current:
- MPPT voltage: 12.5 – 105 Vdc
- Maximum short circuit current (Isc) 15 Adc
- Maximum power 1200 W (modules with a power tolerance of up to +5% are permitted)
