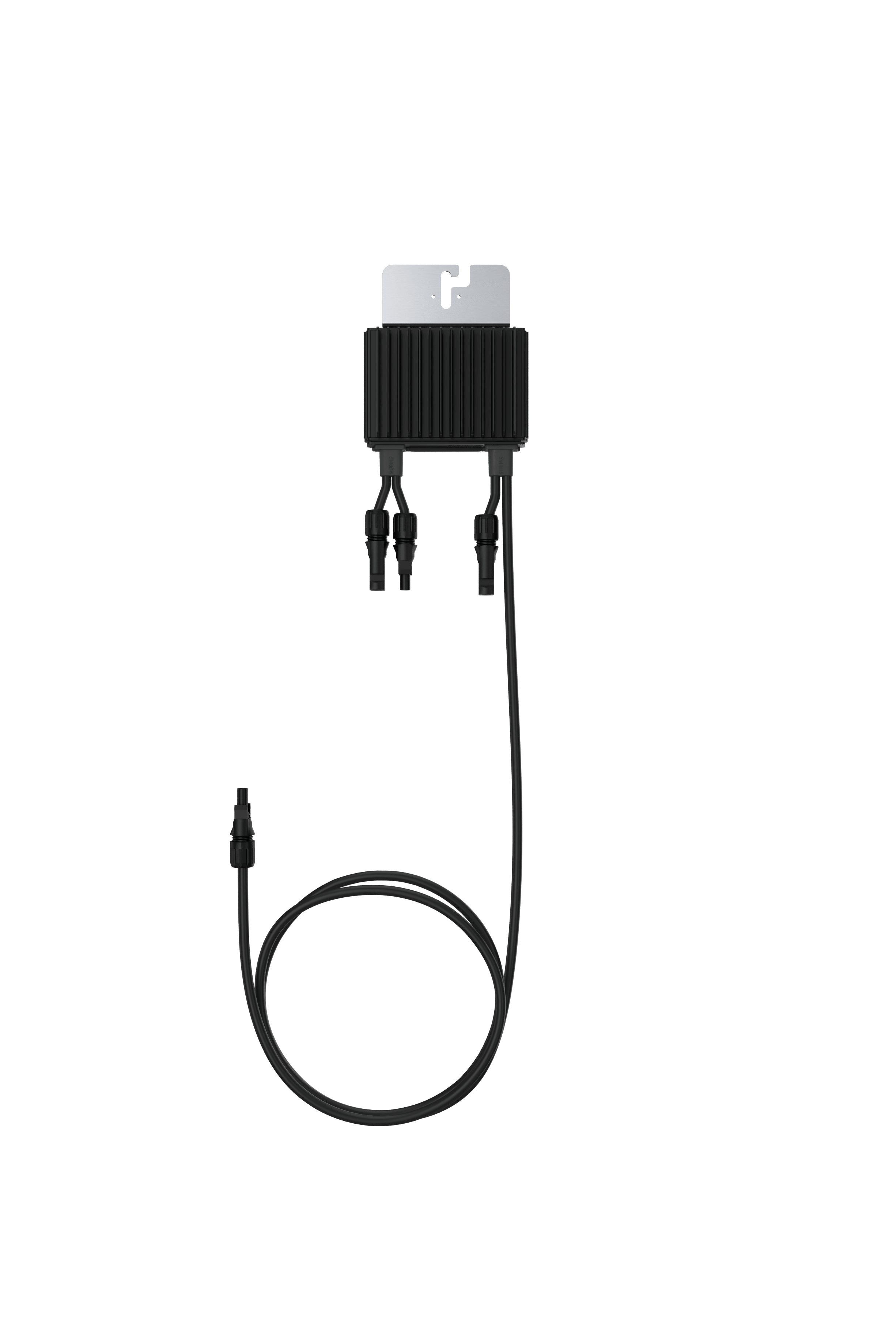

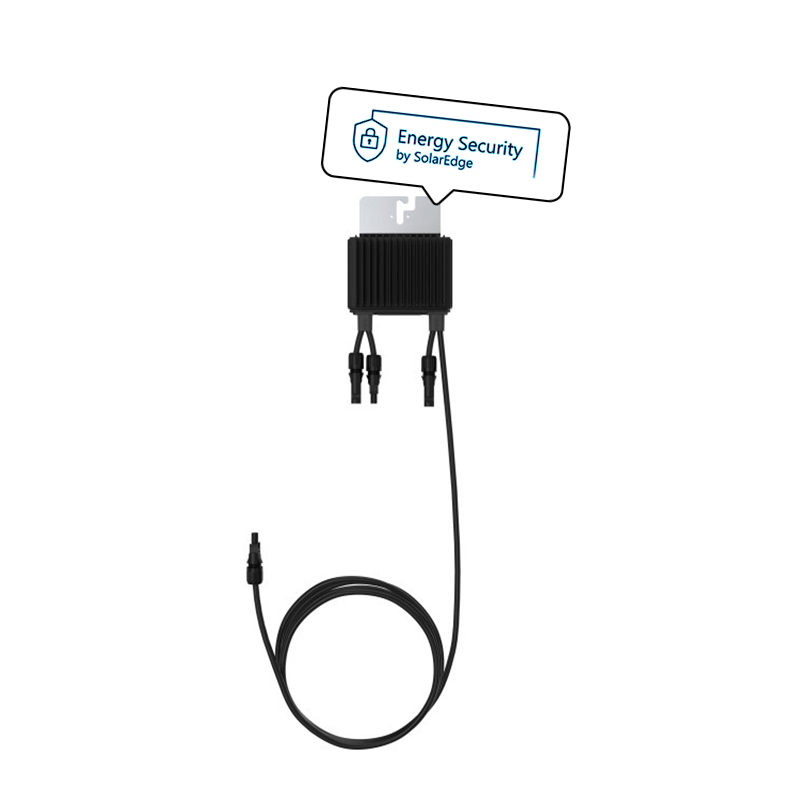

SolarEdge S650A-1DM4MBMU optimiser
| Manufacturer Art. No.: | S650A-1DM4MBMU |
|---|---|
| Art. Nr.: | 16352 |
| Pieces per package unit: |
|
| Inverter type: | Optimizer |
| Warranty: | 25 years |
| Communication: | Powerline, Kabel: 0.1 m/(+) 2.3, (-) 0.10 m |
| MPP voltage range: | 12,5 - 85 Volt |
SolarEdge S650A power optimiser for solar panels up to 650 watts with high voltages and/or shorter strings
The next generation of SolarEdge optimisers.
With SolarEdge power optimisers, you can get the maximum output from any PV system. The SolarEdge S650A Power Optimizer is designed for
versatile and small residential roofs and reduces the number of power optimizers required per string for SolarEdge Home Hub/Wave Inverters – three-phase, supporting 10 modules (instead of 14 as with other power optimizers)*
.*It is not permitted to mix S650A Power Optimizers with other Power Optimizers on the same Inverter.
The S650A is only compatible with:
- SolarEdge Home Hub Inverter – three-phase (SExxK-RWB48BFN4) from firmware version 4.22.XX and higher.
- SolarEdge Home Wave inverters – three-phase (SExxK-RW0TEBxN4 or SExxK-BE0TEBxN4) from firmware version 4.22.XX and higher, for inverters manufactured after WW42/2020. The production date can be found in the serial number.
Advantages of SolarEdge optimisers:
- Maximum power at module level
- Not the entire string is affected by shading
- Continuous MPP tracking
- Module-level monitoring possible
- Higher output in shaded conditions and with different orientations
- Modules of different power classes can be combined without losses
- Detects abnormal behaviour of PV connectors,
preventing potential safety issues.
Features of the S650A optimiser:
- MPPT operating range 12.5–85 V
- Maximum output voltage 110 V
- Modules up to 650 W
- 15 A max. short-circuit current
- Easy installation thanks to MC4 connection
- 0.1 m input cable
- 2.3 m output cable
- SafeDC function automatically reduces the voltage to 1 volt per module in the event of a fault

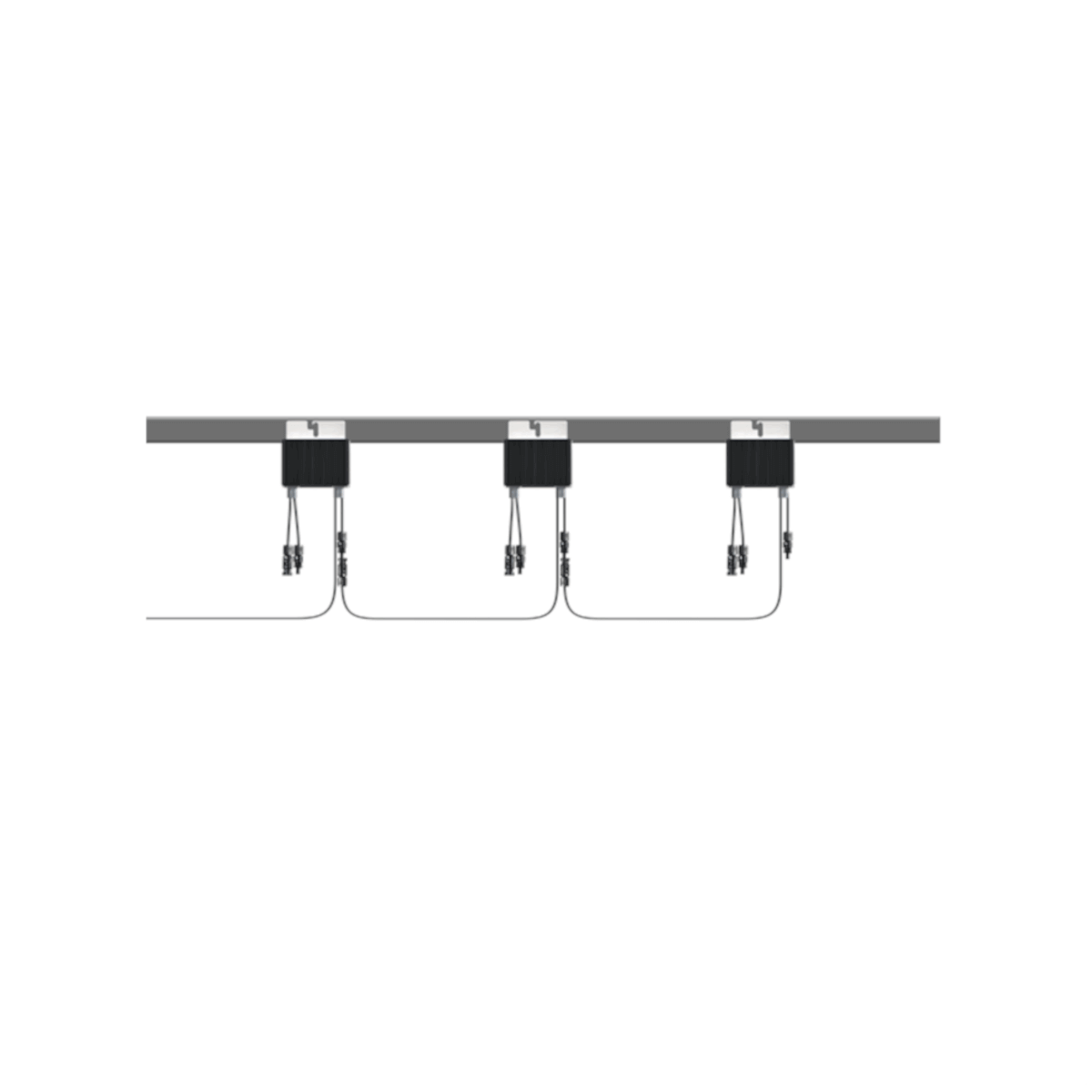

- Easy mounting on the mounting system using a hammer-head screw
- Min. 10 optimisers per string for 3-phase Inverters
- Min. 10 optimisers per string for 3-phase Inverters and 277/480 V grid
Power losses across an entire string due to shading or varying orientations are a thing of the past with SolarEdge power optimisers. Thanks to module-level MPP tracking, each module is controlled individually, enabling the string to deliver the maximum available power. Simple installation and maximum yield are easily achieved with the S650A optimisers.
-
